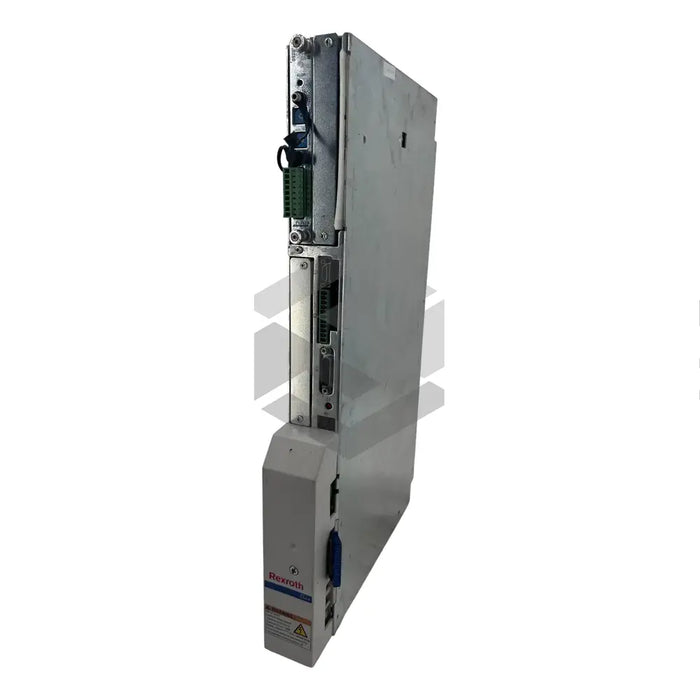

C image of HDS02.2-W040N-HS12-01-FW | Main (Front Left)

HDS02.2-W040N-HS12-01-FW

by Bosch Rexroth Indramat
$3,207.35 - $19,986.12
$3,207.35
$3,207.35 - $19,986.12
$3,207.35

In Stock, Ships 1 - 3 Days

The HDS02.2-W040N-HS12-01-FW is a module from the esteemed HDS line of DIAX04 drives by the German-American technology firm, Rexroth Indramat Bosch. This versatile drive, with additional software modules, is compatible with both rotary and linear motors. The 6.5 kg base unit is situated at the top of the drive controller, with slots for plug-in modules. With a current rating of 40 amperes and a power rating of 20 watts, the drive has a built-in blower to combat its power dissipation of 125 watts. It is connected to the AC motor through power and feedback cables. Notably, it includes a SERCOS interface alongside optional modules such as digital I/O cards, interface cards for measurement systems, and specialized interface cards. Firmware for the drive is sold separately. The drive controller boasts class C insulation and IP10 protection.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Type

Rexroth Indramat Bosch HDS02.2-W040N-HS12-01-FW Drive

Weight

6.5 kg

Current Rating

40 amperes

Power Rating

20 watts

Power Dissipation

125 watts

Cooling System

Built-in blower

Interface

SERCOS interface for command and communication module

Software

HSM software for firmware and parameter storage

Additional Plug-In Modules

Digital I/O cards, interface cards for numerous measuring systems, integrated control and special-purpose interface cards

Insultation Class

Class C

Protection Class

IP10
