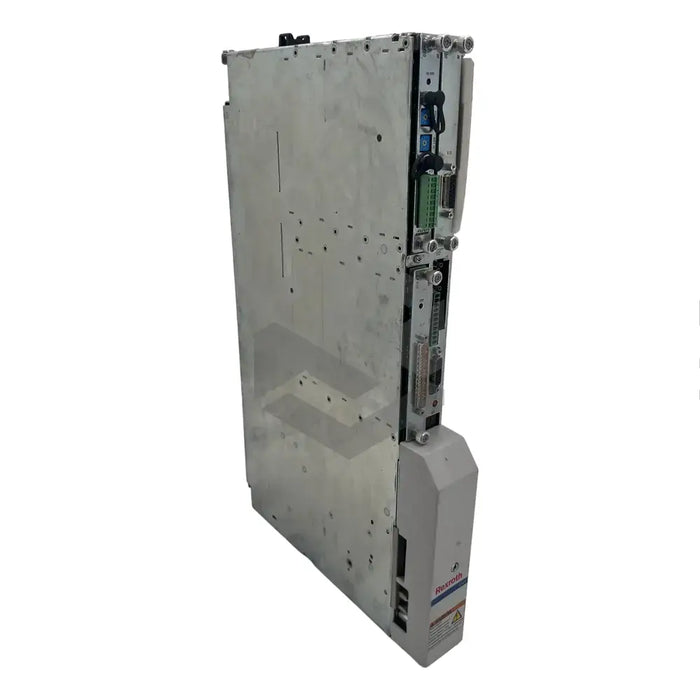

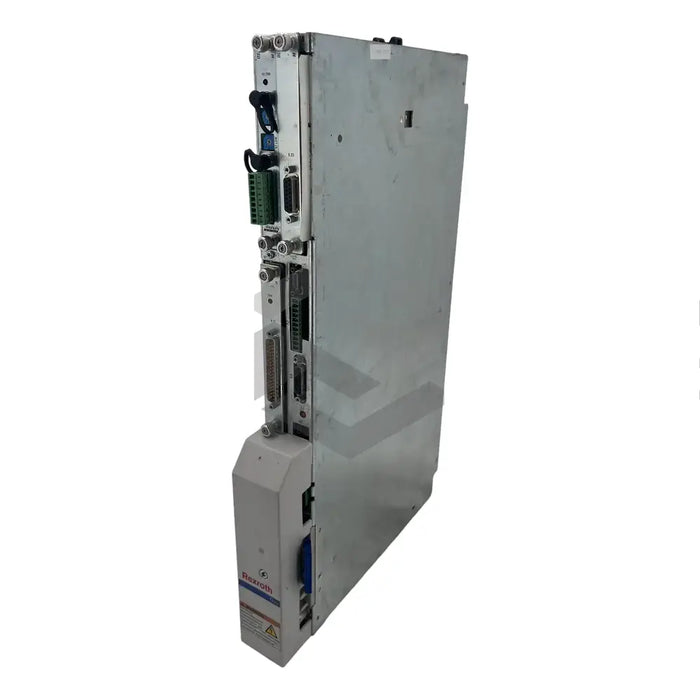

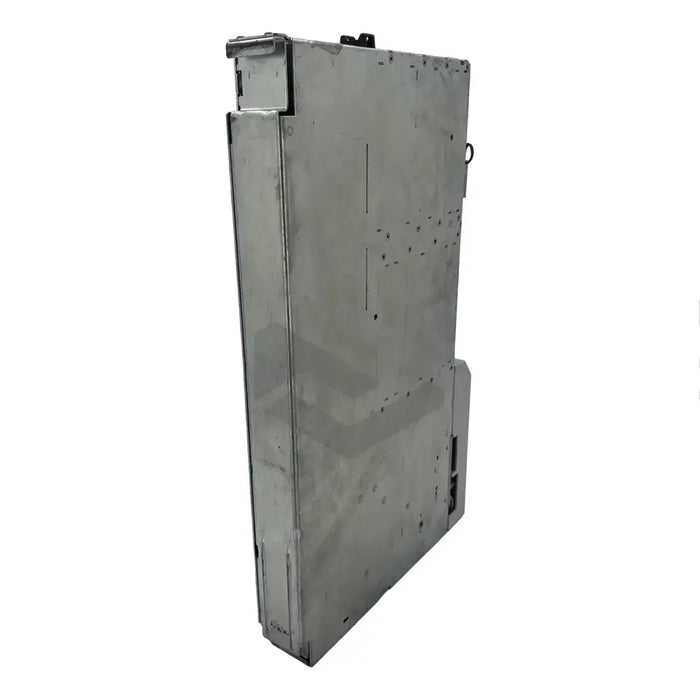

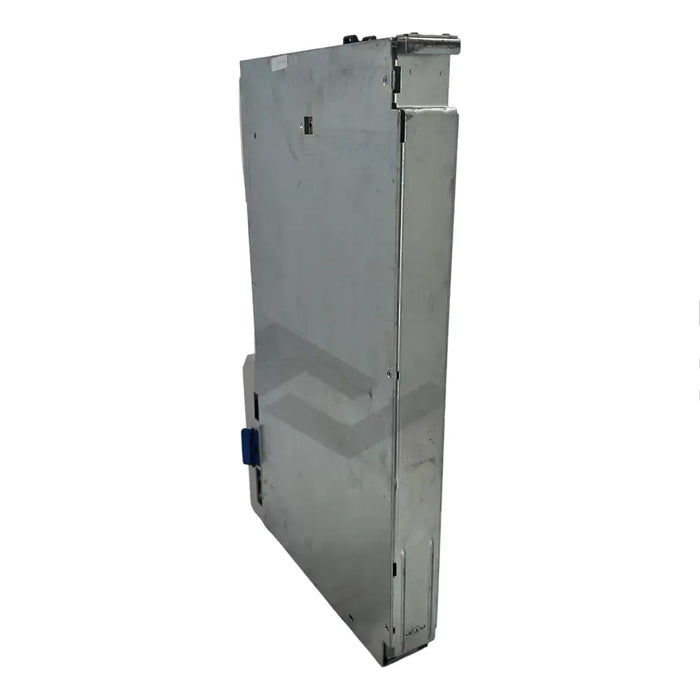

series image of HDS02.2-W040N-HS33-01-FW

HDS02.2-W040N-HS33-01-FW

by Bosch Rexroth Indramat
$4,497.75 - $4,497.75
$4,497.75
$4,497.75 - $4,497.75
$4,497.75
Available, Shipping Varies
The HDS02.2-W040N-HS33-01-FW, a product of Bosch Rexroth Indramat, is a flexible, multi-purpose digital drive controller from the DIAX04 Drives series. It's designed to consolidate multiple drives and devices, addressing issues like data duplication, power consumption, and control. The controller features an IP10 housing that houses the basic drive unit, HDS02.2-W040N, holding four slots: one for a command and communication module, other three for additional modules, and one for a HSM software that stores drive parameters. It also features a connecting port for the motor's feedback unit and a power supply port for the AC motor. The controller further includes a DSS02.1M SERCOS interface for digital drives and options for various interface cards. Weighing 6.5kg, the controller operates at 40 amperes, has 125W power loss, and includes a built-in air blower. It can be mounted at elevations up to 1000 meters and functions in temperatures of 5 - 45 degrees Celsius.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Drive Controller
  • Product Line: DIAX04 Drives
  • Product Model: HDS02.2-W040N-HS33-01-FW
  • Housing: IP10
  • Slots: 4 (1 for command and communication module, 3 for additional modules)
  • Additional Slot: 1 (For HSM type software)
  • Command and Communication Module: Type DSS02.1M SERCOS interface
  • Additional Module Options: Measuring system tools, integrated controls, position monitoring, feedback
  • Motor Connection: Supply cable and feedback cable
  • Weight: 6.5 kilograms
  • Current Rating: 40 amperes
  • Power loss: 125 watts
  • Cooling: Built-in air blower
  • Installation Height: Up to 1000 meters above sea level
  • Operating Temperature: 5 - 45 degrees Celsius
