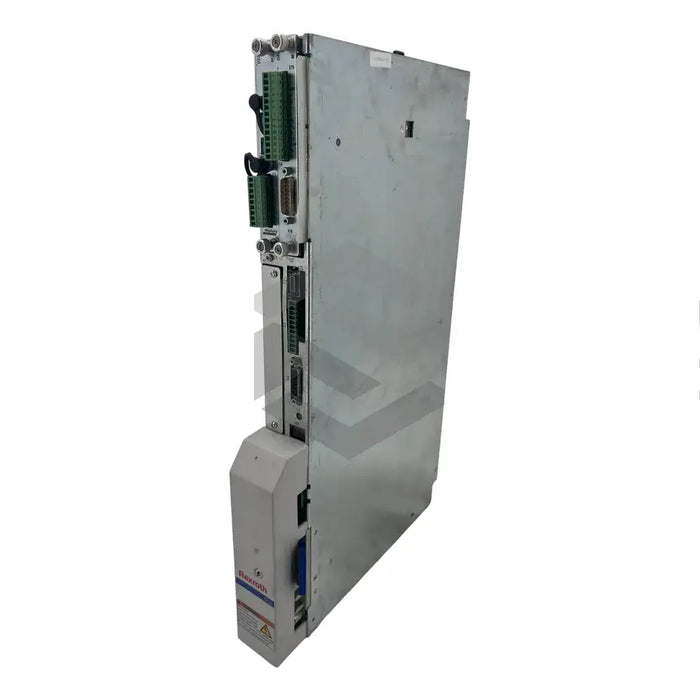

product Main (Front Left) image of HDS02.2-W040N-HS56-01-FW

HDS02.2-W040N-HS56-01-FW

by Bosch Rexroth Indramat
$16,333.83 - $16,333.83
$16,333.83
$16,333.83 - $16,333.83
$16,333.83
Available, Shipping Varies
The HDS02.2-W040N-HS56-01-FW, a product of Bosch Rexroth Indramat, is a high-quality, rapid response drive controller. It is suitable for functions such as main and servo drives in machinery for textiles, packaging, printing, as well as robotics and handling. The controller has a built-in air-cooling system with blower for temperature regulation and safety. It belongs to the DIAX04 Controller Family, has a version 2 hardware and software and uses a SERCOS interface for command communication. The rated and peak currents are both at 40 Amperes, with maximum continuous currents of 20 Amperes and 15 Amperes at 4 kHz and 8 kHz respectively, and dissipates 125W of power. This 6.5 kg drive controller operates within a temperature range of 5 to 45 degrees Celsius. For storage and transport, the temperature window is from -30 to 85 degrees Celsius. The software module denoted by 'FW', contains the firmware and all necessary parameters of the drive, which is configuration-specific.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controllers
  • Model Number: HDS02.2-W040N-HS56-01-FW
  • Cooling System: Internal Air-Cooling System with built-in blower
  • Controller Line: 2
  • Controller Version: 2
  • Controller Family: DIAX04
  • Command Communication: SERCOS Interface
  • Function ID Code: 56
  • Function ID Version: 1
  • Rated Current: 40 Amperes
  • Peak Current: 40 Amperes
  • Maximum Continuous current: 20 Amperes at 4kHz, 15 Amperes at 8kHz
  • Power Dissipation: 125 W
  • Weight: 6.5 kg
  • Operating Temperature Range: 5 to 45 degrees Celsius
  • Maximum Temperature: 55 degrees Celsius
  • Storage and Transport Temperature Range: -30 to 85 degrees Celsius
  • Casing Degree of Protection: IP10
  • Maximum Installation Altitude: 1000 meters above sea level
  • Firmware module: Separate subitem, contains drive's operating software and parameter storage
  • Firmware: Configured based on selected configuration and functions.
