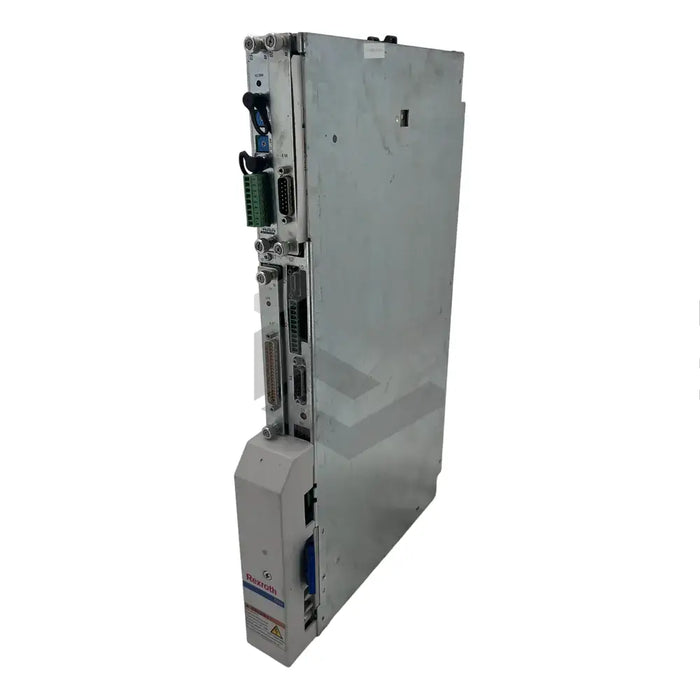

C image of HDS02.2-W040N-HS80-01-FW | Main (Front Left)

HDS02.2-W040N-HS80-01-FW

by Bosch Rexroth Indramat
$3,742.68 - $18,919.59
$3,742.68
$3,742.68 - $18,919.59
$3,742.68

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat HDS02.2-W040N-HS80-01-FW is a compact, modularly-designed servo drive controller compatible with 2AD, 1MB, MHD, and MKD AC motors d and suited for use in robotics and machine tools. Belonging to the HDS series and the DIAX04 controller family, it requires connection to HVR or HVE supply modules for power and signal voltages, and potentially an HZK capacitor module for frequent start-stop cycles. It features four slots for plug-in modules and an inbuilt blower for internal cooling. The HSM software module contains the device's firmware and drives parameters storage. This 40A-rated device comes with determined load factors for usage beyond the rated data range. The unit should be installed in a closed housing or control cabinet, as per EN 50175/1988 specifications. Its packaging includes a barcode for identification.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Drive Controller

Model

HDS02.2-W040N-HS80-01-FW

Compatibility

2AD, 1MB, MHD, MKD AC Motors

Application

Robotics, Machine Tools

Series

HDS

Line Code and Version Code

2

Power Supply Requirement

HVR or HVE Supply Module

Additional Requirement

HZK Capacitor Module for Frequent Start-Stop Cycles

Rated Current

40A

Cooling Method

Internal Air Circulation with Inbuilt Blower

Design

Modular Design

Software Module

HSM for Firmware and Drive Parameters Storage

Controller Family

DIAX04

Module Slots

U1 to U4

Features

Configuration Type Plate for Replacement Parts Identification

Installation Requirement

Closed Housing or Control Cabinet as per EN 50175/1988 Specifications

Identification

Barcode on Packaging, Type Plates on Unit and Configured Version
