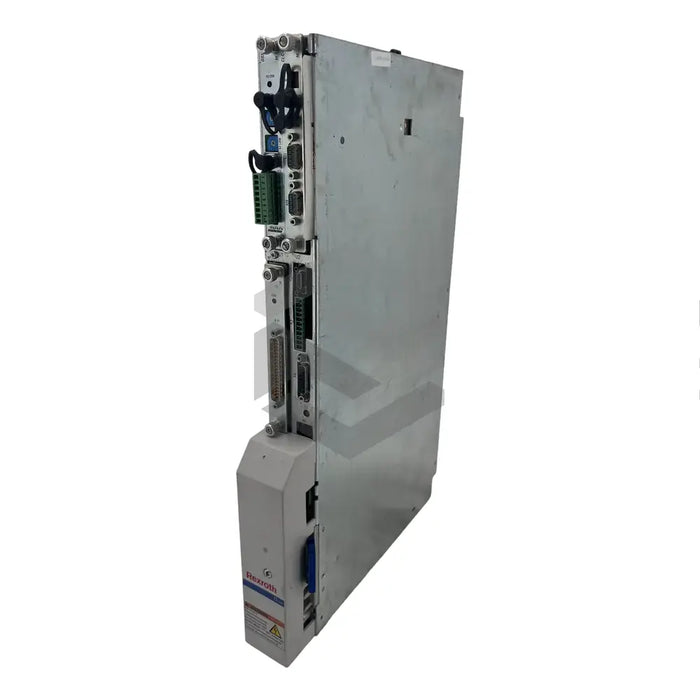

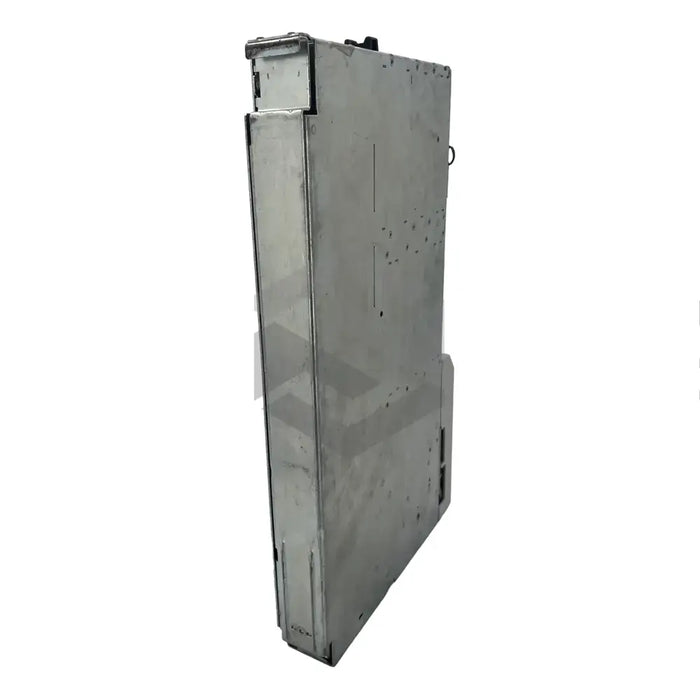

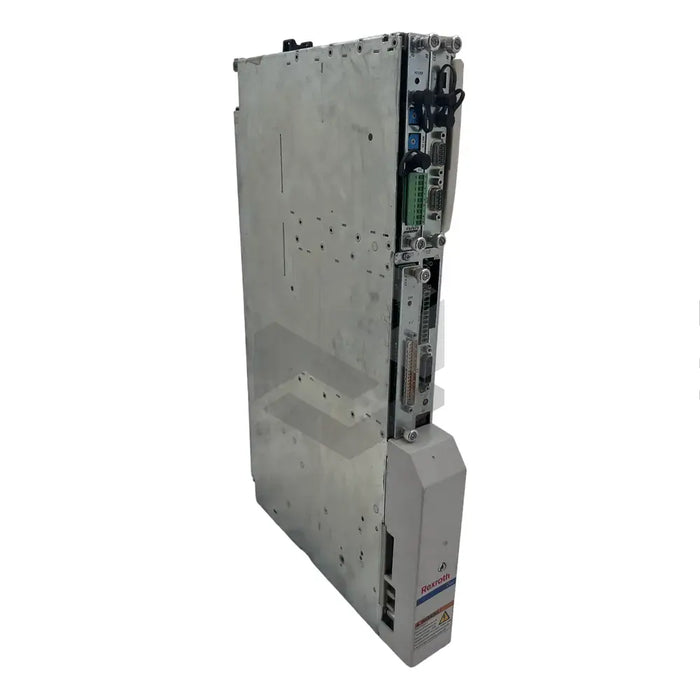

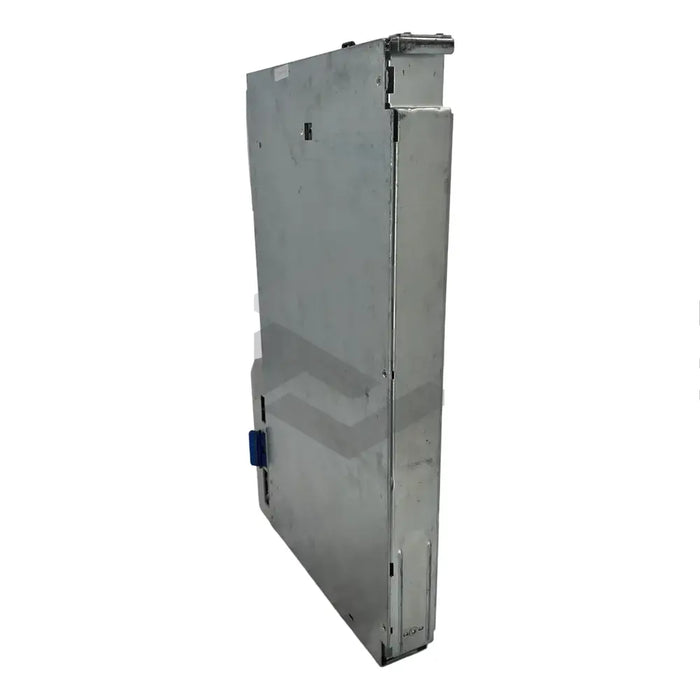

HDS02.2-W040N-HT25-01-FW

Request a quote
The HDS02.2-W040N-HT25-01-FW, a drive controller manufactured by Bosch Rexroth Indramat, is part of their extensive HDS series. This controller features internal air circulation via an integrated blower for cooling, copper conductor connections, and a maximum operating temperature of 55°C. Due to potentially dangerous movements from incorrect or faulty wiring, it is critical that the protective conductor is connected before startup. The controller, whose components become hot in use, must be installed as per the provided guidelines. Primarily designed for electrical motor control, it can also interact with extra actuators and sensors. It requires programming prior to startup for application-specific functions. Belonging to the DIAX04 family, this multi-purpose controller can be utilized in single and multi-axis applications, and is ideal for handling and mounting systems. In its configured state, it comprises a software module, a command communications module, a configuration type plate, and optional plug-in modules, all of which should never be submerged underwater. An efficient delivery network ensures product availability.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: HDS Series
  • Cooling Mechanism: Internal Air Circulation via Inbuilt Blower
  • Conductor Requirement: Copper Conductor of Minimum 10mm2 Cross-Section
  • Maximum Operating Temperature: 55°C with Derated Data
  • Use: Monitor and Control Electrical Motors
  • Additional Features: Supports Additional Actuators and Sensors
  • Programming Requirement: Must Be Programmed Before Start-Up
  • Usage Flexibility: Single-Axis and Multiple-Axis Control and Drive Applications
  • Installation Specifications: Must Follow Regulations in Documentation
  • Product Structure: Modular, Not Operatable Underwater, Slots U1 to U4 for Extra Plug-In Modules
  • Software Module: Includes Firmware or Operating Software of the Drive
  • Ideal Use Cases: Handling and Mounting Systems
  • State for Operation: Not Damaged
  • Delivery: Via Reliable Delivery Network
