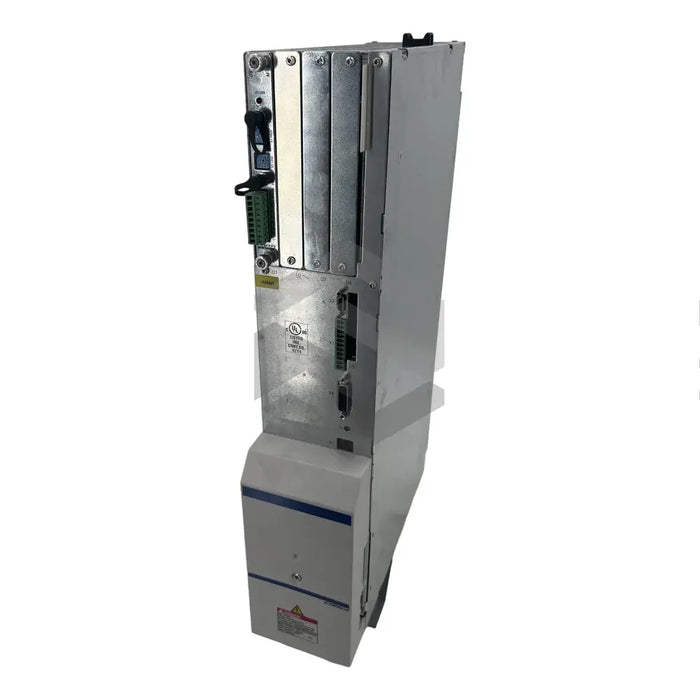

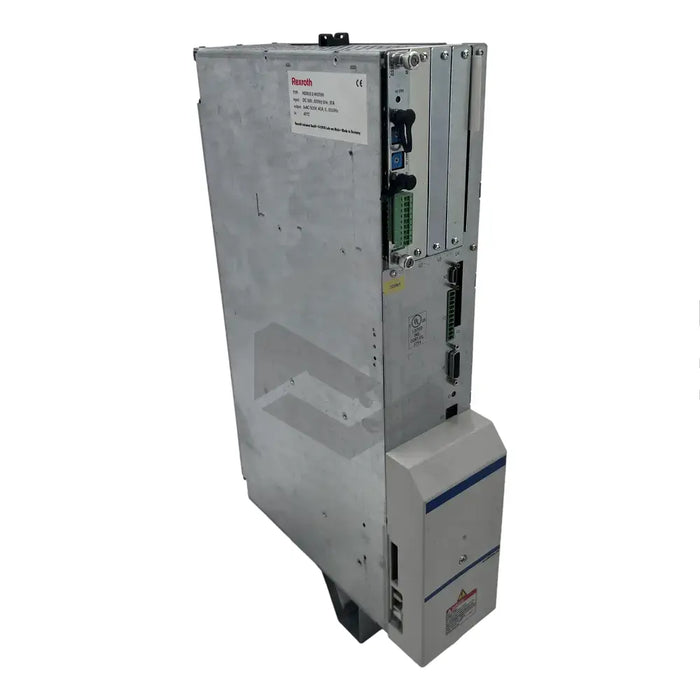

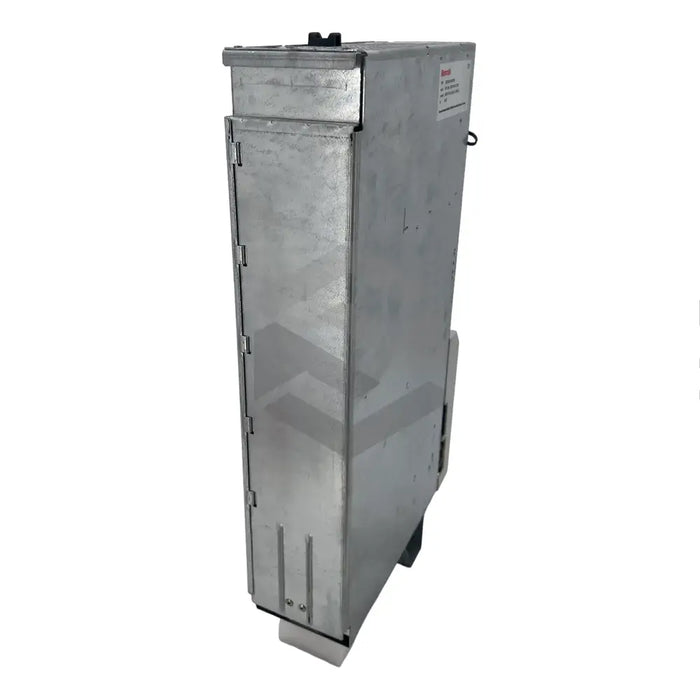

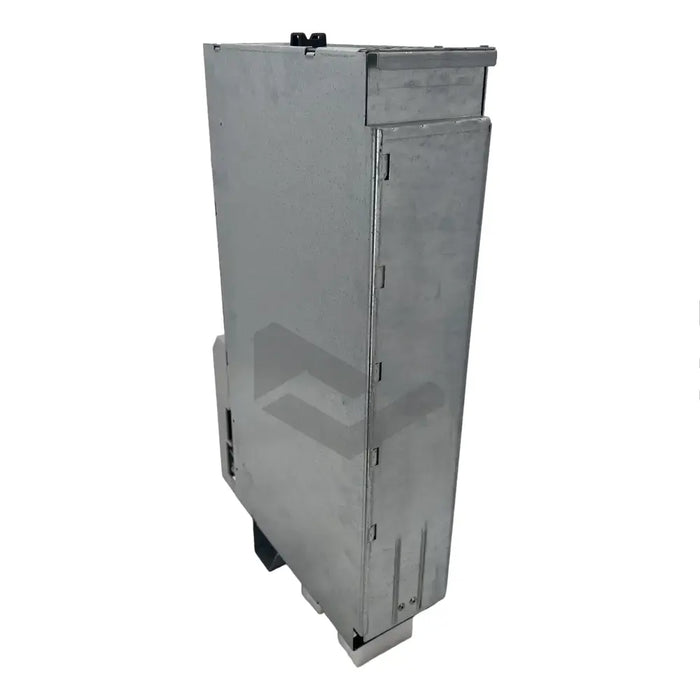

HDS03.1-W075N-HS12-01-FW

Original price $4,370.35 - Original price $4,370.35
Original price
$4,370.35
$4,370.35 - $4,370.35
Current price $4,370.35

In Stock, Ships 1 - 3 Days

The HDS03.1-W075N-HS12-01-FW is a drive controller part of the HDS Drive Controllers series by Bosch Rexroth Indramat. Suitable for various industries, including robotics and packaging, it's used as main drives or servos, compatible with 1MB, 2AD, MHD, and MKD motors. With a rated and peak current of 75 Amperes, and a maximum continuous current of 40 Amperes at 4 kHz, its power dissipation is 220 W at these levels. It features air internal cooling with a built-in blower, maintaining safe operating temperature range. The unit weighs 11 kg, uses IP10 casing, tolerates between 5 to 45 degrees Celsius operating temperatures, and has an acceptable storage temperature of -30 to 85 degrees Celsius. A separately ordered firmware module is required for function execution and storage of necessary parameters.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Product


HDS03.1-W075N-HS12-01-FW

Series


HDS Drive Controllers

Suitable for


1MB motors, 2AD motors, MHD motors, MKD motors

Industry Usage


Robotics, Printing, Textile, and Packaging Industries

Rated Current


75 Amperes

Peak Current


75 Amperes

Maximum Continuous Current


40 Amperes (4 kHz), 30 Amperes (8 kHz)

Power Dissipation


220 W

Cooling Type


Air, internal (with built-in blower)

Line Number


3

Version Number


1

Function ID Code


12

Version of Function ID


1

Weight


11 kg

Casing


IP10

Altitude Installation Limit


1000 meters

Operating Temperature


5 to 45 degrees Celsius

Storage and Transportation Temperature


-30 to 85 degrees Celsius

Software Module


Ordered Separately
