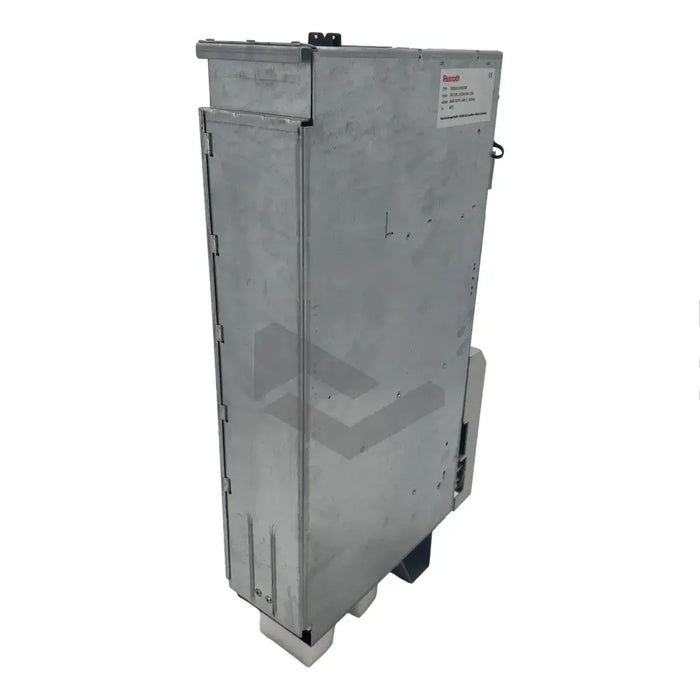

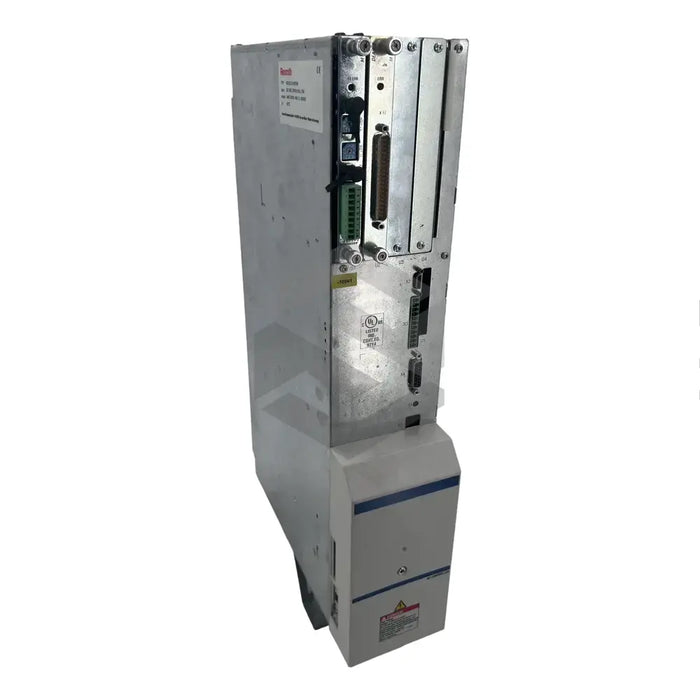

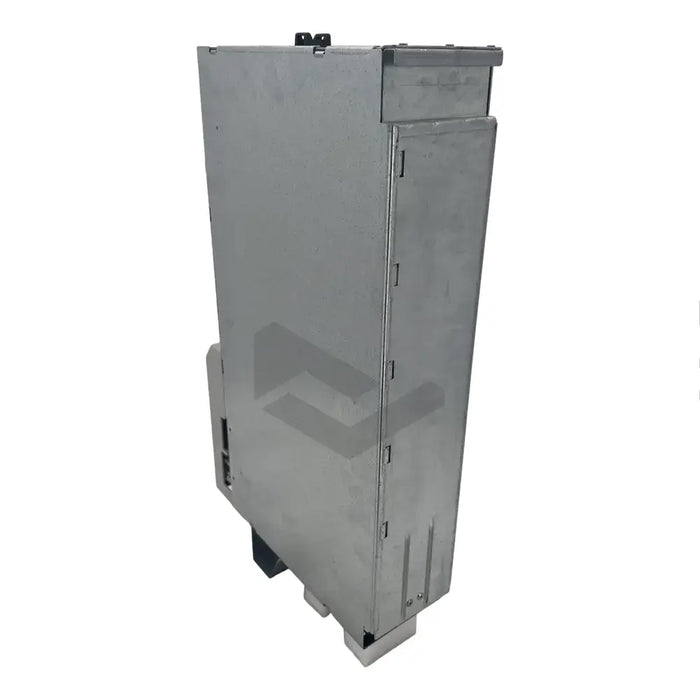

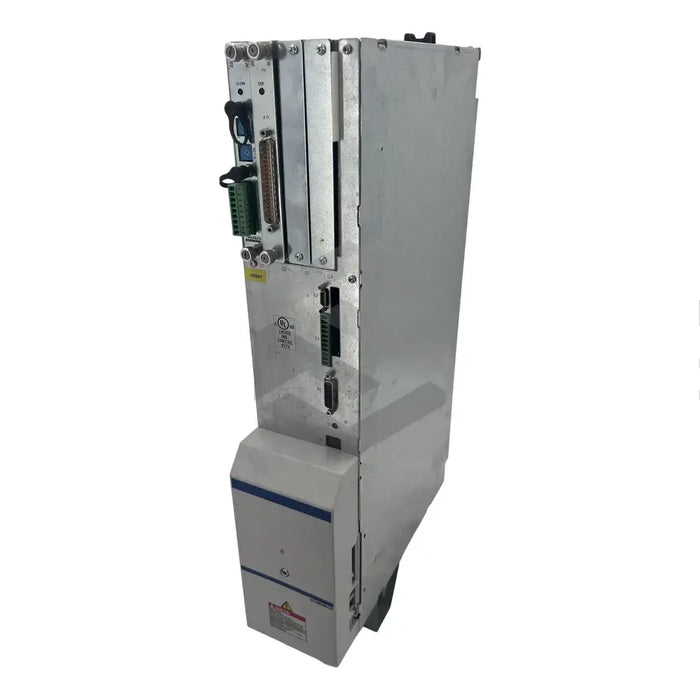

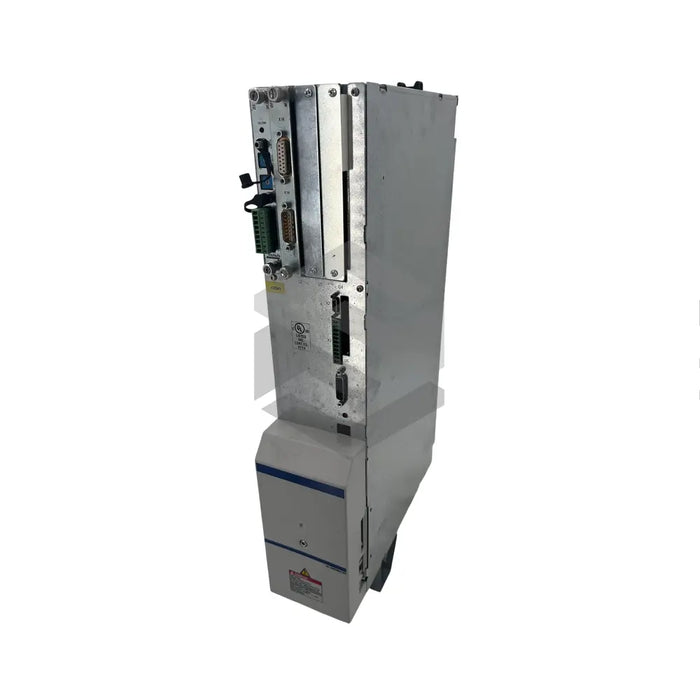

C image of HDS03.1-W075N-HS23-01-FW | Main (Front Left)

HDS03.1-W075N-HS23-01-FW

by Bosch Rexroth Indramat
$8,668.51 - $8,668.51
$8,668.51
$8,668.51 - $8,668.51
$8,668.51

In Stock, Ships 1 - 3 Days

The HDS03.1-W075N-HS23-01-FW, crafted by Bosch Rexroth Indramat, is a drive controller with custom functionality. The controller's modular structure supports a variety of plug-in modules for specific operational requirements and includes an HSM software module installed in the U5 slot of its base unit. This module is responsible for storing all drive parameters and operating software. The model has a SERCOS interface type DSS02.1M and a DEA04.2M digital interface card for optimal communication and data exchange. Slots U3 and U4 in the base unit remain unoccupied. Its ability to dissipate 220W of power, when functioning at a continuous current, is supported by an inbuilt blower maintaining optimal temperatures. Weighing in at 11 kg, it features an IP10 protection standard allowing touching by hand but not water-resistant. Designed to work with the DIAX04 drive system, it's ideal for machine tools, printing/packaging machinery, handling machines, and robots. Firmware configurations depend on specific requirements and must be ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

HDS03.1-W075N-HS23-01-FW

Structure

Modular

Controller Configuration

Configured with plug-in modules

Software Module

HSM installed in the U5 slot

Firmware

Depends on selected configurations

Electrical Connection

Through power supply module

Rated Current

75 A

System Affiliation

DIAX04 drive system

Potential Uses

Machine tools, printing and packaging machines, handling machines, and robots

Interface Type

SERCOS DSS02.1M in U1 slot

Digital Interface Card

DEA04.2M installed in U2 slot

Function ID Code

23

Function ID Version

01

Power Dissipation

220 W at continuous current

Cooling Method

Built-in blower

Net Weight

11 kg

Protection Standard

IP10
