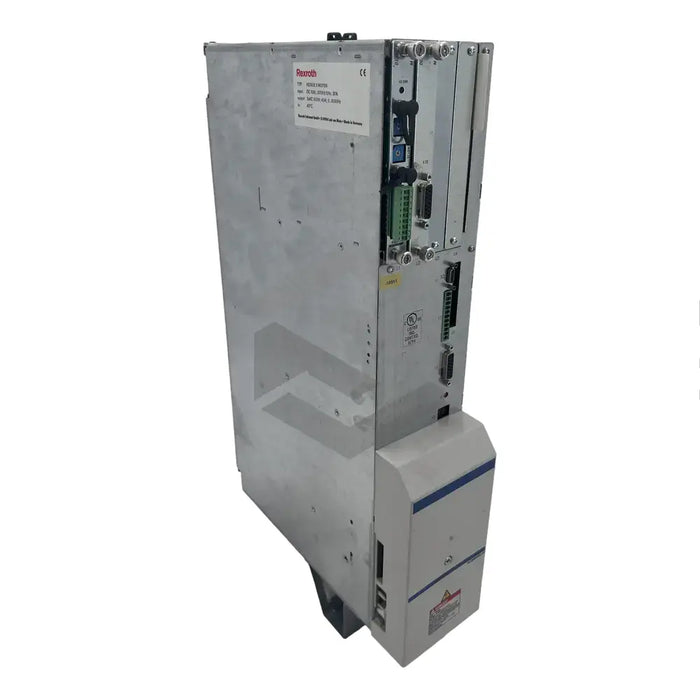

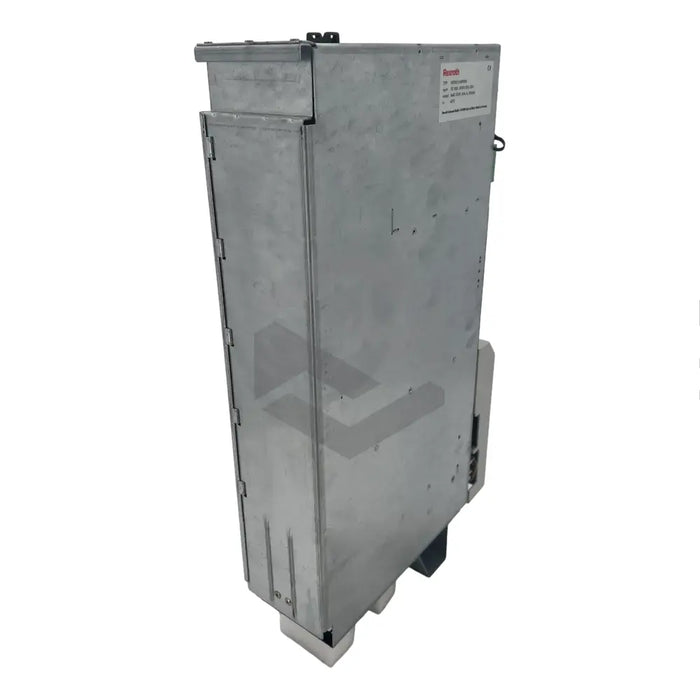

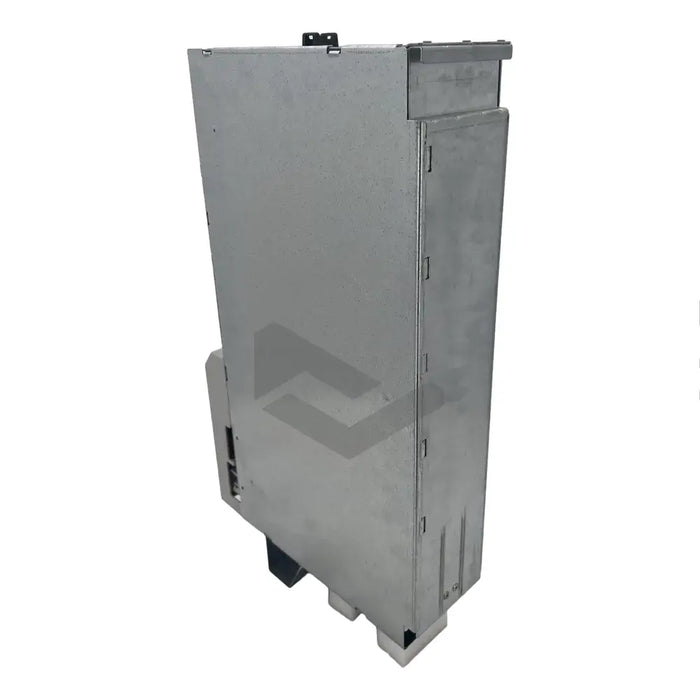

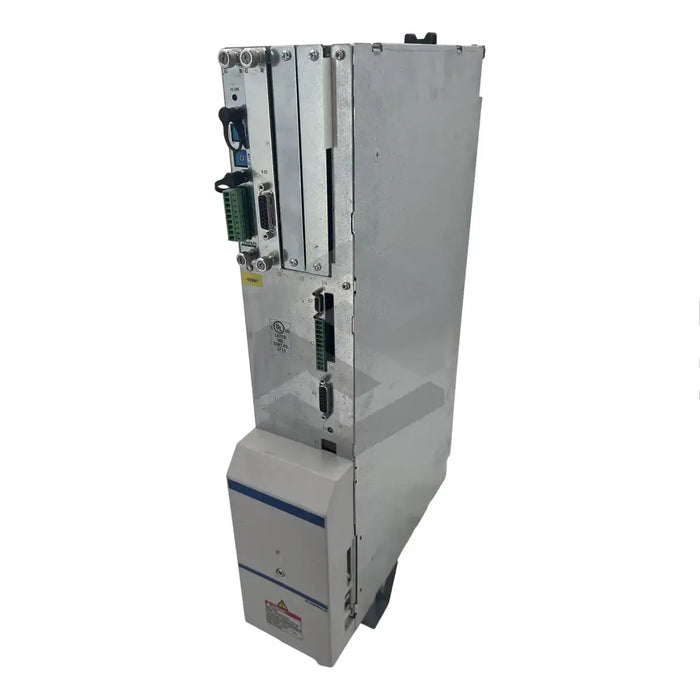

product Main (Front Left) image of HDS03.1-W075N-HS32-01-FW

HDS03.1-W075N-HS32-01-FW

by Bosch Rexroth Indramat
Request a quote
The HDS03.1-W075N-HS32-01-FW drive controller is a product of Bosch Rexroth Indramat, with a modular design and rated current of 75A. The controller has a D-sub serial interface connector for PC communication and two analog diagnostic outputs for testing, which offer a 4mA current load capacity and an output voltage of +/-10VDC. The product is equipped with a starting lock to prevent accidental motor start-up and is connected to the motor via power cables that can extend up to 75m. The controller's casing should align with EN 60204 / DIN VDE 0113 standards and be securely fastened to the cabinet's mounting panel to avoid overheating damage. It should maintain a distance of 100mm not only from the bottom but also from control and power lines. The device, with IP10 protection category as per DIN 40 050, operates optimally up to 45°C and communicates using a SERCOS interface. The function ID code is 32.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: HDS03.1-W075N-HS32-01-FW
  • Structure: Modular
  • Rated Current: 75A
  • Interface: D-sub serial interface
  • Diagnostic Outputs: Two analog, +/-10VDC and 4mA current load capacity
  • Safety Feature: Starting lock
  • Motor Connection Cable Length: 75m
  • Compliance Standards: EN 60204 / DIN VDE 0113
  • Mounting: Mounting rail, 100mm clearance required
  • Power Loss: Includes basic losses, configuration-related losses, control unit losses, current-related losses
  • Communication Interface: SERCOS
  • Operational Temperature: Up to 45°C
  • Supply Line Isolation: Metal cable duct required
  • Control and Power Line Distance: Minimum 100mm
  • Feedback Connection and Motor Cables Length: Maximum 75m
  • Function ID Code: 32
  • Protection Category: IP 10 per DIN 40 050
