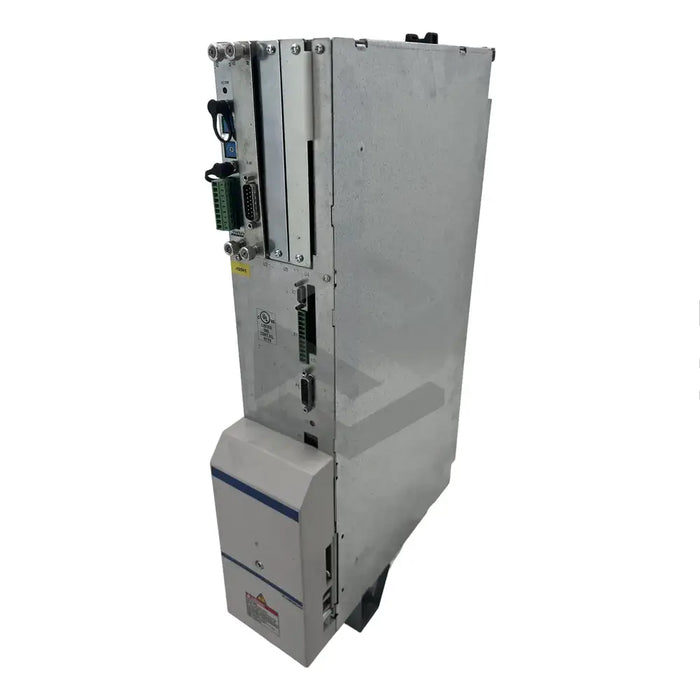

product Main (Front Left) image of HDS03.1-W075N-HS37-01-FW

HDS03.1-W075N-HS37-01-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat HDS03.1-W075N-HS37-01-FW is a high-quality, reliable drive controller making it suitable for long-term use in sectors such as textiles, printing, and robotics. This HDS drive controller, part of the DIAX04 Controller family, communicates via the SERCOS Interface and can be used as both a main and servo drive. Weighing 11kg, it utilizes internal air cooling for safe operation and delivers a rated and peak current of 75 Amperes, with the continuous current varying by the power section clock frequency. To maintain optimal function, it needs to be operated within a temperature range of 5 to 45 degrees Celsius and at an altitude not exceeding 1000 meters. Please note that its software module storing the controller's firmware and parameters must be ordered separately.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: HDS Drive Controllers
  • Model: HDS03.1-W075N-HS37-01-FW
  • Controller Family: DIAX04
  • Command Communication: SERCOS Interface
  • Line Number: 3
  • Version Number: 1
  • Function ID Code: 37
  • Function ID Version: 1
  • Weight: 11 kg
  • Cooling Type: Air, internal (with built-in blower)
  • Rated Current: 75 Amperes
  • Peak Current: 75 Amperes
  • Max Continuous Current at 4 kHz: 40 Amperes
  • Max Continuous Current at 8 kHz: 30 Amperes
  • Power Loss: 220 W
  • Operating Temperature Range: 5 to 45 degrees Celsius
  • Storage Temperature Range: -30 to 85 degrees Celsius
  • Casing: IP10
  • Max Altitude for Operation: 1000 meters
  • Software Module: Must be ordered separately
