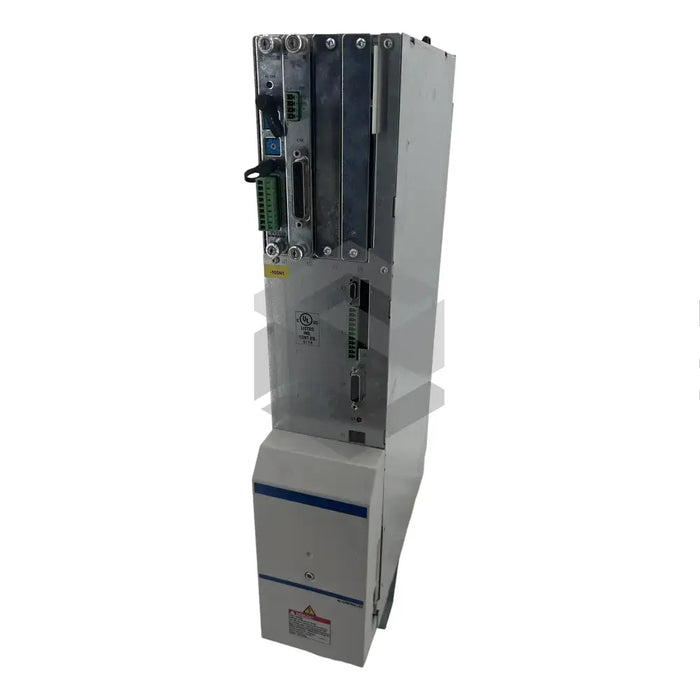

C image of HDS03.1-W075N-HS45-01-FW | Main (Front Left)

HDS03.1-W075N-HS45-01-FW

by Bosch Rexroth Indramat
$8,668.51 - $8,668.51
$8,668.51
$8,668.51 - $8,668.51
$8,668.51

In Stock, Ships 1 - 3 Days

The HDS03.1-W075N-HS45-01-FW is a rapid-response drive controller by Bosch Rexroth Indramat, engineered for monitoring and managing the operations of electrical motors. Equipped with an RS-232 interface enabling transmission length up to 15 meters and a rate of 9600/19200 baud, it also features an RS485 interface for a higher transmission length of 500 meters. Tailoring to individual application needs, it is adaptable due to its built-in communication interface, plug-in modules, and software modules. The drive draws power from a flat ribbon cable integrated into the unit. With a functional ID code version of 01 and a class C insulation category, the module weighs approximately 11 kilograms, expends 220 watts of power, and has a peak current of 75 amps. It is best suited for industries involving motion control operations, such as textile manufacturing, handling machines, printing, packaging, and robotics.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive System

Model

HDS03.1-W075N-HS45-01-FW

Main Function

Controlling and Monitoring Electric Motors

RS-232 Interface Transmission Length

15 meters

RS-232 Interface Transmission Rate

9600/19200 baud

RS485 Interface Transmission Length

500 meters

RS485 Interface Transmission Rate

9600/19200 baud

Function Id Code

45

Included Components

Command Communication Interface, Additional Plug-in Modules, Software Modules

Power Supply

Via Supply Unit via Integrated Flat Ribbon Cable

Software Package

To be Ordered Separately

Maximum Ambient Temperature

55 degrees Celsius

Maximum Elevation for Installation

1000 meters without reducing the rated value

Function Id Code Version

01

Insulation Category

Class C

Weight

11 kilograms

Power Loss

220 watts

Peak Current

75 amps

Power Consumption

25 watts

Protection Category

IP10 per DIN 40 050

Command Interface

SERCOS

Additional Components

Brake Resistor recommended for non-regenerative power systems

Usage

Suitable for motion control applications such as textile, printing, packaging machines, handling machines, and robotics.
