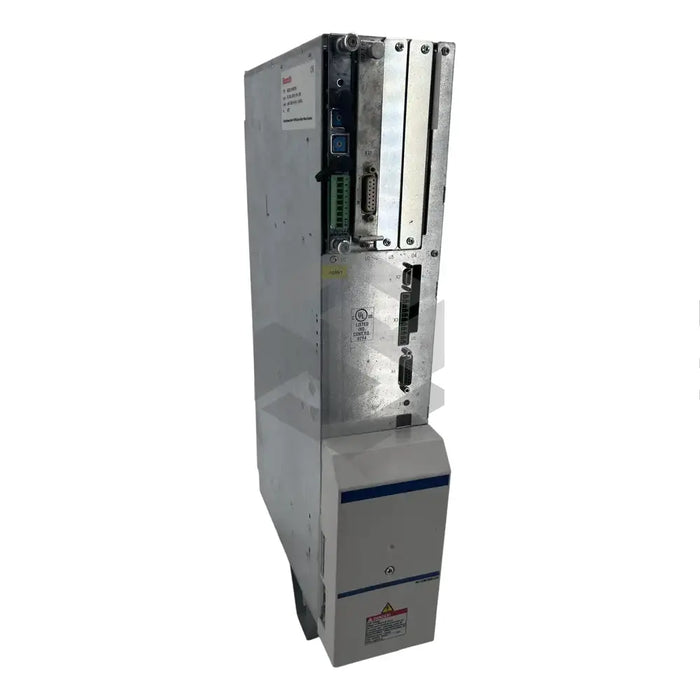

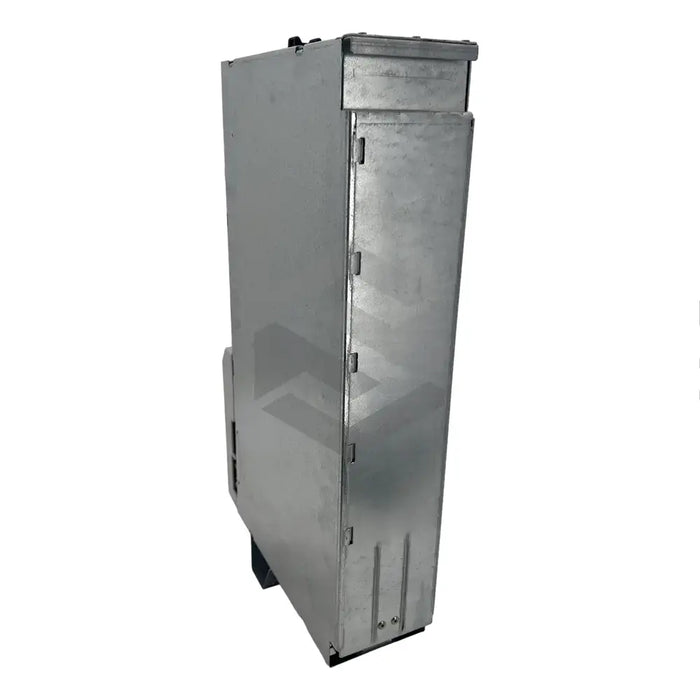

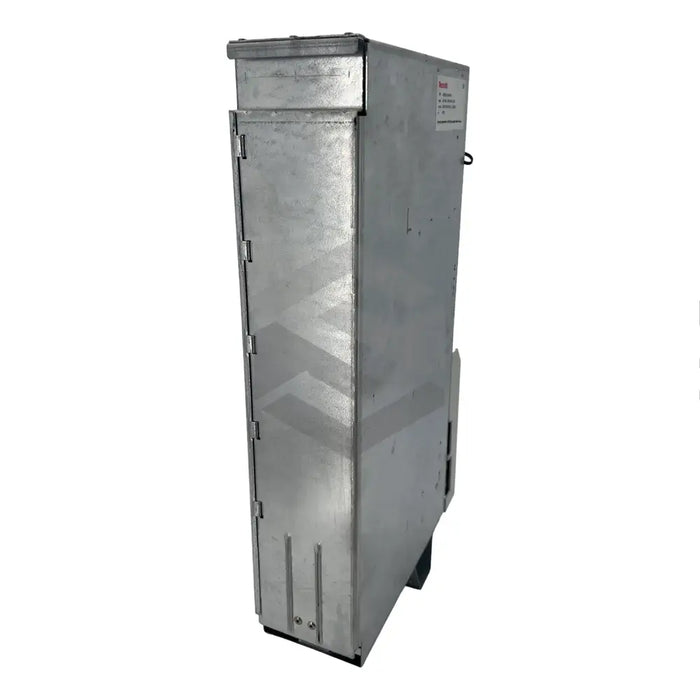

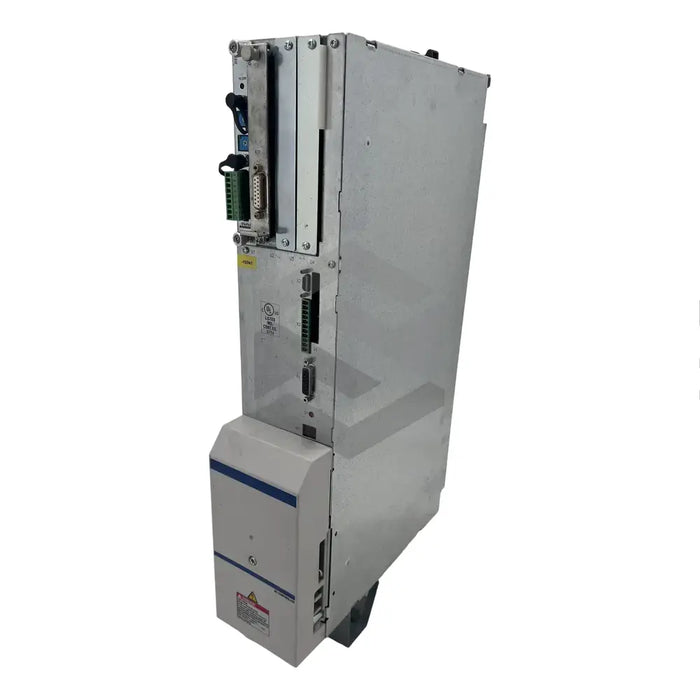

HDS03.1-W075N-HS76-01-FW

by Bosch Rexroth Indramat
Request a quote
The HDS03.1-W075N-HS76-01-FW, manufactured by Bosch Rexroth Indramat, is an intelligent digital drive system. Featuring a compact and modular design, it provides a peak current of 75 Amps, power loss of 220 Watts, and power consumption of 25 Watts while weighing approximately 11 kilograms. The drive system operates within an ambient temperature range of 5 to 45 degrees Celsius and can be used with HVE and HVR supply modules. The system's firmware needs to be ordered separately. The drive controller, part of the HDS product series, is designed to fit into a closed housing and includes interfaces such as RS232/RS485, and connectors for motor feedback, DC bus, and grounding. It enables two motors to be activated concurrently with its fixed drive controller configuration. Additional components include a command communication module, software module, plug-in modules, and a configuration type plate. An extra capacitor module is advisable for high start-stop cycles.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: HDS03.1-W075N-HS76-01-FW
  • Drive Type: Digital intelligent drive system
  • Peak Current: 75 Amps
  • Power Loss: 220 Watts
  • Power Consumption: 25 Watts
  • Approximate Weight: 11 kilograms
  • Ambient Temperature Range: 5 to 45 degrees Celsius
  • Continuous Current at 4kHz: 40 Amps
  • Continuous Current at 8kHz: 30 Amps
  • Design Type: Compact and Modular
  • Compatible Supply Modules: HVE and HVR
  • Product Group: HDS
  • Mounting Standards: EN 50175/1988
  • Interface Connectors: RS232/RS485, motor feedback, motor temperature monitoring, DC bus, ground connectors
  • Command Communication Interface: SERCOS
  • Motor Activation Capability: Two motors with fixed drive controller configuration
  • Additional Components: Command communication module, software module, plug-in modules, configuration type plate
  • Rated Current: 75 Amps
  • Special Features: Additional capacitor module recommended for high start-stop cycles, connector X1 for power to control electronics
  • Application: Specific-use design.
