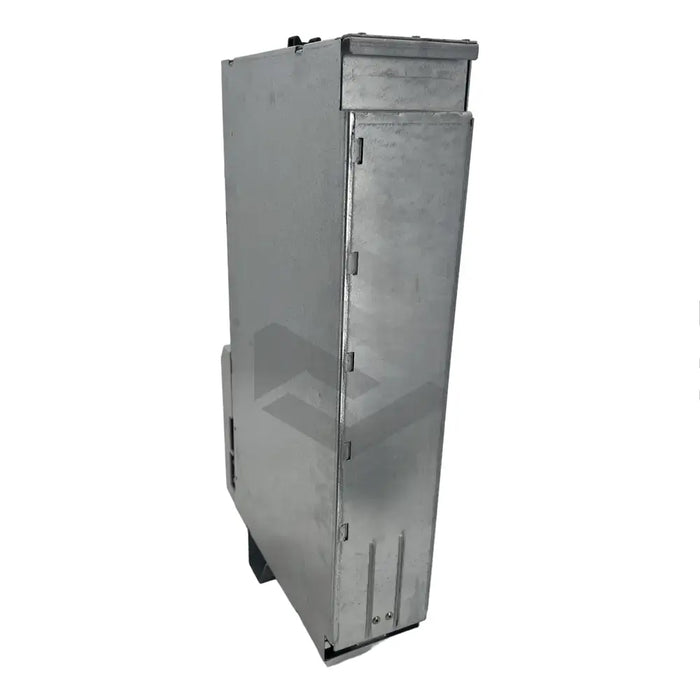

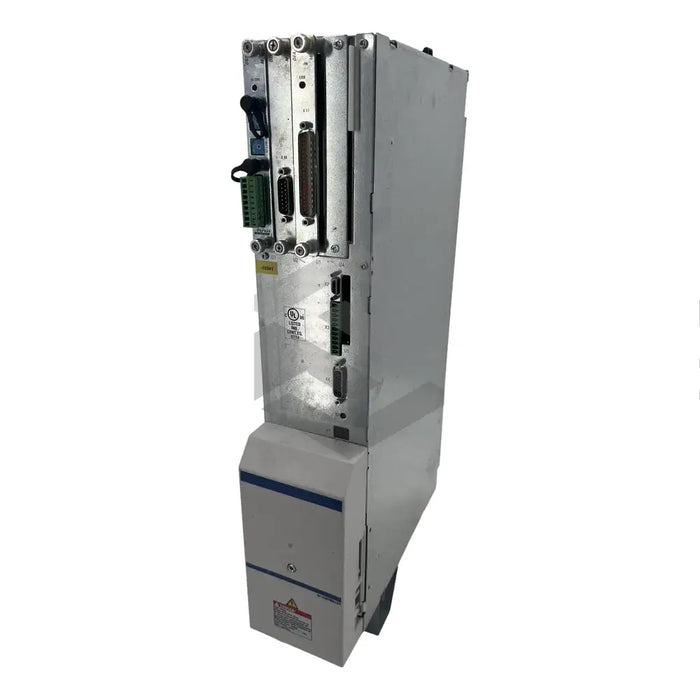

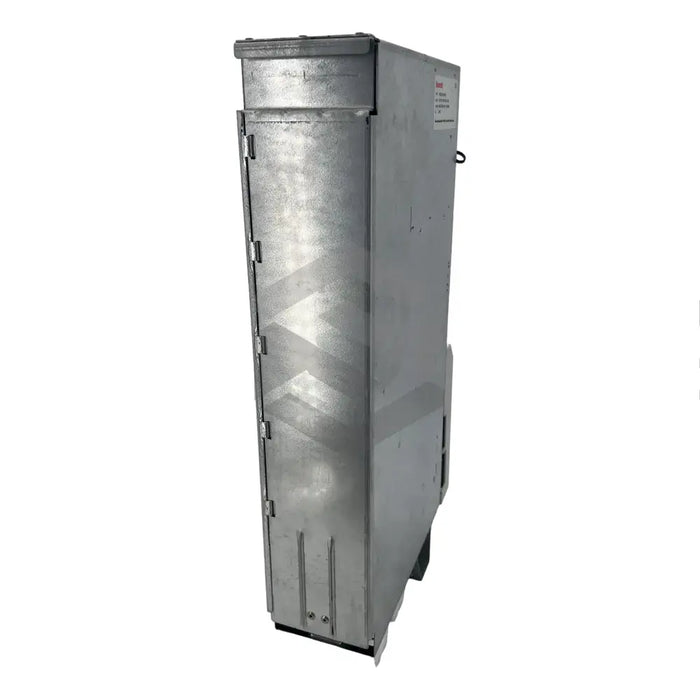

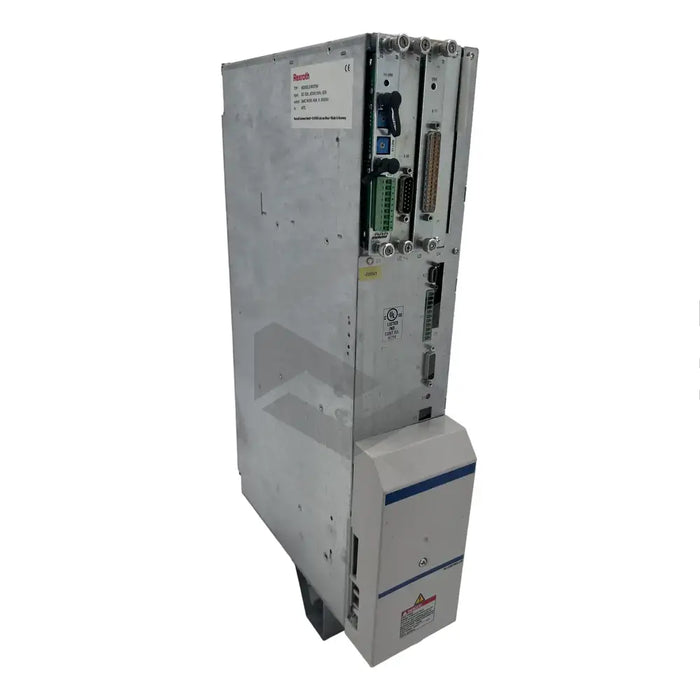

C image of HDS03.1-W075N-HS80-01-FW | Main (Front Left)

HDS03.1-W075N-HS80-01-FW

by Bosch Rexroth Indramat
$8,668.51 - $8,668.51
$8,668.51
$8,668.51 - $8,668.51
$8,668.51

In Stock, Ships 1 - 3 Days

The HDS03.1-W075N-HS80-01-FW is a second-generation drive controller from Bosch Rexroth Indramat's HDS series, designed for controlling and monitoring servo motors. With a power loss of 220 Watts and a consumption of 25 Watts, it delivers a peak current of 75 amps. Weighing 11 kg, it is compatible with HVR and HVE supply modules and has screw-type terminals. Its storage and transport temperature range spans from -30 to 85 degrees Celsius. As a part of the HDS03 product line, it meets the EN 60 529 standards' IP 10 protection ratings. The module has a preset configuration to activate two motors and includes a built-in blower for internal heat dissipation. It can be customized according to application requirements and is suitable for both single and multi-axis drive and control applications. For component identification, users can refer to the configuration type plate.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive System

Series

HDS

Generation

2nd

Function

Controlling and Monitoring Servo Motors

Power Loss

220 Watts

Power Consumption

25 Watts

Peak Current

75 Amps

Weight

11 Kilograms

Rated Current

75 Amps

Compatibility

HVR and HVE Supply Modules

Terminal Type

Screw

Storage and Transport Temperature

-30 to 85 degrees Celsius

Mounting Type

Mounting Rail

Product Line

HDS03

Protection Levels

IP 10 (EN 60 529 standards)

Configuration

Can Activate Two Motors

Product Version

1

Ambient Temperature

5 to 45 degrees Celsius

Installation Elevation

0 to 1000 meters

Heat Dissipation

Internal with built-in blower

Mounting

Control Cabinet

Applications

Single and Multi-axis Drive and Control Applications
