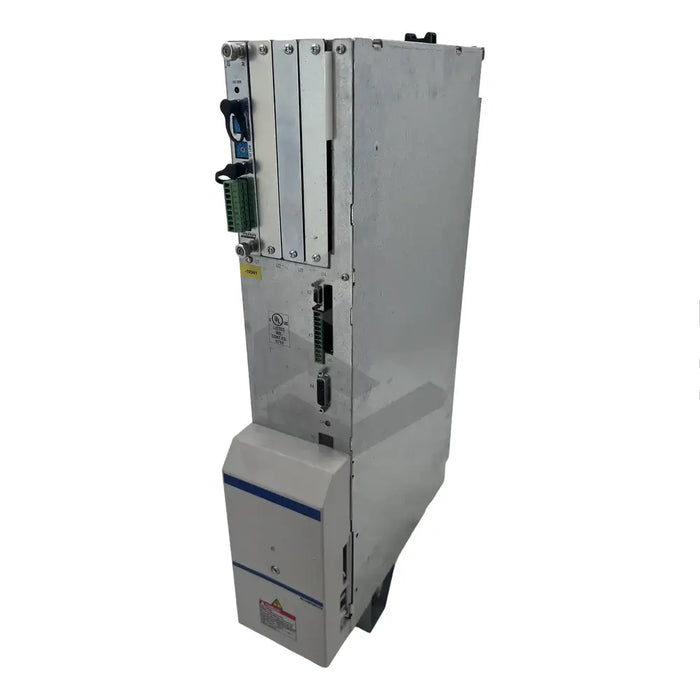

C image of HDS03.1-W100N-HS12-01-FW | Main (Front Left)

HDS03.1-W100N-HS12-01-FW

by Bosch Rexroth Indramat
$7,707.86 - $7,707.86
$7,707.86
$7,707.86 - $7,707.86
$7,707.86

In Stock, Ships 1 - 3 Days

The HDS03.1-W100N-HS12-01-FW is a dynamic and reliable drive controller manufactured by Bosch Rexroth Indramat, noted for their innovative contributions to drive and control technology. This controller is part of the renowned HDS series, second-generation controllers known for their robustness and superior performance. The HDS03.1-W100N-HS12-01-FW is a 3-line first version controller with an integrated blower for internal cooling. It carries a 100 A current rating and a continuous current of 50/35 A, utilizing a SERCOS interface and belonging to the DIAX04 controller family. Its firmware must be separately ordered and function ID code is ‘1’. Measuring a weight of 11 kg, it consumes 25 W of power and operates within ambient temperature ranges of 5˚C to 45˚C. For installations above 1000m or outside of standard operating temperatures, consultation of the manual for load factor considerations is recommended.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

HDS03.1-W100N-HS12-01-FW

Manufacturer

Bosch Rexroth Indramat

Product Line

HDS series

Designation

3-line 1st version controller

Cooling

Built-in blower

Current Rating

100 A

Continuous Current

50/35 A

Family

DIAX04

Interface

SERCOS

Function ID Code

1

Weight

11 kg

Power Consumption

25 W

Permissible Ambient Temperature Range

5˚C to 45˚C

Maximum Operating Temperature

55˚C

Maximum Storage Temperature

85˚C

Installation Elevation

1000 m.
