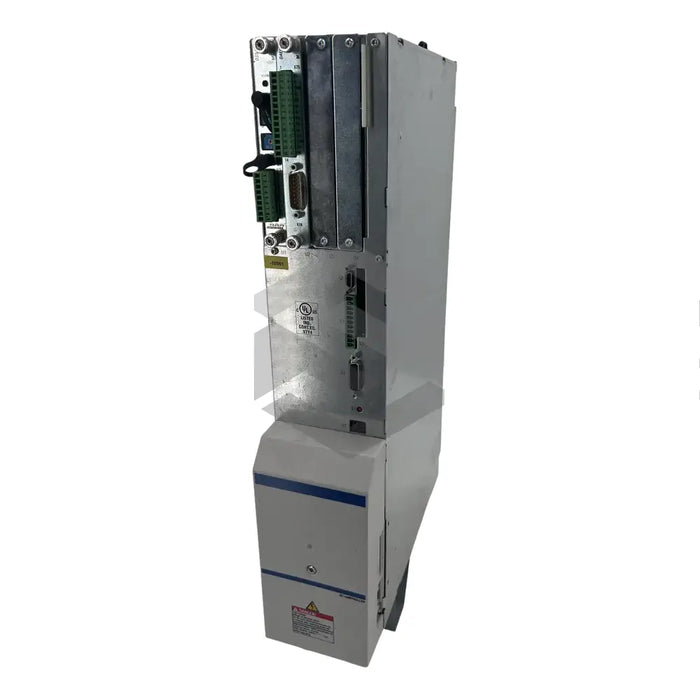

C image of HDS03.1-W100N-HS56-01-FW | Main (Front Left)

HDS03.1-W100N-HS56-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDS03.1-W100N-HS56-01-FW is a servo drive developed by Bosch Rexroth Indramat, designed to be efficient, durable and versatile. This component is tailored to meet specific customer requirements consistently, with features including a communications module, a software module, a configuration type of plate, and a drive controller base unit. Moreover, it can accommodate up to four additional plug-in modules, depending on application needs. These may include input/output modules for signal assessment or export, a command interface card, or a module for assessing position measurement systems. The HDS03.1-W100N-HS56-01-FW operates using an internal air cooling system to maintain optimal ambient temperature and employs SERCOS interface command communication. Part of the DIAX04 controller family, the unit also belongs to version 1, line 3 of the HDS product group, with a function ID code of 56 and function ID version of 1. It operates at a maximum permissible current of 100 amps and weighs approximately 10 lbs.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product name

HDS03.1-W100N-HS56-01-FW Servo Drive

Product type

Aftermarket Automation Accessory

Weight

10 lbs

Permissible current

100 Amps

Components

Command communications module, software module, configuration type of plate, base unit drive controller

Extra plug-in modules

Up to 4

Cooling system

Internal Type of air cooling through in-built blower

Communication interface

SERCOS interface command communication

Controller Family

DIAX04

Product Version

1

Product Line

3

Function ID Code

56

Version of Function ID

1.
