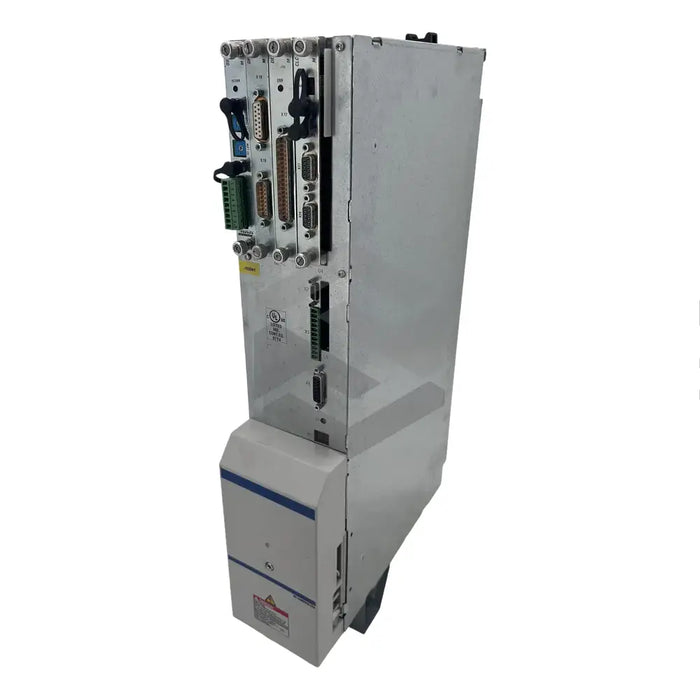

C image of HDS03.2-W075N-HS11-01-FW | Main (Front Left)

HDS03.2-W075N-HS11-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDS03.2-W075N-HS11-01-FW is a drive controller developed by Bosch Rexroth Indramat, recognized for their commitment to automation technology. This device is a part of the second generation of HDS Drive controllers. Its integral structure includes a basic unit (HDS03.2-W075N) and a configuration number (HS11-01-FW). Derived from the HDS product group, it belongs to the DIAX04 controller family, boasting a rated current of 75A. The controller integrates an internal cooling system via a built-in blower. With a device weight of 11kg and a width of 100mm, it can operate optimally at a maximum ambient temperature of 45ºC, and also withstand up to 55ºC with reduced nominal data. The system consumes an average power of 25W, with a peak input and output current of 37A and 40A respectively. The controller dissipates power at 220W and requires class 1 wire for field wiring. Essential features include dual grounding connections and temperature-evaluating resistors at TM+ and TM- when a drive motor connects.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

HDS03.2-W075N-HS11-01-FW

Generation

Second Generation

Product Group

HDS

Rated Current

75A

Controller Family

DIAX04

Cooling Mechanism

Internal Air, Built-In Blower

Maximum Ambient Temperature (Nominal Data)

45C

Maximum Ambient Temperature (Reduced Nominal Data)

55C

Device Weight

11kg

Device Width

100mm

Rated Power Consumption

25W

Maximum Input Current

37 A

Maximum Output Current

40 A

Power Dissipation (Continuous Current, Bus Power, Braking Resistor)

220W

Field Wiring Material

Class 1 Wire

Ground Connections

Two (Supply Module, Mounting Rails)

Extra Features

Temperature Evaluation via TM+ and TM- Connections
