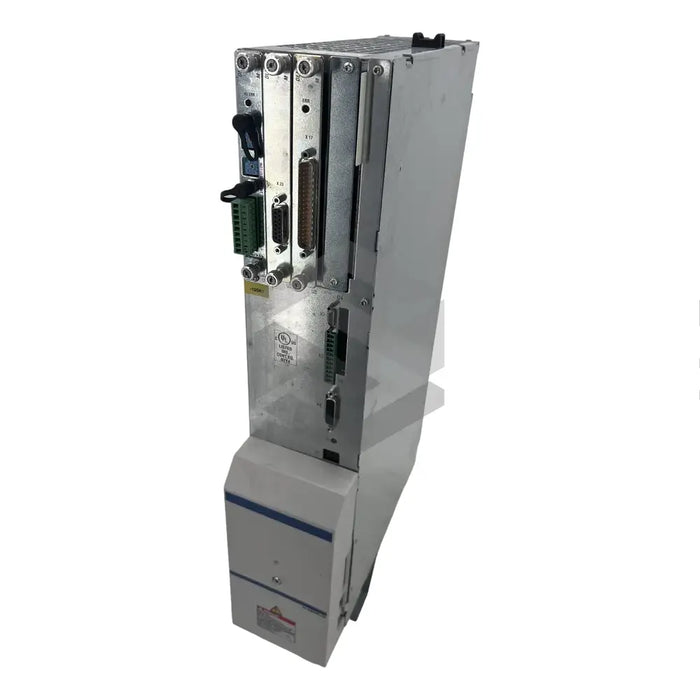

C image of HDS03.2-W075N-HS33-01-FW | Main (Front Left)

HDS03.2-W075N-HS33-01-FW

by Bosch Rexroth Indramat
$6,425.77 - $21,262.50
$6,425.77
$6,425.77 - $21,262.50
$6,425.77

In Stock, Ships 1 - 3 Days

Product HDS03.2-W075N-HS33-01-FW is a specialized component made by engineering firm Bosch Rexroth Indramat, renowned in the manufacturing and service industries for its hydraulic and electrical automation products. This particular product requires branch circuit protection furnished externally in alignment with maximum voltage and current or full-load current capability of the fuses. Highlight features of this product include an analog diagnostics output and a ribbon cable bus connection. It incorporates optional interface modules for command communication, employs an optional holding brake and is compatible with PTC/ NTC systems based on motor interactions. The power voltage includes L+ and L- DC bus rails, a serial interface, and a motor cable shield extending between AC motor and drive controller. The feedback connector is compatible with an MKD/MKE resolver and MHD/MKE HSF, proving product versatility. Also, the component may be installed either vertically or horizontally, offering further placement flexibility.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

HDS03.2-W075N-HS33-01-FW

Branch Circuit Protection

Externally Supplied

Interface Modules

Optional for Communication Commands

Diagnostics Output

Analog

Ribbon Cable Bus Connection

Present

Holding Brake

Optional

Motor Dependency

PTC/NTC

Power Voltage

L+ and L- Power Voltage DC Bus Rails

Serial Interface

Present

Motor Cable Shield

Present

Feedback Connector

MKD/MKE Resolver and MHD/MKE HSF

DC Bus Voltage Connection

Connected Through Wires Provided with Drive

Supply Lines Length

Maximum 1 m, Minimum 25 mm2

Motor Cable Attachment

Clamped Fitting to XS1

Mounting Plate Arrangement

Horizontal or Vertical Possible
