series image of HDS03.2-W075N-HS76-01-FW

HDS03.2-W075N-HS76-01-FW

by Bosch Rexroth Indramat
Request a quote

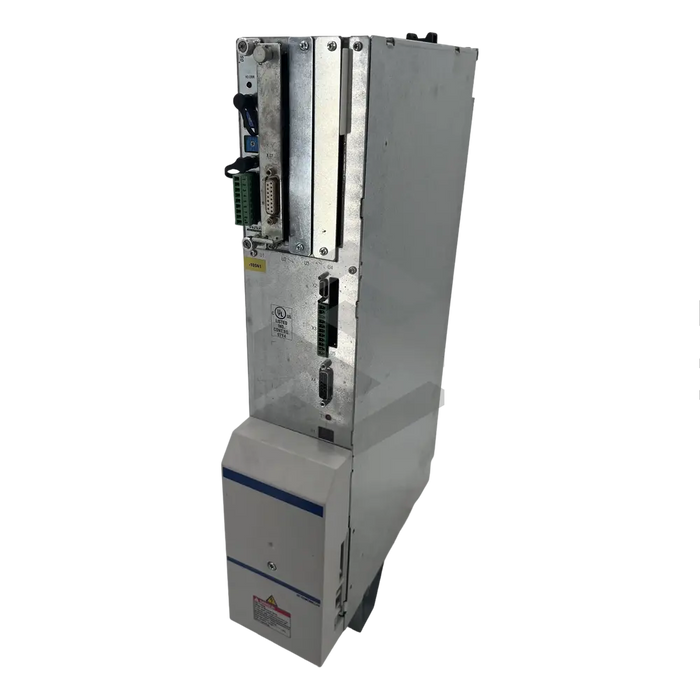

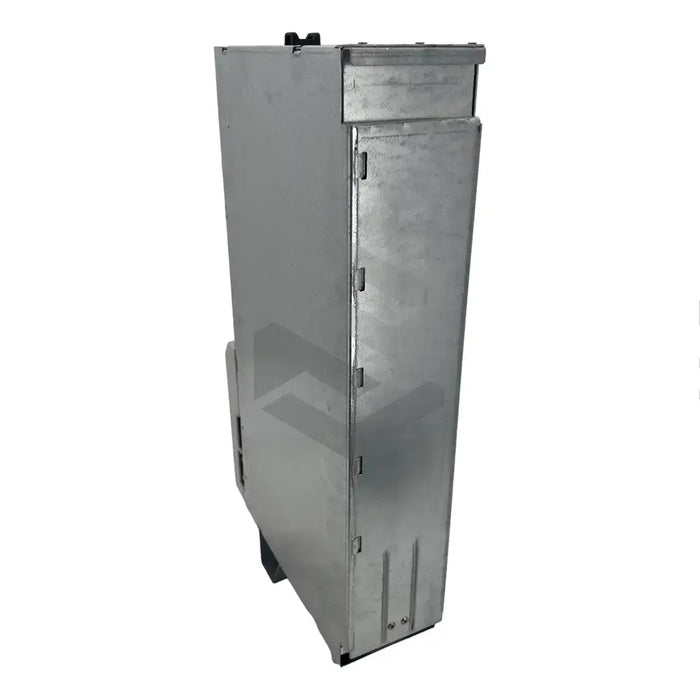

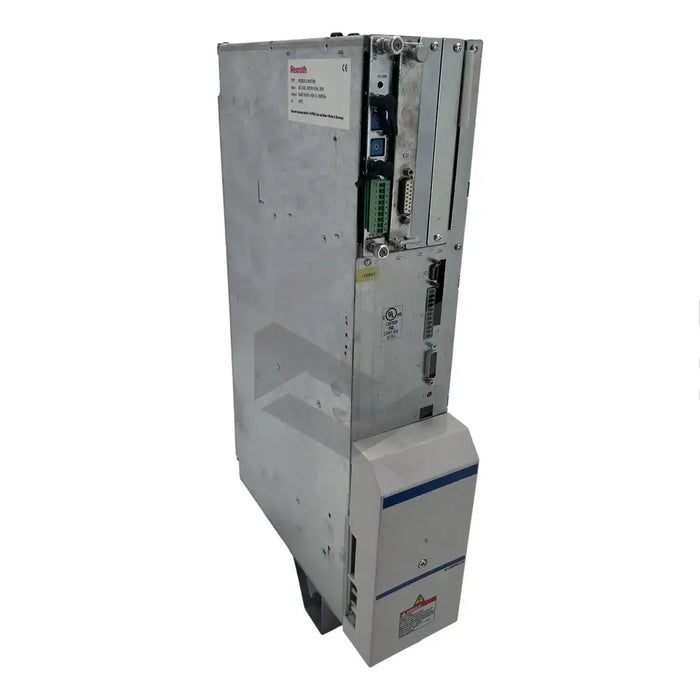

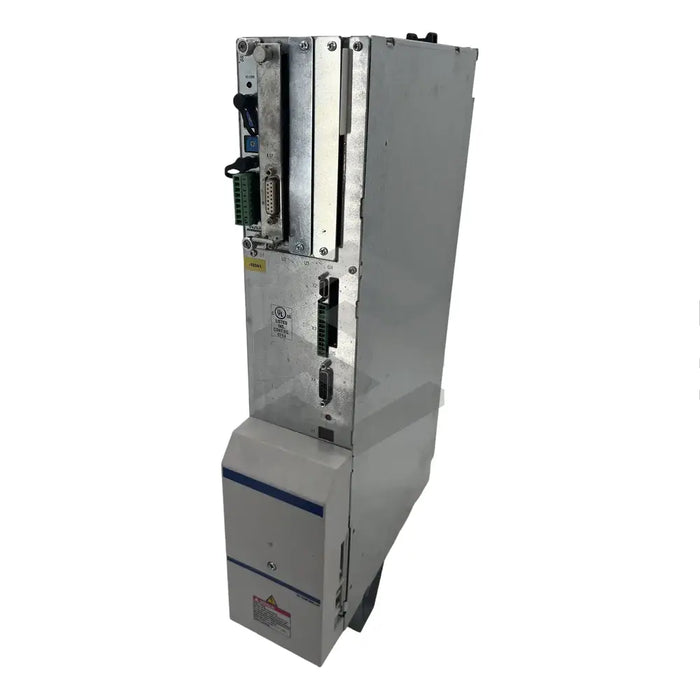

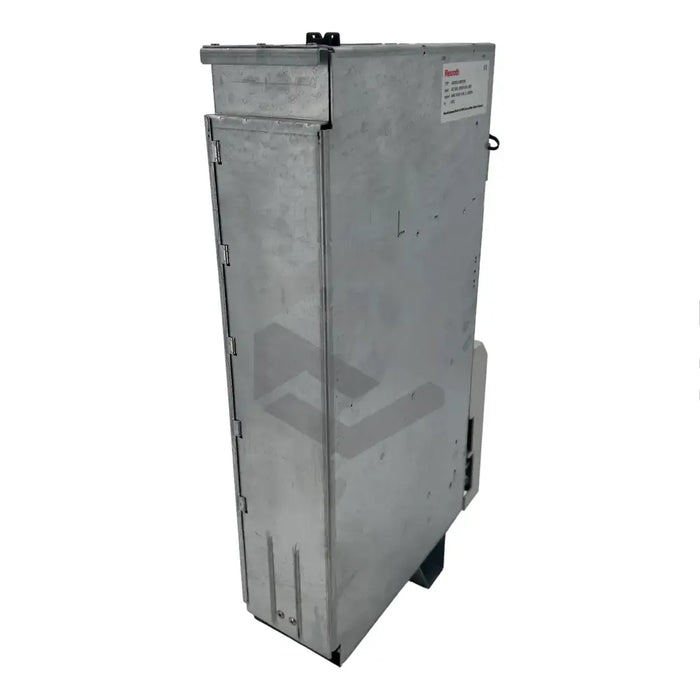

The HDS03.2-W075N-HS76-01-FW is a versatile, modular drive produced by Bosch Rexroth Indramat. Part of the DIAX04 controller series, this component boasts compatibility with a variety of AC drives. The drive is designed for use within a closed terminal box or control cabinet, vertically mounted on a DIN rail, at an ambient temperature below 45 degrees for optimal performance. An internal air cooling feature with an in-built blower is positioned to divert water condensation away from the electronic parts of the drive. The HDS03.2-W075N-HS76-01-FW units consist of a drive controller, software module, a configuration type plate, and additional modules. It works as a servo or mains drive in conjunction with 2AD AC, 1MB, MKD, and MHD motors, making it suitable for industrial robots, textile, and packaging machines. The unit boasts a peak current of 75A and operates via a SERCOS interface with 3 lines. Separate routing of load and signal supply lines helps to minimize interference. Its features also include a power loss of 220W, continuous current of 40/30A, C insulation class, and an installation altitude of up to 1000M.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: HDS03.2-W075N-HS76-01-FW
  • Controller Family: DIAX04
  • Design: Modular
  • Compatibility: Various AC drives
  • Protection Class: IP 20
  • Mounting Orientation: Vertical
  • Mounting Location: DIN rail
  • Recommended Control Cabinet Temperature: 45 degrees or below
  • Cooling System: Internal air, built-in blower
  • Condensation Flow Path: Air duct
  • Ideal Usage: with 2AD AC, 1MB, MKD, and MHD motors
  • Usages: Servo or mains drive for industrial robots, textile and packaging machines
  • Rating: 75A
  • Communication: SERCOS interface commands
  • Interface: 3 line
  • Software Status: Must be ordered separately
  • Weight: Approximately 11kg
  • Power Loss: 220W
  • Continuous Current: 40/30A
  • Insulation Class: C according to DIN VDE 0110
  • Installation Altitude: 1000M
  • Operating Temperature: 5 to 45 degrees
  • Storage Temperature: -30 to 85 degrees.
