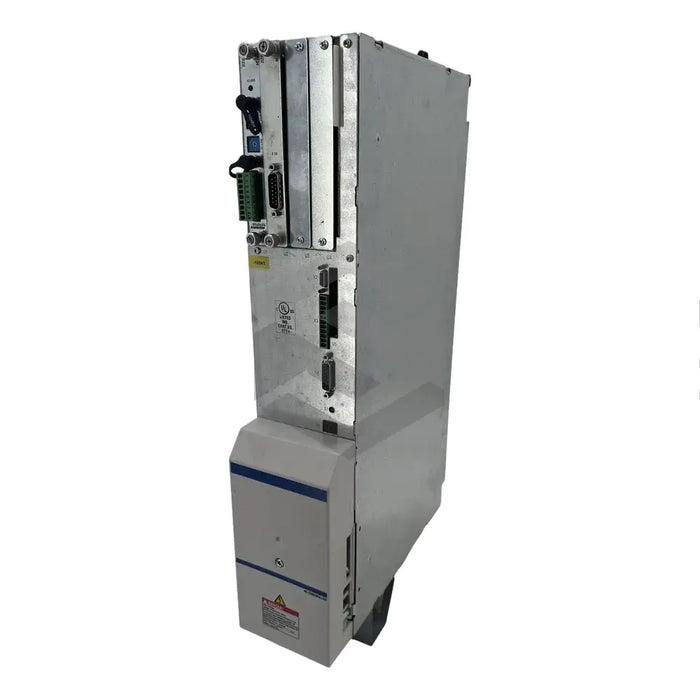

product Main (Front Left) image of HDS03.2-W075N-HS79-01-FW

HDS03.2-W075N-HS79-01-FW

by Bosch Rexroth Indramat
$6,590.67 - $6,590.67
$6,590.67
$6,590.67 - $6,590.67
$6,590.67
Available, Shipping Varies
Bosch Rexroth Indramat's HDS03.2-W075N-HS79-01-FW is a modular AC drive controller from the DIAX04 range, designed to enable flexible drive combinations. The controller works with MHD, MKD, 1MB, and 2AD AC motors to create a rapid-response drive suitable for machinery ranging from packaging machines to robots. High-performance and frequent start-stop cycle applications may require additional units such as the HZB brake resistors and HZK capacitor modules. Pre-programming the drive controller allows task-specific performance customization. The HDS03.2-W075N-HS79-01-FW controller is designed for single and multi-axis control and drive applications and features a SERCOS interface for operation of digital drives. The controller, weighing 11 kg, must be installed vertically on a DIN rail inside a control cabinet, maintaining a temperature of 45 degrees and avoiding condensation. It has a rated current of 75A and a signal processing power consumption of 25W.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: DIAX04 drive controller
  • Module Concept: Allows flexible combination of AC drives
  • Suitable for use with: MHD, MKD, 1MB, and 2AD AC motors
  • Additional units required for performance: HZB brake resistors and HZK capacitor modules
  • Programming required: Yes
  • Applications: Single and multi-axis control and drive applications
  • Composition: Software module, command communication module, configuration type plate, and other modules
  • Interface: SERCOS interface
  • Installation: Vertically mounted on a DIN rail inside a control cabinet
  • Weight: 11 kg
  • Rated current: 75A
  • Peak current: 75A
  • Power consumption for signal processing: 25W
  • Temperature requirements: 45 degrees for the device, 40 degrees for cooling systems
  • Protection: Control cabinet should protect against liquids and extrinsic objects.
