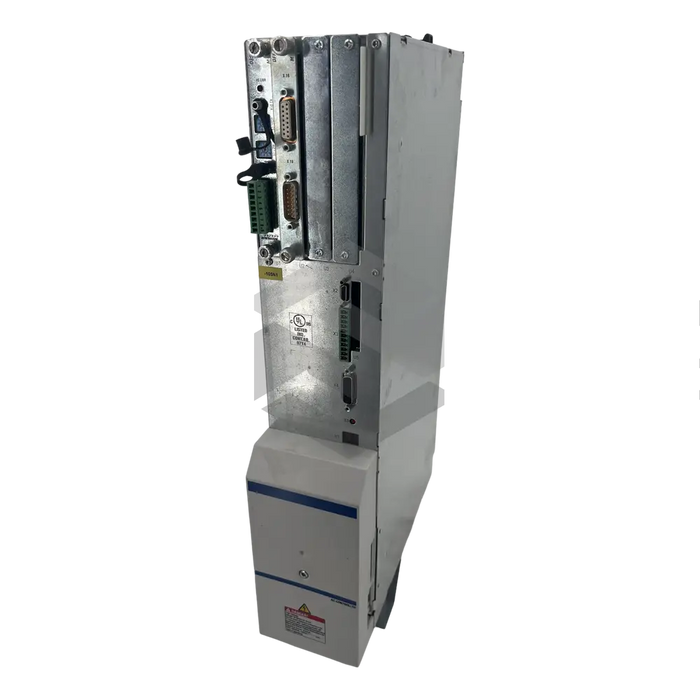

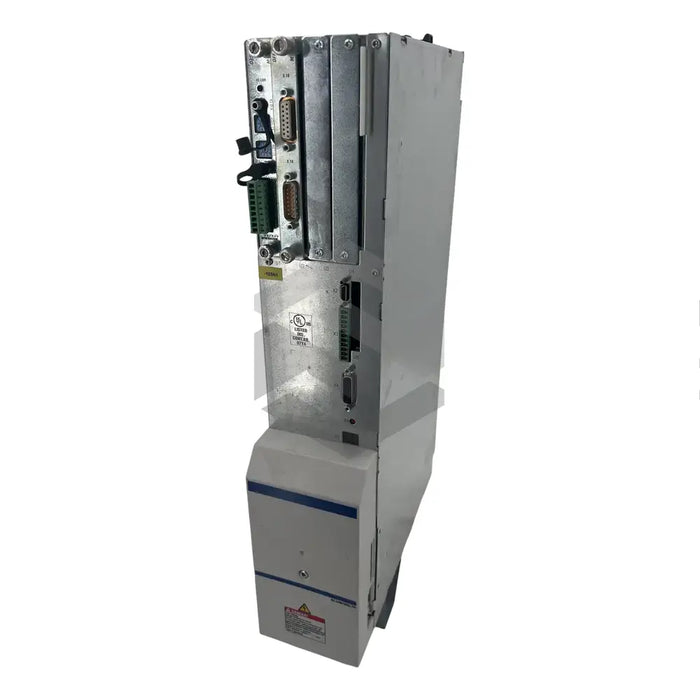

C image of HDS03.2-W100N-HS09-01-FW | Main (Front Left)

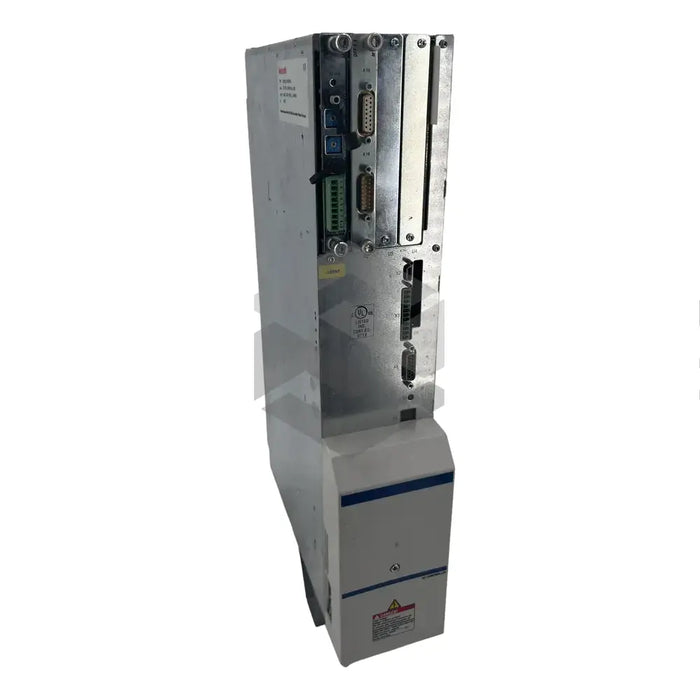

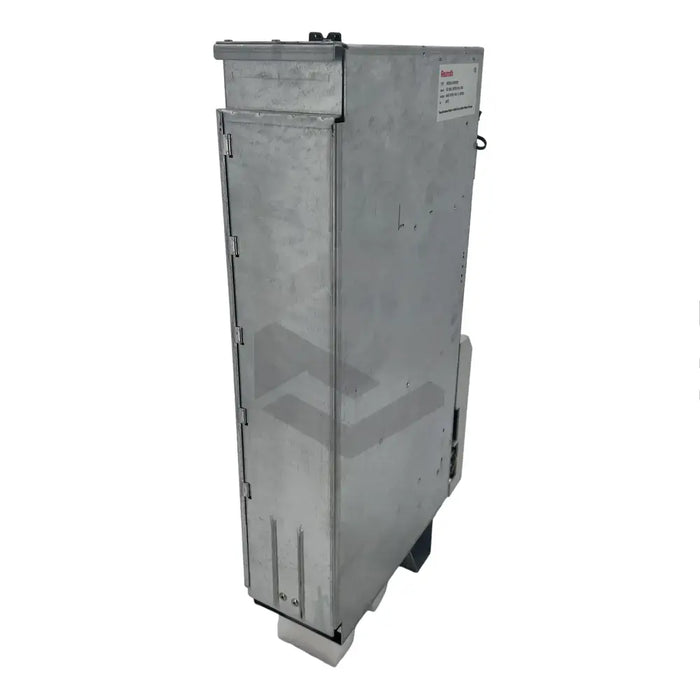

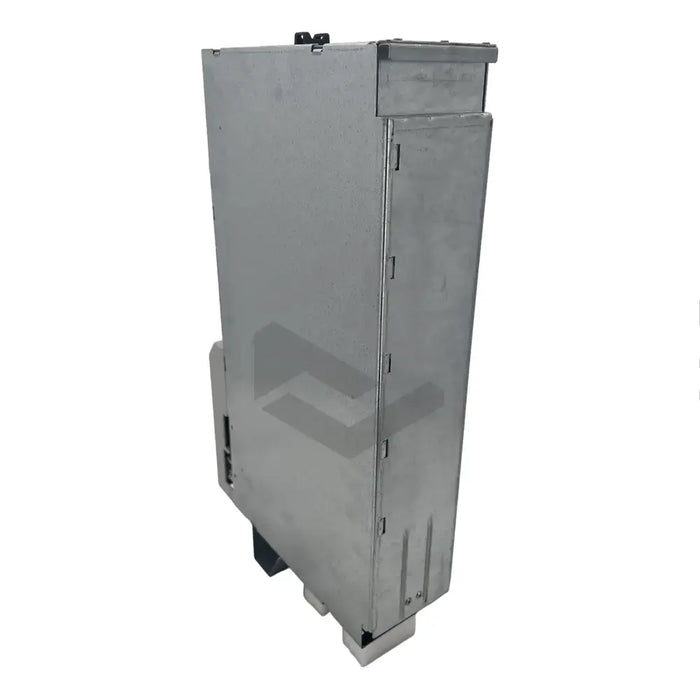

HDS03.2-W100N-HS09-01-FW

by Bosch Rexroth Indramat
$5,602.80 - $17,704.45
$5,602.80
$5,602.80 - $17,704.45
$5,602.80

In Stock, Ships 1 - 3 Days

Brought to you by Bosch Rexroth Indramat, the HDS03.2-W100N-HS09-01-FW is part of the HDS series renowned for efficient drive solutions used for speed, torque, and position control in various industrial motors. The device operates using a current of 75 A and has a power loss of 220 W. It is best utilized within a temperature range of 5 ᵒC to 45 ᵒC, with robust construction enabling use above this temperature albeit with power de-rating. The drive has a mass of 11 kg, contributing to ease of transport and installation while offering a peak current of 30 A at an 8 kHz frequency. Aiding signal processing, it requires a 26 V power source with a 25 W output. Versatile in use, this drive pairs well with Rexroth's 1MB, 2AD, and MKD series motors, and its module-based design allows for easy replacement and retrofitting. Its compatibility with the HSM software module ensures secure storage of operational parameters and firmware.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Series

HDS

Product Type

Servo Drive

Model

HDS03.2-W100N-HS09-01-FW

Current

75 A

Power Loss

220 W

Operating Temperature

5 ᵒC to 45 ᵒC

Weight

11 kg

Peak Current

30 A

Operating Frequency

8 kHz

Power for Signal Processing

25 W

Power Source

26 V

Compatible Motors

1MB, 2AD, MKD series

Software Module Support

HSM

Modular Construction

Yes

Pre-configured Extension Modules

Yes
