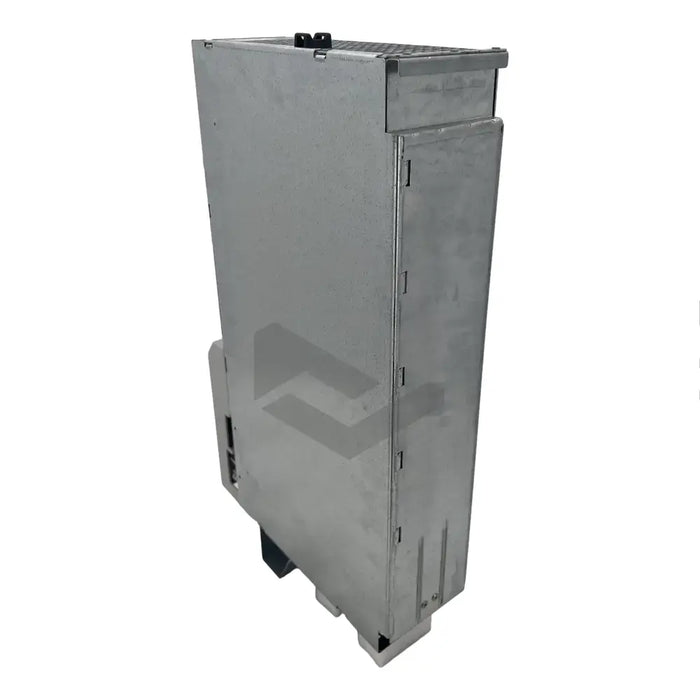

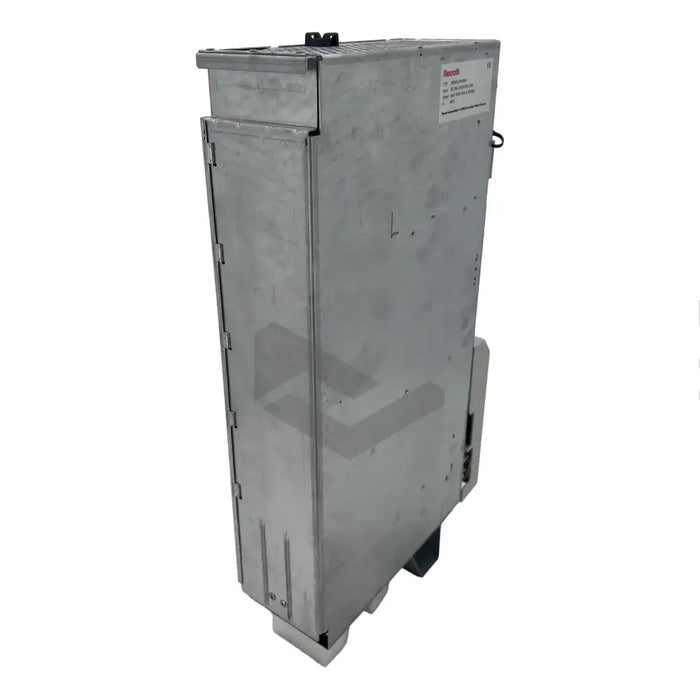

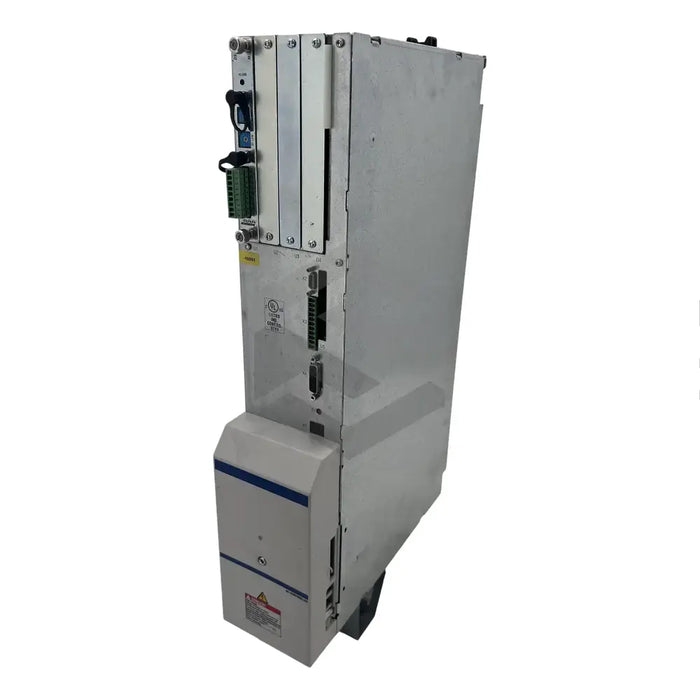

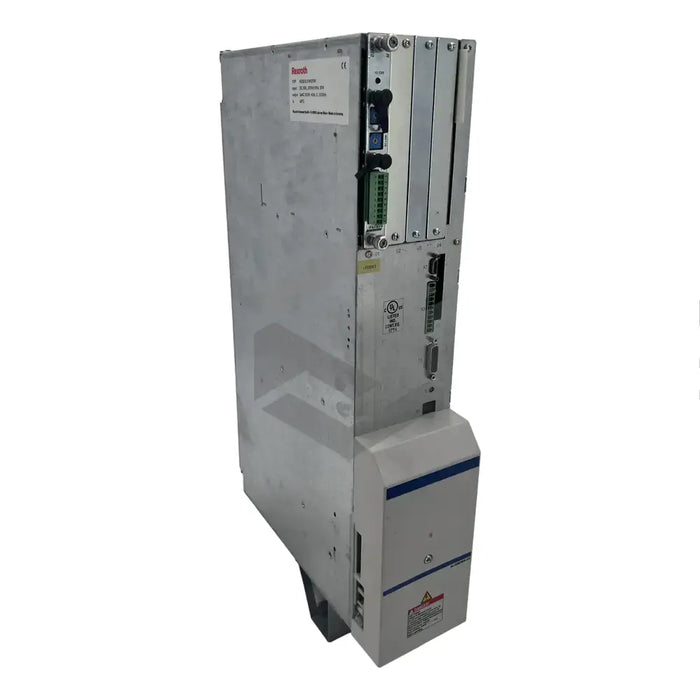

HDS03.2-W100N-HS12-01-FW

Original price $19,991.15 - Original price $19,991.15
Original price
$19,991.15
$19,991.15 - $19,991.15
Current price $19,991.15
In Stock, Ships 3 - 5 Days
Request a quote
The HDS03.2-W100N-HS12-01-FW is a sophisticated drive controller from Bosch Rexroth Indramat. Part of the DIAX04 controller family, it has a line code of 3 and version code 2. The device spotlights an integrated command communication module, an HSM software module containing operational software and drive parameters, and a 100A current rating. Adherence to the manufacturer's instructions for mounting, using a SUP-M01-HD designated mounting rail, is essential. Two type plates specify device base and configuration details. Primarily used with Bosch's AC motors for operational monitoring, it requires connection to an HVR or HVE supply module for power and signal voltages. The controller's firmware needs to be ordered separately. It features internal air cooling, but if high performance is required and there's no regeneration facility, use of an HZB brake resistor is recommended. Its modular design allows flexibility, and shipping is customizable.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: HDS03.2-W100N-HS12-01-FW
  • Product Type: Configured Drive Controller
  • Line Code: 3
  • Version Code: 2
  • Controller Family: DIAX04
  • Current Rating: 100A
  • Mounting Method: Mounting rail with SUP-M01-HD type designation
  • Type Plates: Two, one for basic device and one for entire configuration
  • Intended Use: Monitoring operation of AC motors
  • Cooling Mechanism: Internal air circulation
  • Modular Design: Yes
  • Additional Component for High Performance: HZB brake resistor (if power supply system does not have regeneration capability)
  • Command Communication Module: Present
  • Software Module: HSM type
  • Firmware: To be ordered separately
  • Delivery Option: Can be delivered to chosen address.
