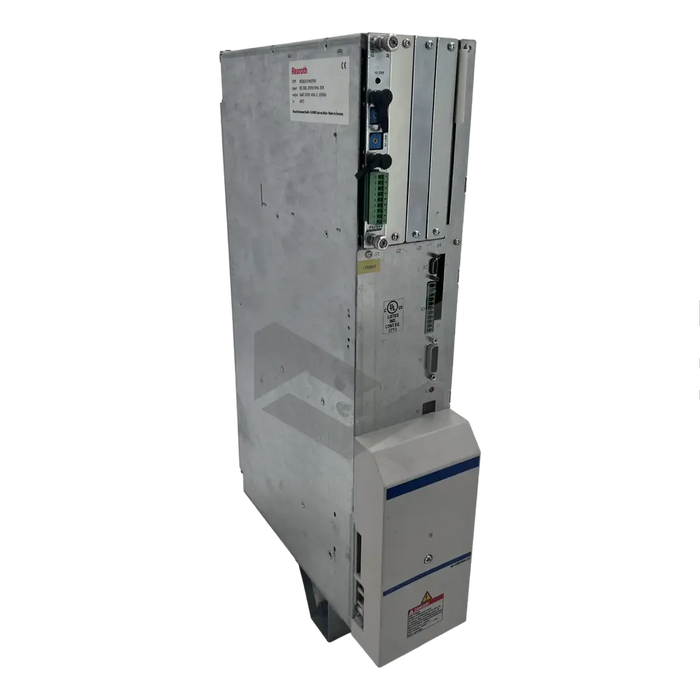

C image of HDS03.2-W100N-HS12-01-FW | Main (Front Left)

HDS03.2-W100N-HS12-01-FW

by Bosch Rexroth Indramat
$3,322.35 - $11,502.62
$11,502.62
$3,322.35 - $11,502.62
$11,502.62

Available, Shipping Varies

The HDS03.2-W100N-HS12-01-FW is a sophisticated drive controller from Bosch Rexroth Indramat. Part of the DIAX04 controller family, it has a line code of 3 and version code 2. The device spotlights an integrated command communication module, an HSM software module containing operational software and drive parameters, and a 100A current rating. Adherence to the manufacturer's instructions for mounting, using a SUP-M01-HD designated mounting rail, is essential. Two type plates specify device base and configuration details. Primarily used with Bosch's AC motors for operational monitoring, it requires connection to an HVR or HVE supply module for power and signal voltages. The controller's firmware needs to be ordered separately. It features internal air cooling, but if high performance is required and there's no regeneration facility, use of an HZB brake resistor is recommended. Its modular design allows flexibility, and shipping is customizable.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

HDS03.2-W100N-HS12-01-FW

Product Type

Configured Drive Controller

Line Code

3

Version Code

2

Controller Family

DIAX04

Current Rating

100A

Mounting Method

Mounting rail with SUP-M01-HD type designation

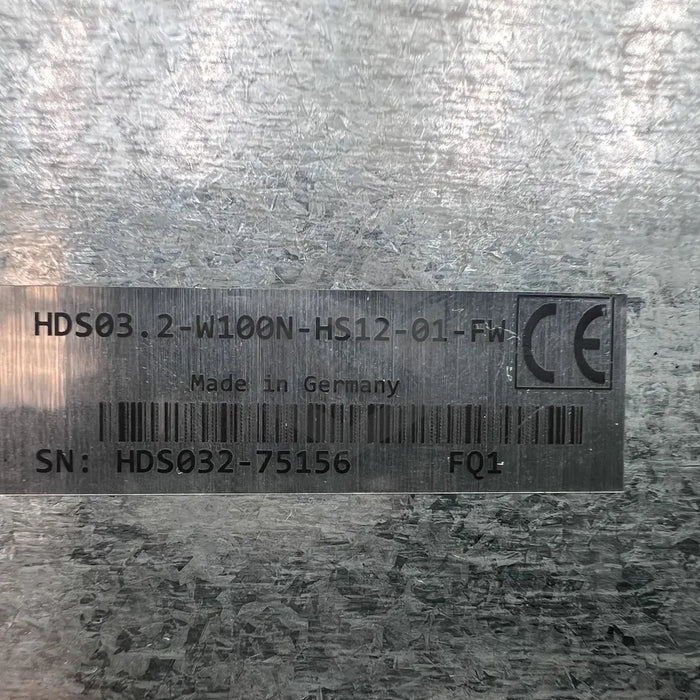

Type Plates

Two, one for basic device and one for entire configuration

Intended Use

Monitoring operation of AC motors

Cooling Mechanism

Internal air circulation

Modular Design

Yes

Additional Component for High Performance

HZB brake resistor (if power supply system does not have regeneration capability)

Command Communication Module

Present

Software Module

HSM type

Firmware

To be ordered separately

Delivery Option

Can be delivered to chosen address.
