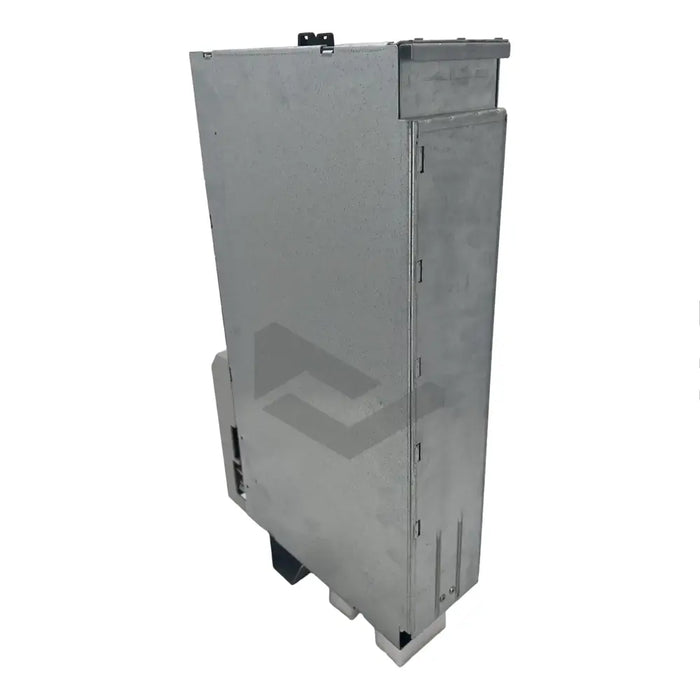

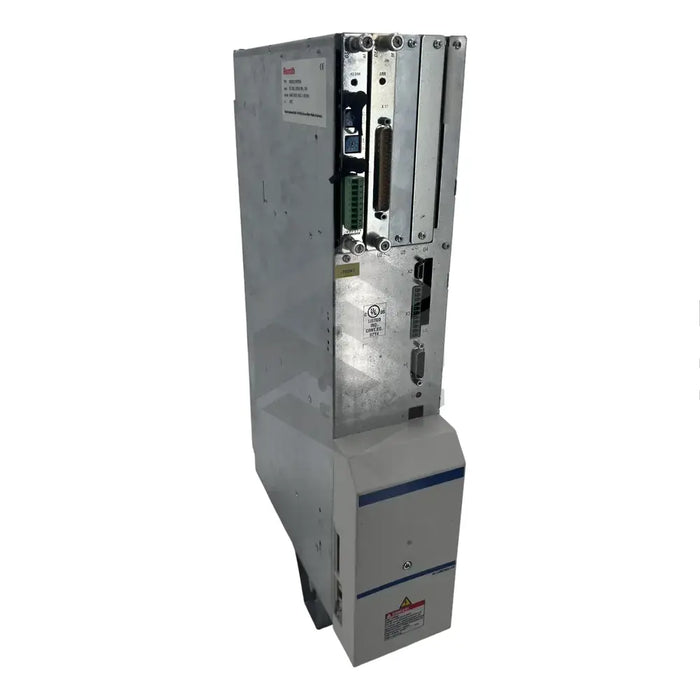

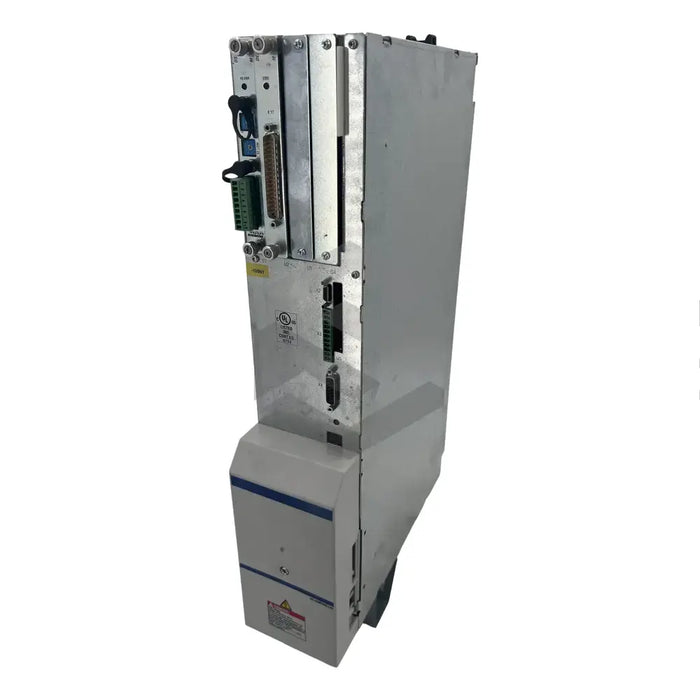

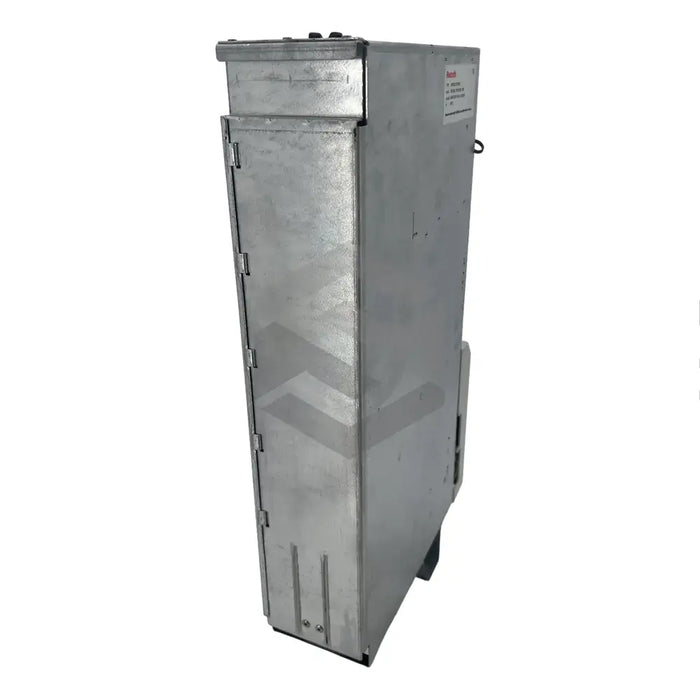

C image of HDS03.2-W100N-HS23-01-FW | Main (Front Left)

HDS03.2-W100N-HS23-01-FW

by Bosch Rexroth Indramat
$8,687.36 - $17,704.45
$8,687.36
$8,687.36 - $17,704.45
$8,687.36

In Stock, Ships 1 - 3 Days

The HDS03.2-W100N-HS23-01-FW is a configured drive controller designed and manufactured by Bosch Rexroth Indramat. This device is highly modular and utilizes a SERCOS interface for efficient command communication. It serves as a rapid-response, main or servo drive for single and multi-axis control applications. Developed with an integrated HZK capacitor module to handle numerous start-stop cycles, this controller operates a continuous current rating of 50A/35A at 4kHz/8kHz clock frequency. Additionally, the controller is equipped with a built-in blower for cooling and is designed to operate at a maximum ambient temperature of 55°C. Functional customizability is achieved through additional plug-in modules like interfaces for various measuring systems and digital I/O cards. It must be encased in an EN 50175/1988 compliant control cabinet or closed housing for optimum operations. The device also comes with four diagnostic analog inputs and a flat cable for bus connection.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

HDS03.2-W100N-HS23-01-FW

Structure

Modular

Communication Interface

SERCOS

Functionality

Rapid-response, main or servo drive

Function ID Code

23

Module

HZK capacitor module for numerous start-stop cycles

Operation

Not operable underwater

Reprogramming

Drive parameters can be reset through software module insertion

Built-in Cooling System

Yes

Rating

Continuous current of 50A/35A at 4kHz/8kHz clock frequency

Maximum Operating Temperature

55°C

Connection

Uses flat cable for bus connection

Additional Plug-In Modules Support

Yes (interface cards for several measuring systems, integrated control and digital I/O cards)

Product Family

HDS

Mounting

Inside a closed housing or a control cabinet that meets EN 50175/1988 specifications

Diagnostic Inputs

Four analog inputs.
