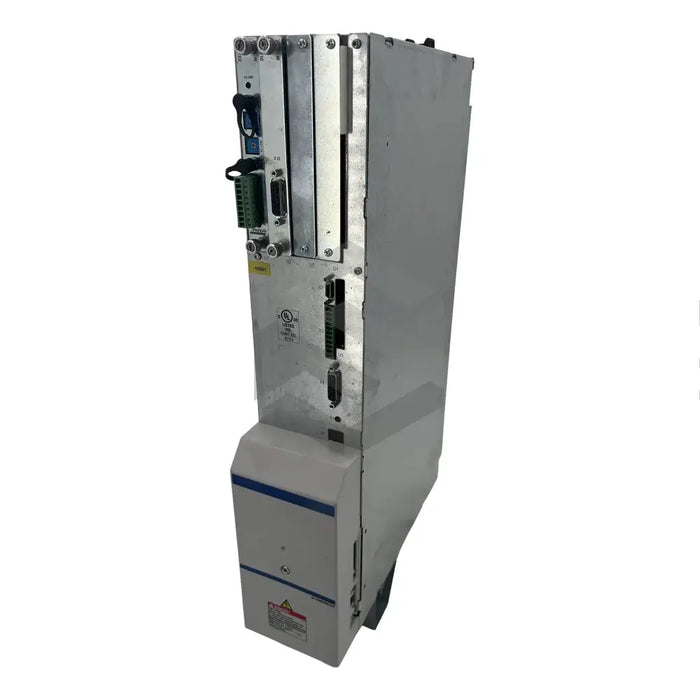

C image of HDS03.2-W100N-HS32-01-FW | Main (Front Left)

HDS03.2-W100N-HS32-01-FW

by Bosch Rexroth Indramat
$3,820.68 - $17,704.45
$3,820.68
$3,820.68 - $17,704.45
$3,820.68

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's HDS03.2-W100N-HS32-01-FW is part of the HDS series of 2nd generation drive controllers, renowned for their high performance, low maintenance, and reliability. This 3-line controller features an integrated cooling blower and void of versions. Belonging to the DIAX04 controller family, it communicates via a SERCOS interface, and has a function ID code of 32, version 1. The firmware, not included with the base, must be ordered separately. Rated at 100A with a continuous current of 50/35A, this controller weighs 11kg and consumes 25W of power. Operational within an ambient temperature of 5-45°C (up to 55°C with derated data), the controller can also function at an elevation up to 1000 meters. It boasts of a 'C' insulation class and an IP 10 protection category, in compliance with DIN 40 050.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

HDS

Product Line

3-line 2nd version controller

Cooling Method

Built-in blower for air cooling

Current Rating

100A

Controller Family

DIAX04

Communication Interface

SERCOS

Function ID Code

32

Version of Function ID

1st version

Firmware

Ordered as a separate subitem

Rated Current

100 A

Continuous Current

50/35 A

Unit Weight

11 kg

Power Consumption

25 W

Ambient Temperature Range

5˚C - 45˚C

Maximum Operational Temperature

55˚C

Maximum Elevation

1000 meters above sea level

Insulation Class

C

Protection Category

IP 10 per DIN 40 050
