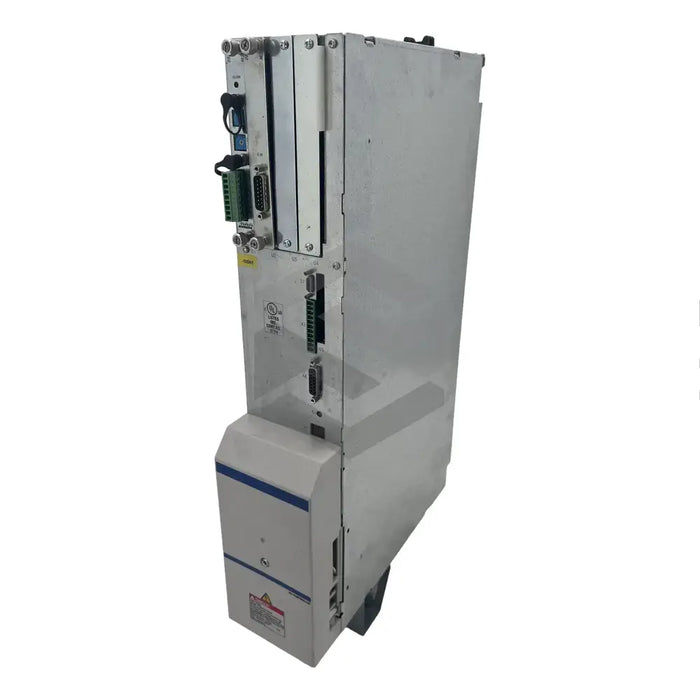

C image of HDS03.2-W100N-HS37-01-FW | Main (Front Left)

HDS03.2-W100N-HS37-01-FW

by Bosch Rexroth Indramat
$6,409.67 - $17,702.60
$6,409.67
$6,409.67 - $17,702.60
$6,409.67

In Stock, Ships 1 - 3 Days

Produced by Bosch Rexroth Indramat, noted for their extensive range of drive and control equipment, the HDS03.2-W100N-HS37-01-FW is a second generation, version 3 drive controller from their acclaimed HDS series. It carries a current rating of 100A and includes an integrated fan to facilitate cooling, requiring proper installation for sufficient ventilation. Communication is achieved with a SERCOS interface, under a DIAX04 controller. It should be noted that firmware must be individually ordered. The controller's maximum operational temperature is 45˚C for rate data and 55˚C for de-rated data. In storage or transit, temperatures range from -30˚C to 85˚C. The controller interfaces via an RS232 connection and includes two supply module ground connections. A distance of at least 100m must be maintained between the power and control cables or feedback cables.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

HDS series

Model Number

HDS03.2-W100N-HS37-01-FW

Version

2nd version

Current Rating

100 A

Cooling Method

Built-in fan

Command Communication

SERCOS interface

Controller Type

DIAX04

Function ID Code

37

Additional Versions

No

Firmware

Ordered separately

Rated Current

100 A

Power Consumption

25 W

Weight

11 kg

Maximum Operating Temperature (Rated Data)

45˚C

Maximum Operating Temperature (De-rated Data)

55˚C

Storage Temperature

-30˚C to 85˚C

Programming Interface

RS 232

Ground Connections

Two to the supply module

Supply Line Routing

Minimum 100 m gap between power and control or signal cables.
