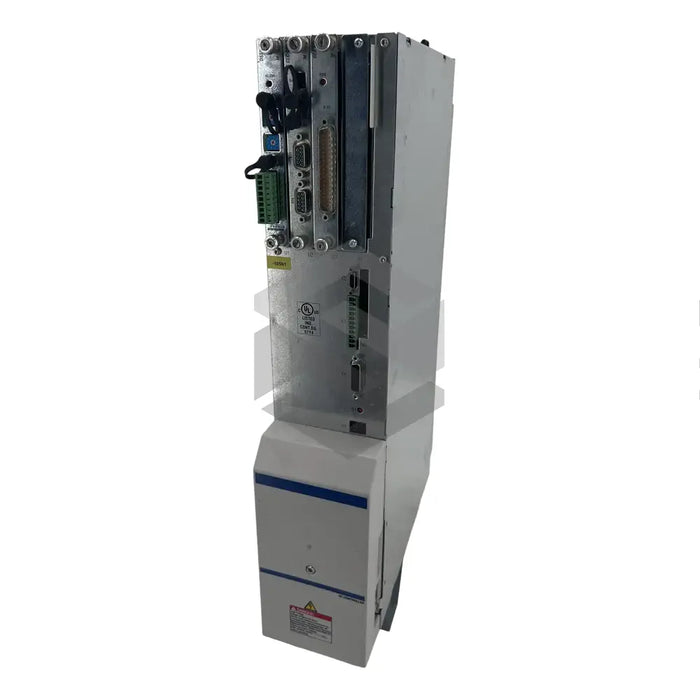

C image of HDS03.2-W100N-HT25-01-FW | Main (Front Left)

HDS03.2-W100N-HT25-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDS03.2-W100N-HT25-01-FW is a 2nd generation rapid-response HDS drive controller by Rexroth Indramat. It pairs with an HVE or HVR  Supply Unit and complies with the industry's highest standard, IEC 364-4-411.1.5. The controller manages and oversees electric motor functions in various applications such as material handling machines, food processing, packaging, textiles, and printing. Its basic unit consists of a SERCOS interface type DSS02.1M command and communication module and an HSM software module with operating software. Additional components include digital interface cards and a type plate recording controller descriptions. The unit performs optimally with a 100A rated current and a DSS02.1M SERCOS interface providing 1.5W power. The controller, which belongs to the Digital Intelligent Drive - DIAX04 family, operates at temperatures between +5 to +45 °C, has an internal cooling system, weighs 11kg, and works up to 1000m elevations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product

HDS03.2-W100N-HT25-01-FW HDS drive controller

Industry Standard

IEC 364-4-411.1.5

Power Source

HVE or HVR Supply Unit

Interface Type

SERCOS DSS02.1M

Software Module

HSM

Additional Modules

Digital interface cards, Configuration type plate

Basic Unit Specifications

Product group, Number of lines used, Product version, Type of cooling, Rated current

Configuration Number Specifications

Command and communication module, Function ID code, Function ID, Firmware version

Rated Current

100A

Communication Interface Power

1.5 Watt

Lines and Product Version

3 lines, Product Version 2

Product Family

Digital Intelligent Drive-DIAX04

Cooling System

Internal built-in blower

Operating Temperature

+5 to +45 °C

Weight

11kg

Max Elevation

1000 meters
