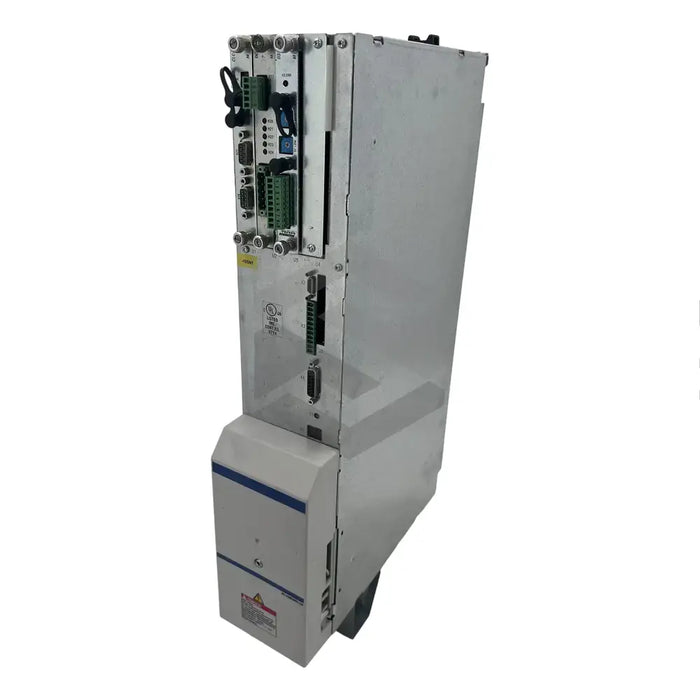

C image of HDS03.2-W100N-HT71-01-FW | Main (Front Left)

HDS03.2-W100N-HT71-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat HDS03.2-W100N-HT71-01-FW is a 2nd Generation HDS Drive Controller. It's part of the DIAX04 family, utilized for controlling and monitoring electrical motors in various types of machinery. Connectivity to both HVE and HVR Supply Units is possible, providing required signal and power voltages for operation, with all connections set between 5 to 50 volts for safety. The modular design includes a basic unit to house the command and communication module, digital I/O cards or interface cards module, and HSM software module. A special feature is the SERCOS Communication Interface Type DSS02.1M for real-time high-speed data transmission. Rated power is 1.5 Watt, with a built-in blower to avoid overheating. Optimal performance is achieved between +5°C to +45°C. At an 11kg weight, it can be installed up to 1000 meters above sea level. It may be used for industrial processes, packaging, robotics, handling, and textile or printing machines.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

HDS03.2-W100N-HT71-01-FW

Product Family

DIAX04

Power Supply Units

HVE or HVR

Voltage Range for Connections and Terminals

5-50 volts

Usage

Control and monitor of electrical motors

Compatible Machines

Industrial processing and packaging machines, robotic, handling machines, textile and printing machines

Module Components

Command and communication module, additional plug-in module, digital I/O cards or interface cards, HSM software module

Rated Current

100A

Communication Interface

SERCOS Type DSS02.1M

Product Version

2

Rated Power

1.5 Watt

Cooling System

Built-in blower

Optimal Operating Temperature

+5°C to +45°C

Weight

11kg

Installation Altitude

0 to 1000 meters above sea level
