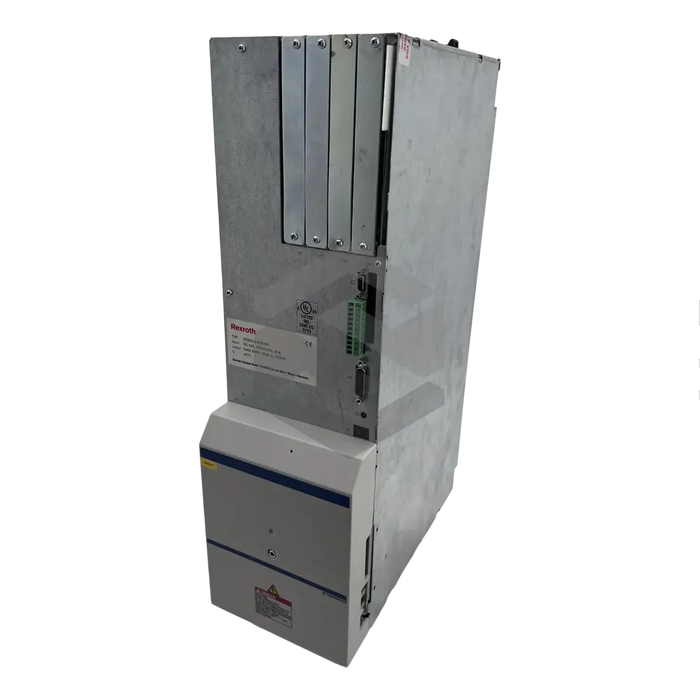

series image of HDS04.1-W200N-H

HDS04.1-W200N-H

by Bosch Rexroth Indramat
Request a quote
The HDS04.1-W200N-H is an industrial drive controller manufactured by Bosch Rexroth Indramat, adhering to American and European quality standards. This high-quality controller synergizes well with MDD, MKD, 1MB, and 2AC motor models, providing fast response drives for various applications like machine tools, textile, printing, packaging, robotics, and handling machines. The controller's encasing safeguards inner components against solids more significant than 50mm outside diameter. The HDS04.1-W200N-H controller pairs ideally with Bosch Rexroth's HVE and HVR power supply modules to provide precise signal and power voltages. For applications demanding numerous start-stop cycles, an add-on capacitor module might be necessary. The controller’s signal processing uses 30 watts of power. Its operation hinges on two key clock frequencies; 4 kHz (with a continuous input current of 120 Amperes) and 8 kHz (about 80 Amperes). Its maximum load current is 200 Amperes. Weighing in at 19 kg, this controller ensures powerful and reliable operation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: HDS04.1-W200N-H
  • Industrial Standard: American and European
  • Compatible Motor Designs: MDD, MKD, 1MB, and 2AC
  • Applications: Servo and mine drives, machine tools, textile, printing and packaging machines, robotic machines, and handling machines
  • Protection Level: Against solid foreign substances with external diameter larger than 50 millimeters
  • Compatible Power Supply Modules: HVE and HVR
  • Additional Component Requirement: May require additional capacitor for high start-stop cycles applications
  • Power Consumption: 30 watts for signal processing
  • Operating Frequencies: 4 kilohertz and 8 kilohertz
  • Continuous Input Current at 4kHz: 120 Amperes
  • Continuous Input Current at 8kHz: 80 Amperes
  • Maximum Input Current: 200 Amperes
  • Weight: 19 kilograms
