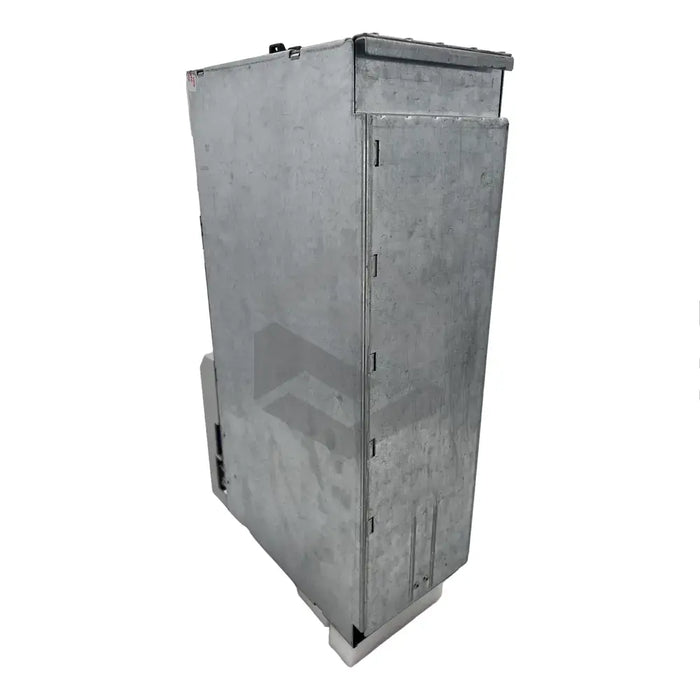

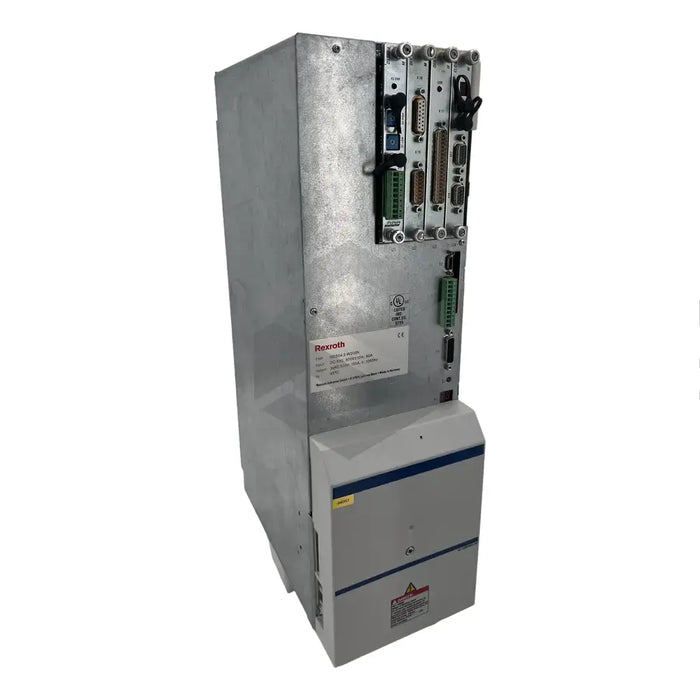

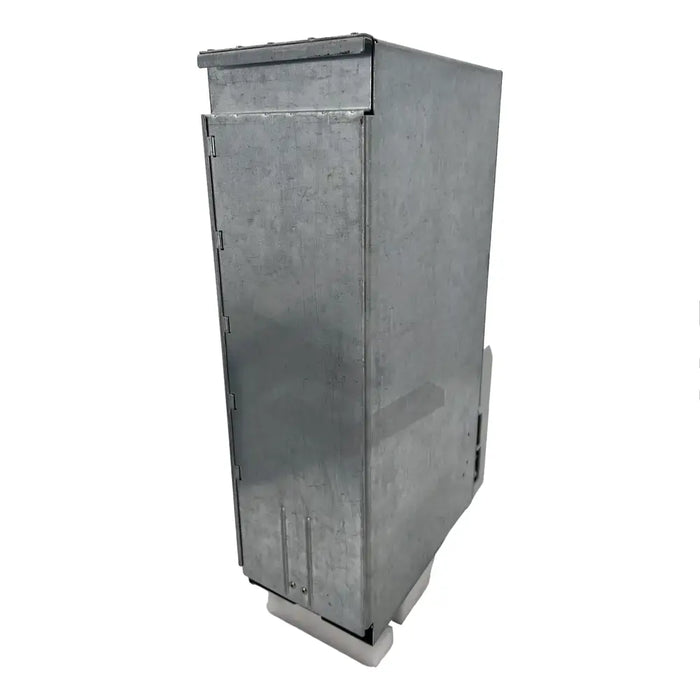

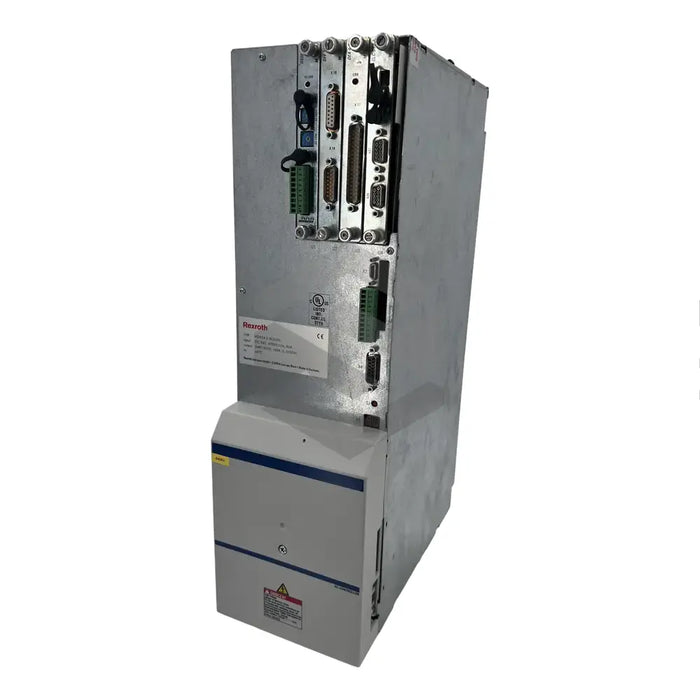

C image of HDS04.1-W200N-HS11-01-FW | Main (Front Left)

HDS04.1-W200N-HS11-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat HDS04.1-W200N-HS11-01-FW is a drive controller that is recognized for its modular build, capable of supporting a wide range of rotary and linear motors such as LSF, ADF, MHD, LAR, and MBW. This controller can communicate with external devices and the control system through a SERCOS interface and can be controlled through an ANALOG interface with the help of a fitted plug-in module. It provides various operating modes including position, velocity, torque, and drive-interpolated modes with the capacity to supply 120 amperes of current continuously at 500 VAC. The rated input current is 10 A, and the operating input voltage range lies between 530-670 VDC. This model also includes a front panel 7-segment display for flagging the current operating mode and any error codes, facilitating quick troubleshooting. It comes with inbuilt watchdog features for added safety.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

HDS04.1-W200N-HS11-01-FW

Product Type

Configured Drive Controller

Controller Series

DIAX04 HDS

Interface Type

SERCOS and ANALOG

Supported Motors

LSF, ADF, MHD, LAR, MBW, and more

Operating Modes

Position, Velocity, Torque, Drive-Interpolated

Rated Current

200A

Continuous Current Supply

120 amperes at 500 VAC

Rated Input Current

10 A

Operating Input Voltage Range

530-670 VDC

Display Type

7-Segment Display

Safety Features

Various Watchdogs
