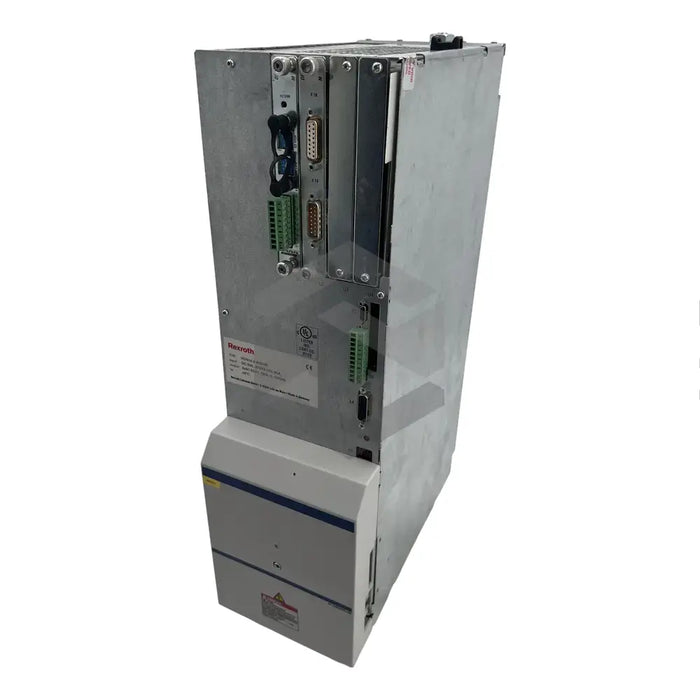

C image of HDS04.2-W200N-HS09-01-FW | Main (Front Left)

HDS04.2-W200N-HS09-01-FW

by Bosch Rexroth Indramat
$15,415.17 - $16,956.69
$15,415.17
$15,415.17 - $16,956.69
$15,415.17

In Stock, Ships 1 - 3 Days

The HDS04.2-W200N-HS09-01-FW is a 2nd generation drive controller, developed by Bosch Rexroth Indramat. This part of the HDS series is marked out by being robust, long-lasting, and reliable with superior performance. This specific variant is a 4-line controller featuring a built-in fan that allows it to run optimally without overheating. Rated at 200 A, it belongs to the DIAX04 controller family with a SERCOS interface and the function ID code is 01. The firmware must be purchased separately. Features of this controller include a command communication module, software module, configuration type plate, and optional plug-in modules. The software module retains the drive parameters, allowing functionality to be easily transferred if a replacement is required. An additional ARCNET coupler plug-in card can be added for use with the CLC-D control card. The permissible operating temperature ranges from 5°C to 45°C, with a maximum of 55°C with de-rated data.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Drive Controller

Model Number

HDS04.2-W200N-HS09-01-FW

Generation

2nd

Product Family

HDS

Details

4-line 2nd version controller with built-in fan

Current Rating

200 A

Controller Family

DIAX04

Interface

SERCOS

Function ID Code

01

Firmware

Purchased separately

Components

Drive controller, software module, command communication module, configuration type plate, additional plug-in modules

Operating Temperature

5°C to 45°C (rated), max. 55°C (de-rated)
