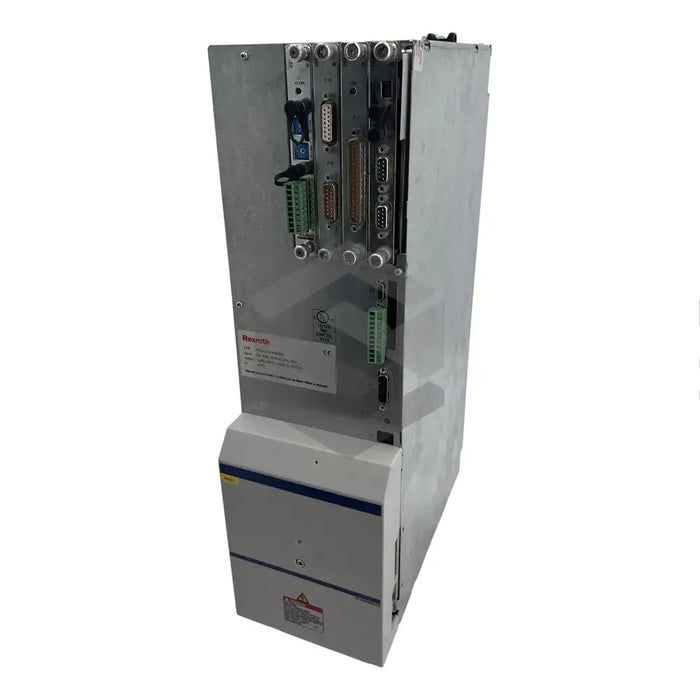

C image of HDS04.2-W200N-HS11-01-FW | Main (Front Left)

HDS04.2-W200N-HS11-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDS04.2-W200N-HS11-01-FW is a high-performance drive controller from Bosch Rexroth Indramat's HDS series. This second generation controller features one slot allotted for a software module alongside four slots for plug-in modules. The software module houses the drive’s firmware, storing important configuration data and operational guidelines. Offering a practical design, users can conveniently switch out faulty modules for operable ones. The controller gets its power through the X1 connector, utilizing a flat-ribbon cable. This model has a rated current of 200 A and is equipped with a SERCOS interface and an internal blower for optimal cooling. It sports a function ID code of 11 and a version of 1. Optimal motor/controller combinations can be determined through the selection list provided in the manual, considering key factors such as power, torque, and velocity requirements. The hardware configuration for each model is marked with a distinctive letter-number combination.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

HDS Series

Product Type

Drive Controller

Model

HDS04.2-W200N-HS11-01-FW

Module Slots

Four plug-in, one software

Power Input

Connector X1, 1 meter maximum flat-ribbon cable

Rated Current

200 A

Interface

SERCOS

Function ID code

11

Function ID Version

1

Cooling

Built-in blower

FAQ-Hardware Configuration Label

Letter/number combination

FAQ-Plug-in Module Selection

Determined by required functions

FAQ-DFF01.1M Interface Card Use

Connecting singleturn GDS 1.1 measuring systems

FAQ-CLC-D02.3M Control

Centralized control of digital drive controllers in SYNAX applications
