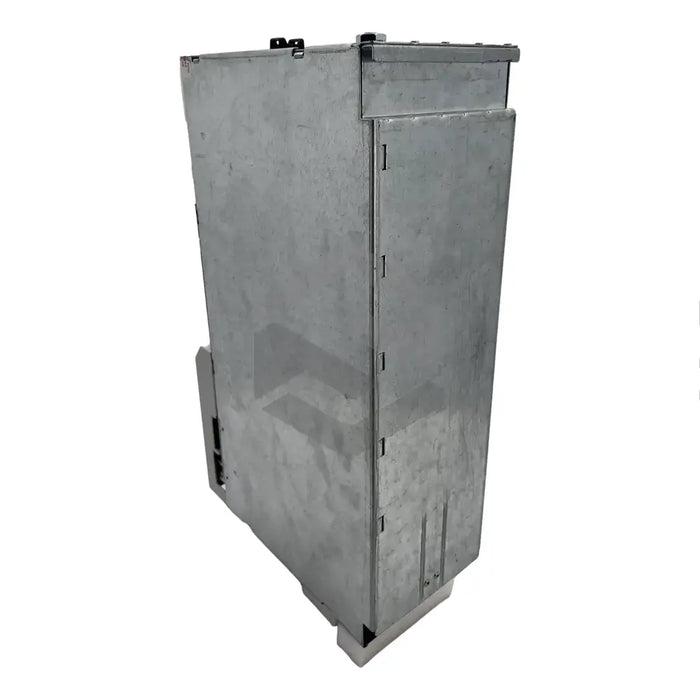

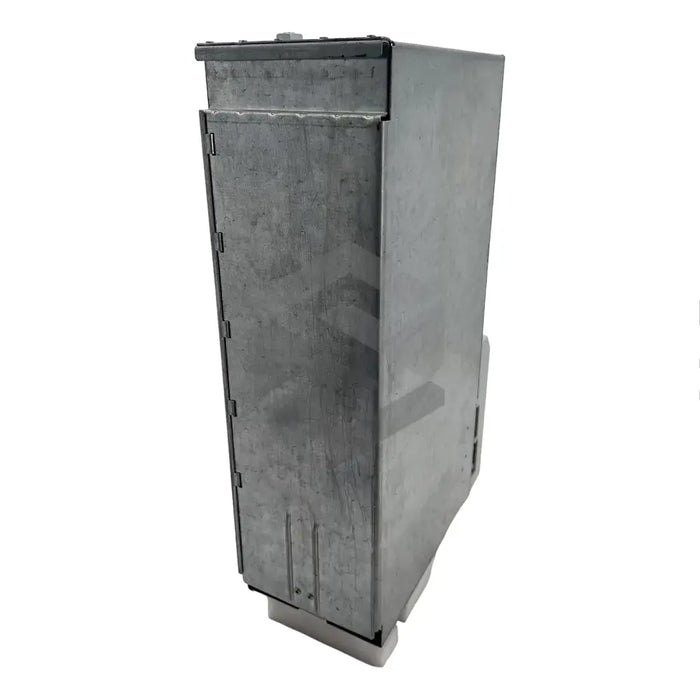

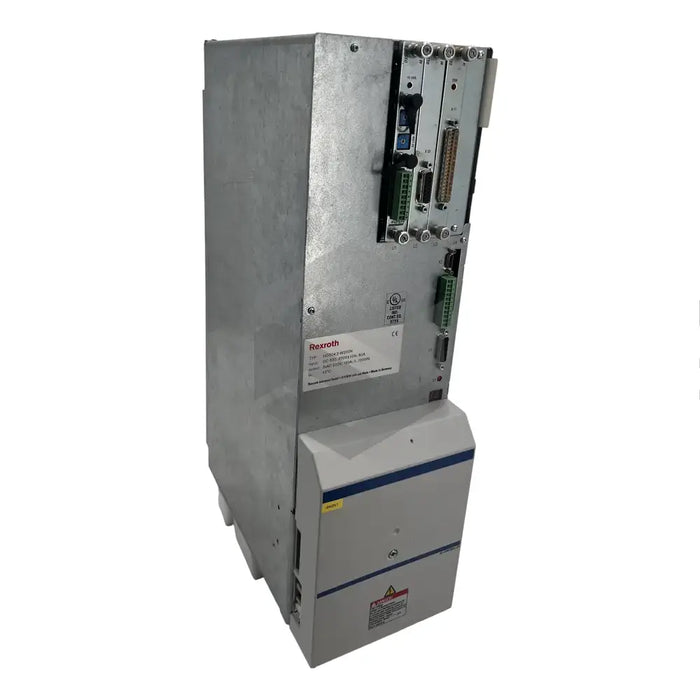

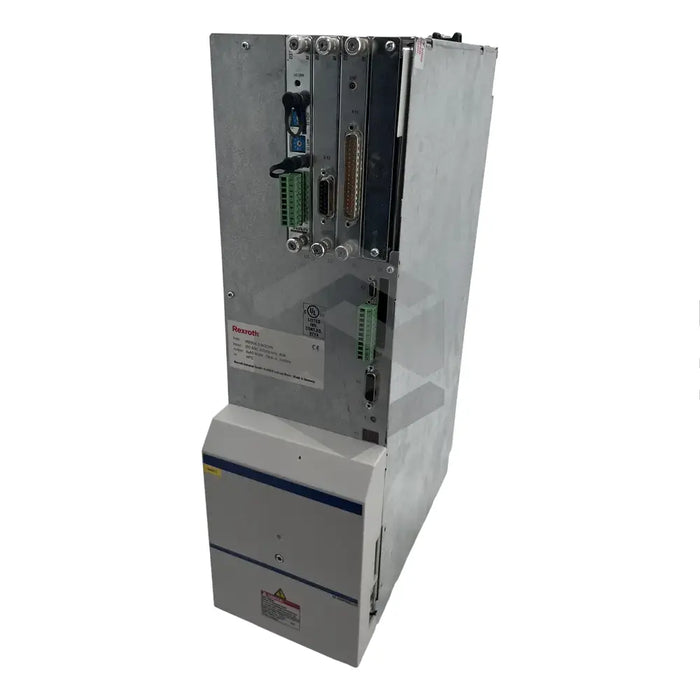

C image of HDS04.2-W200N-HS33-01-FW | Main (Front Left)

HDS04.2-W200N-HS33-01-FW

by Bosch Rexroth Indramat
$7,583.40 - $24,017.00
$7,583.40
$7,583.40 - $24,017.00
$7,583.40

In Stock, Ships 1 - 3 Days

The HDS04.2-W200N-HS33-01-FW drive controller by Bosch Rexroth Indramat is designed to work collaboratively with 2AD, MKD, 1MB, and MHD motor series, behaving as a rapid-response drive. Renowned for its versatile, modular design, it boasts a continuous current rating of 120A at 4kHz and 80A at 8kHz and can perform up to a maximum ambient temperature of 55°C under derated data. Complying with IEC 68-2-36 specifications, it has a spectral acceleration density amplitude of 0.01g2/Hz. To operate above installation elevations of 2000m, the device requires external voltage regulation components. Apart from adhering to strict shipping, packaging and storage norms to prevent damage, the product needs to be operated under suitable ambient conditions to avoid impairment. The firmware should be ordered separately. It complies with EN 50178 specifications, is CE Certified, and cUL Listed.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

HDS04.2-W200N-HS33-01-FW

Product Group

HDS

Compatibility

2AD, MKD, 1MB and MHD series of motors

Design

Modular

Continuous current rating

120A at 4kHz and 80A at 8kHz

Maximum ambient temperature

55°C with derated data

Spectral acceleration density amplitude

0.01g2/Hz (IEC 68-2-36 specifications)

Shipping

Available to any address via FedEx

Elevation

Requires additional voltage regulation components over 2,000m

Storage

Needs conducive packaging materials. Shock-free, dust-free and dry place

Firmware

Ordered Separately

Certifications

CE Certified and cUL Listed

Insulation and High-voltage Check

EN 50178 specifications

X1 Connector

30 pins, uses a flat ribbon cable

Required Distance

At least 100mm between signal and power cables

Cable Isolation

Metal cable duct.
