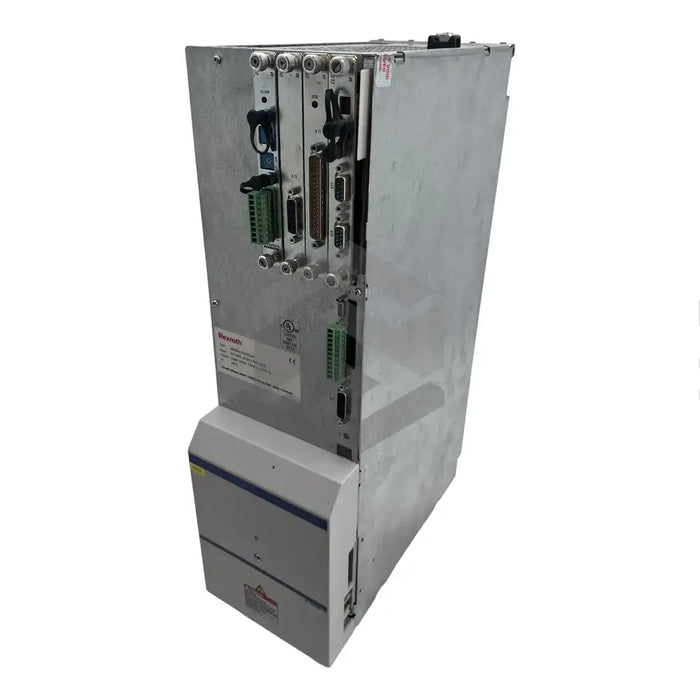

C image of HDS04.2-W200N-HS34-01-FW | Main (Front Left)

HDS04.2-W200N-HS34-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDS04.2-W200N-HS34-01-FW, crafted by globally recognized Bosch Rexroth Indramat, comes from its renowned family of Digital Intelligent Drive System (DIAX04). Offering precise control and monitoring of electrical motors, in scenarios such as handling setups, robots, printing machines, and machine tools, this model is power supplied through the DC-link voltage which endows it with a rated operating current of 200 A. The digital controller also features a varying performance capacity based on drive; at 4 kHz, the continuous current is 120A, while at 8 kHz, it decreases to 80 A. The total power loss of the unit roughly hovers around 800 W while the controller cools itself using ambient air. Weighing in at 19 kg, it must be appropriately mounted in a switch cabinet due to its IP10 protection class. This model comes integrated with different plug-in modules and interfaces, with a spatial allowance for installation at a maximum of 1000m above sea level. Remember, the firmware module needs to be ordered separately.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

HDS04.2-W200N-HS34-01-FW

Product Family

Digital intelligent drive system (DIAX04)

Electrical Connection

DC-link voltage supplied by power supply unit

Rated Current

200 A

Typical Applications

Handling systems, robots, printing machines, machine tools

Drive Frequency

4 kHz(120 A) and 8 kHz(80 A)

Power Loss

Approximately 800 W

Cooling

Ambient air

Weight

19 kg

Protection Class

IP10

Mounting

Switch Cabinet

Configuration

HDS04.2-W200N - Basic Unit, 5 slots for different plug-in modules

Interface Cards

DSS02.1M SERCOS interface, DLF01.1M for incremental measuring system, DEA04.2M digital interface, CLC-D02.3M integrated control, HSM01.1 software module

Ambient Temperature Range

+5 to +45 degree Celsius

Maximum Installation Height

1000 meters above sea level

Firmware Module

Ordered separately
