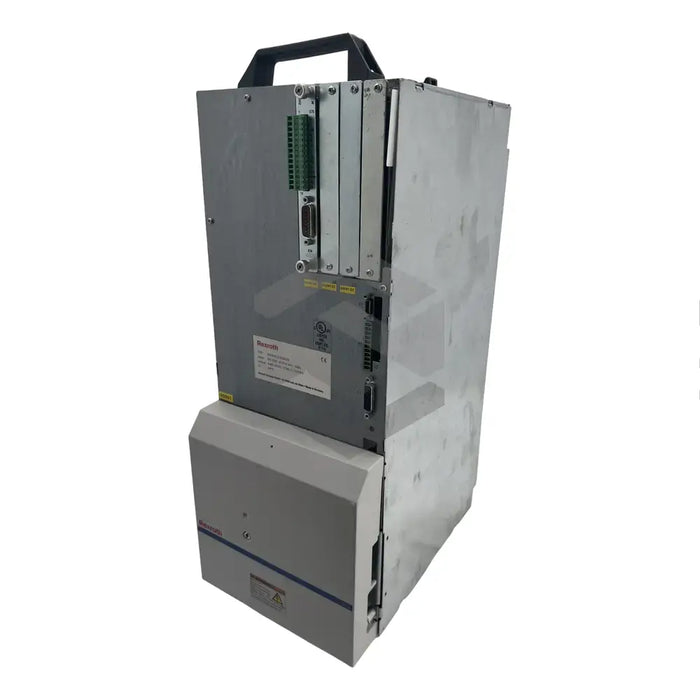

series image of HDS05.2-W300N-HA01-01-FW

HDS05.2-W300N-HA01-01-FW

by Bosch Rexroth Indramat
Request a quote
The HDS05.2-W300N-HA01-01-FW manufactured by Bosch Rexroth Indramat is a key drive controller from the DIAX04 family. Notably, it can be used with MHD and MKD motors, and it can be connected to an HVR or HVE supply module, which facilitates the controller's power and signal voltages. The product bears a version code of 2 and a line code of 5, and is intended for installation solely in commercial machinery. Operating with a rated current of 300A, it's paramount to isolate the drive power connection through an emergency stop function to shore up safety measures. Ideal for both multiple-axis or single-axis control applications, it requires programming prior to use. With a sustained power loss of 1,200W, it can function under ambient temperature up to 55°C. The firmware needs to be separately ordered and it supports one plugin module or interface card. It uses an analog interface DAE02.1M for command communication and can be internationally transported.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: DIAX04
  • Line Code: 5
  • Version Code: 2
  • Compatible Motors: MHD and MKD series
  • Power and Signal Supplier: HVR or HVE supply module
  • Product Use: Commercial machinery only
  • Rated Current: 300A
  • Drive Power Connectivity: Isolated using an emergency stop circuit
  • Control Applicability: Multiple-axis or single-axis control and drive applications
  • Product Series: HDS
  • Power Loss: 1,200W with continuous current
  • Maximum Ambient Temperature: 55°C
  • Product Structure: Modular
  • Interface Type: Analog DAE02.1M
  • Number of Plug-in Modules: One at a time
  • Transport Availability: Global through international logistics network.
