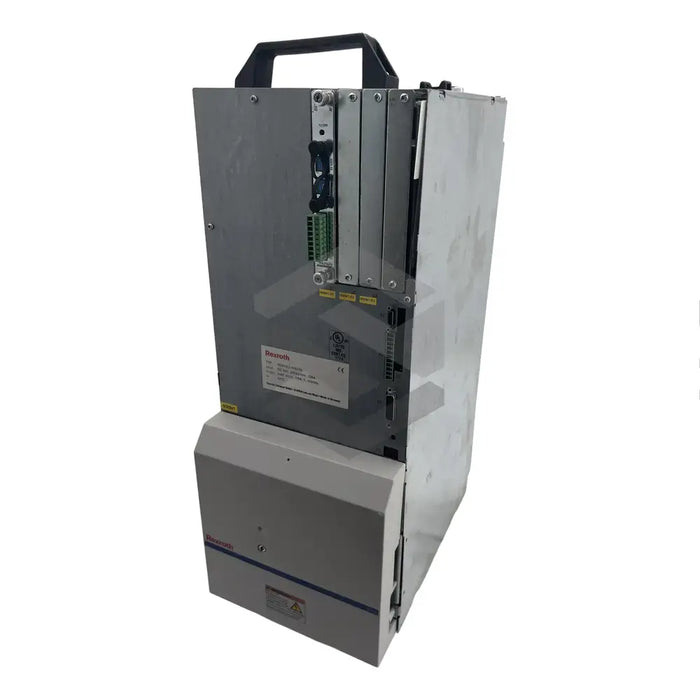

C image of HDS05.2-W300N-HS12-01-FW | Main (Front Left)

HDS05.2-W300N-HS12-01-FW

by Bosch Rexroth Indramat
$5,305.06 - $23,171.61
$5,305.06
$5,305.06 - $23,171.61
$5,305.06

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat HDS05.2-W300N-HS12-01-FW is a drive controller belonging to the HDS series featuring two identification type-plates. The product setup should distribute axes uniformly around the power supply, prioritizing placement of high-current, high-power drives near the supply unit. The unit should be securely fastened on mounting rails using M5 screws. Temperature parameters for transportation and storage range from -30°C to +85°C. To mitigate potential shocks or vibrations during transit, shock-absorbing packaging is recommended. Electrostatic-sensitive components should also be stored and transported with conducive materials. The device runs on a continuous current rating of 100A at 8kHz and consumes 55W power for signal processing. This product can be delivered worldwide via trusted carriers. Lastly, the module features a function ID code 12, version 1, and connections to the motor and control are made at the unit’s bottom using an optic-fibre cable and a shielded power cable respectively.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

HDS

Product Code

HDS05.2-W300N-HS12-01-FW

Identification Plate Locations

Top of the device, Next to the plug-in modules

Axes Distribution Requirement

Uniform on either side of power supply

Mounting Requirement

M5 screws in at least alternate slots

Transport and Storage Temp Range

-30°C to +85°C

Transport Recommendation

Shock-absorbing transports for excessive vibrations/shocks conditions

Packaging Recommendation

Conducive packaging for electrostatic-discharge-prone components

Continuous Current Rating

100A at 8kHz

Power Consumption for Signal Processing

55W

Function ID Code

12

Version of Function ID

1

Motor Connection Location

Bottom of controller

Control Connection Type

Optic-fiber cable

Motor Power Cable Requirement

Shielded
