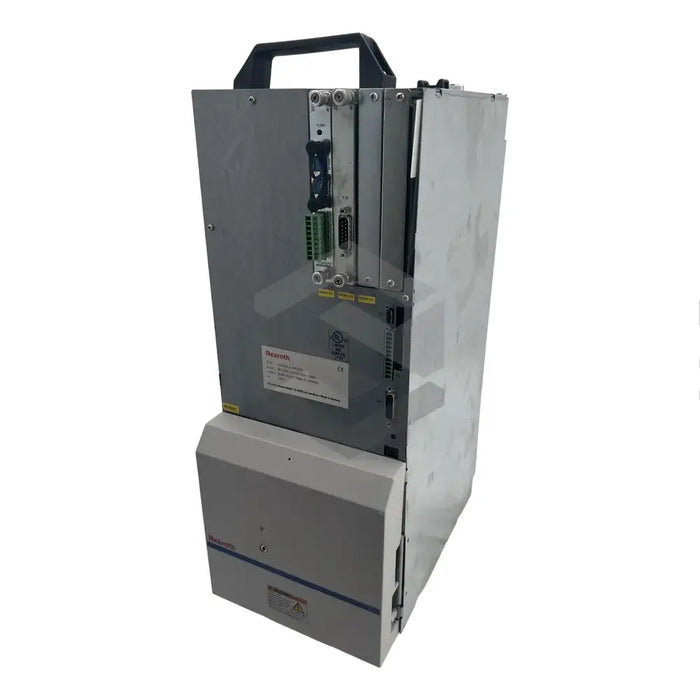

C image of HDS05.2-W300N-HS37-01-FW | Main (Front Left)

HDS05.2-W300N-HS37-01-FW

by Bosch Rexroth Indramat
$10,838.21 - $10,838.21
$10,838.21
$10,838.21 - $10,838.21
$10,838.21

In Stock, Ships 1 - 3 Days

The HDS05.2-W300N-HS37-01-FW is a Bosch Rexroth Indramat drive controller renowned for its high-speed motion control accomplished via a Serial Real-time Communications System (SERCOS). It's designed to be versatile, featuring interchangeable software modules for specific functions. This 25 kg unit has a peak and rated current of 300 A. Its build conforms to insulation class C and IP 10 degree of protection standards, making it suitable for single and multi-axis drive control applications in environments within +5 oC – 45 oC and 0m - 1000m ASL. The unit operates at a switching frequency rating of 4 Kilohertz, with a continuous current of 175 A, and a power loss at Icont of 1200 Watts. Its cooling system is an internally mounted blower and it can maintain performance at reduced data in a maximum atmospheric temperature of 55 oC. Storage and transportation should be carefully conducted to mitigate shock and potential electrostatic damage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

05

Version

2

Weight

25 kilograms

Rated Current

300 A

Peak Current

300 A

Communication System

SERCOS

Functionality

configurable

Transferable Variables

via DSS02.1M software plug-in module

Insulation Class

C

Protection Level

IP 10

Usage

single and multi-axis drive control applications

Operating Temperature Range

+5 oC – 45 oC

Installation Elevation Range

0m - 1000m ASL

Switch Frequency Rating

4 Kilohertz

Icont (at 4 KHz)

175 A

Icont (at 8 KHz)

100 A

Pv (Power Loss at Icont)

1200 Watts

Cooling Method

forced convection with internally mounted blower

Max Temperature at Derated Data

55 oC

Storage Conditions

shock-free, protected against electrostatic discharge.
