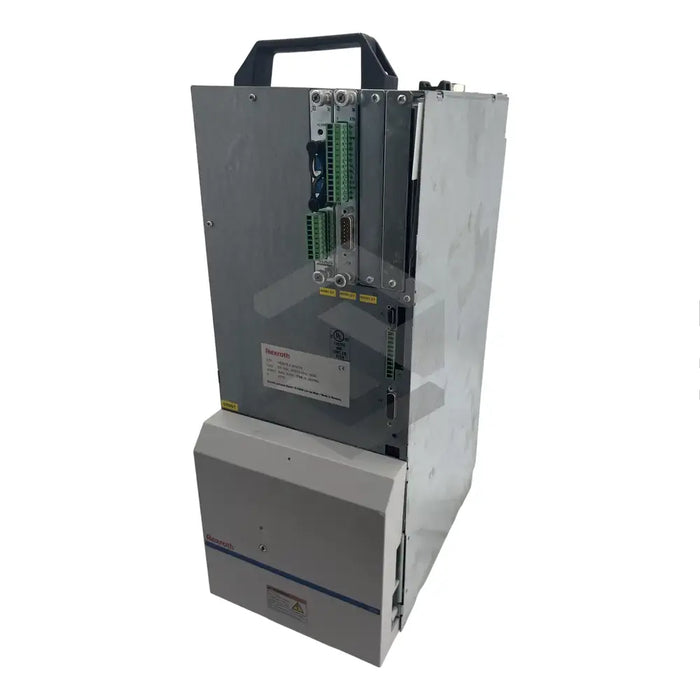

C image of HDS05.2-W300N-HS56-01-FW | Main (Front Left)

HDS05.2-W300N-HS56-01-FW

by Bosch Rexroth Indramat
$9,072.35 - $9,072.35
$9,072.35
$9,072.35 - $9,072.35
$9,072.35

In Stock, Ships 1 - 3 Days

The HDS05.2-W300N-HS56-01-FW is a drive controller, created by Bosch Rexroth Indramat, specifically designed to oversee and operate AC motors in industrial servo systems. This device, integrated with cutting-edge characteristics, thrives in strenuous industrial conditions while performing optimally over extended periods. It belongs to the DIAX04 drive series which enables its compatibility with various types of industrial AC motors, such as 1MB, 2AD, and MKD series. The controller employs a self-diagnostic feature that detects operational errors and displays appropriate error messages. It exhibits a modular design for easy part replacement without reconfiguration needs. Its operation necessitates a connection to the HVE or HVR supply module and optionally a brake resistor to safeguard the power circuit during motor braking. It uses a rated current of 300 Amperes and a continuous current of 100 Amperes per 175 Axis. Given its heat generation, strategic installation for efficient ventilation is required.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

HDS05.2-W300N-HS56-01-FW

Drive Series

DIAX04

Compatibility

1MB, 2AD, and MKD motor series

Error Reporting

Self-diagnostic with H1 status display

Design

Modular

Supply Module Compatibility

HVE or HVR

Additional Features

Optional connection to brake resistor

Rated Current

300 Amperes

Continuous Current

100 Amperes per 175 Axis

Testing Standards

DIN VDE 0160

Connection

Optic fibre cable (to be ordered separately)

Heat Generation

Requires strategic installation for air ventilation
