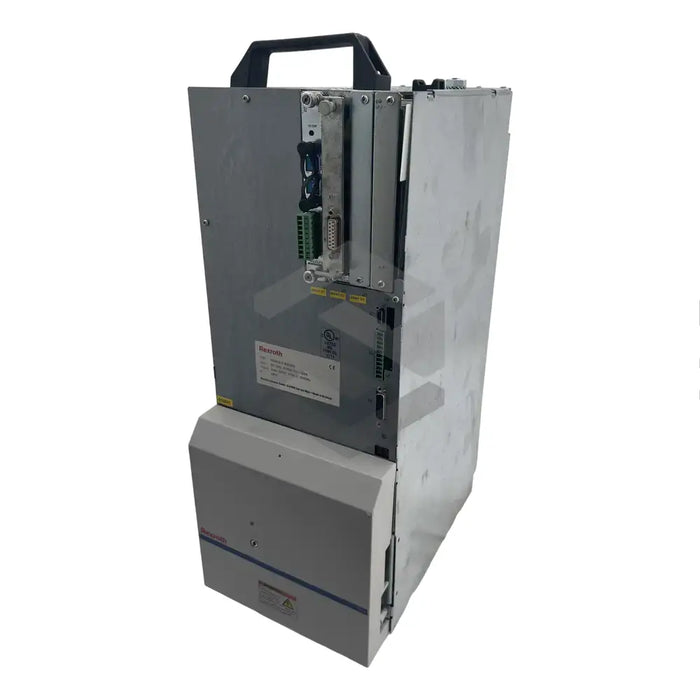

C image of HDS05.2-W300N-HS76-01-FW | Main (Front Left)

HDS05.2-W300N-HS76-01-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The HDS05.2-W300N-HS76-01-FW drive controller is a product from Bosch Rexroth Indramat, an expert in designing drive controllers for industrial automation. This model is engineered to control the speed, position, and torque of assembly line motors, particularly the MHD, MKD, 2AD, and 1 MB variants. It boasts a modular architecture, allowing enhancements via retrofitting of subsidiary modules and has a slot for additional plug-in cards, such as the ANALOG DAE02.1M or SERCOS DSS02.1M interface cards responsible for command and communication. Outfitted with the HSM firmware module, it stores drive parameters and the operating system. Basic features include AC motors, configuration type plates, motor power and feedback cables, a contact guard, and the HDS controller. It can work alongside the GDS 1.1 measuring system and the DFF01.1M module, or with the DAG01.2M card for SSI signal output. This 55W rated, three-phase device resilient to 42000 A short circuits, supports a voltage input between 530 to 670 V and delivers 500 V output. With a maximum output frequency of 800 Hz and capable of interfacing multiple CLCs for master axes using the DAQ02 card, it's a versatile industrial tool.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Drive Controller

Model

HDS05.2-W300N-HS76-01-FW

Compatible Motors

MHD, MKD, 2AD, 1 MB

Construction

Module-Based

Additional Plug-in Capability

Yes

Supported Interface Cards

ANALOG DAE02.1M, SERCOS DSS02.1M

Firmware Module

HSM

Basic Components

AC motors, Motor power cable, Configuration type plates, Motor feedback cable, Contact guard, HDS controller

Compatible Measuring System

GDS 1.1 with DFF01.1M module

Additional Card for SSI signal output

DAG01.2M

Rated Power

55W

Short Circuit Rating

42000 A

Rated Input Voltage

530V-670V

Output Phases

Three

Output Voltage

500V

Power Dissipation

800V

Maximum Frequency Output

800Hz

Multi-CLC Connection Capability

Yes

Card for Multiple CLC Connections

DAQ02
