HLC01.1C-02M4-A-007-NNNN

Original price $1,132.75 - Original price $2,411.18
Original price
$1,132.75
$1,132.75 - $2,411.18
Current price $1,132.75

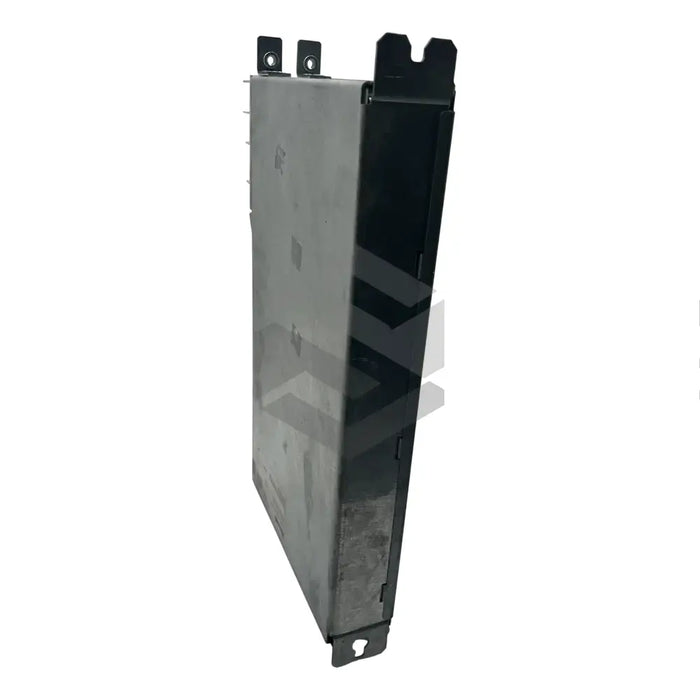

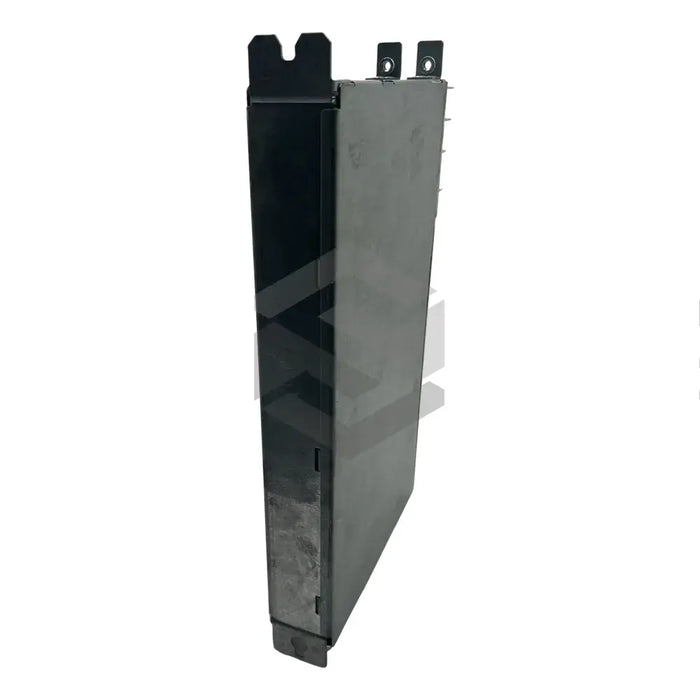

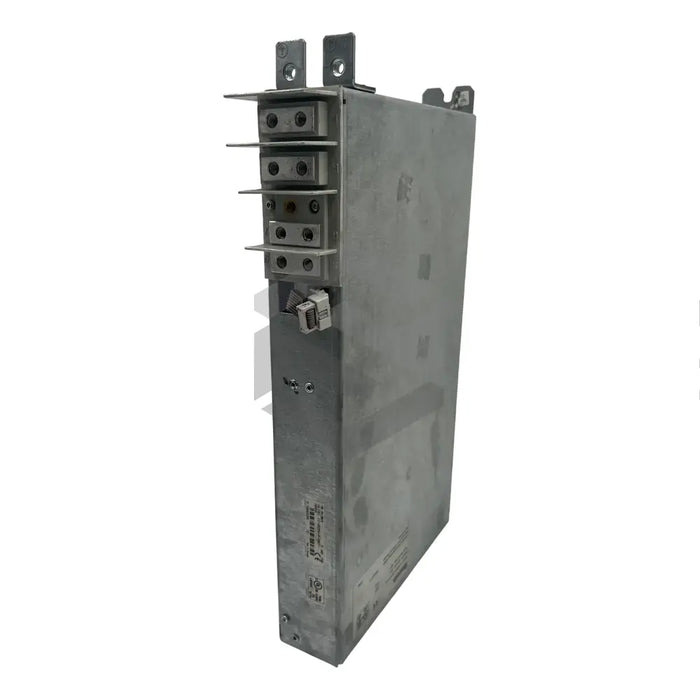

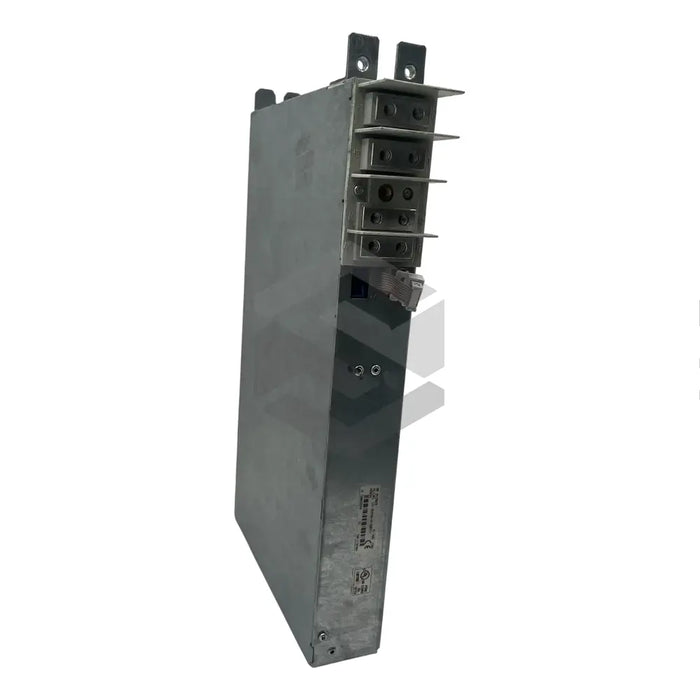

The HLC01.1C-02M4-A-007-NNNN, manufactured by Bosch Rexroth Indramat, is a DC capacitor and part of the IndraDrive drive systems. It has an input voltage of 245 – 750 DC V and a 2.4mF nominal DC bus capacitance, with an insulation resistance exceeding 25MOhm. Cooling is achieved through natural convection while power dissipation stands at 24W. It functions optimally at an ambient temperature of 55 degrees. Incorporated within the design is an X1 Bus module that permits the transfer of data between components as part of a looped configuration. This DC capacitor must be fitted adjacent to the drive controller if it outputs the highest DC continuous power. Its weight is approximately 4.3kg, offering a 700V DC bus nominal voltage within an IP 20 protection category. It is designed primarily for less frequent industrial use, with a recommended rate of under 30 cycles per minute.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Product Code


HLC01.1C-02M4-A-007-NNNN

Product Type


DC Capacitor

Input Voltage


245 – 750 DC V

Nominal DC Bus Capacitance


2.4mF

Discharge Time


200S from 820V to 50V

Insulation Resistance


>25MOhm

Cooling Method


Natural Convection

Power Dissipation


24W

Operating Temperature


55 degrees

Auxiliary Module


X1 Bus

Weight


4.3kg

Mounting Clearance Requirement


80mm

DC Bus Nominal Voltage


700V

Protection Category


IP 20

Mounting Depth


300mm

Cycles Per Minute


Less than 30
