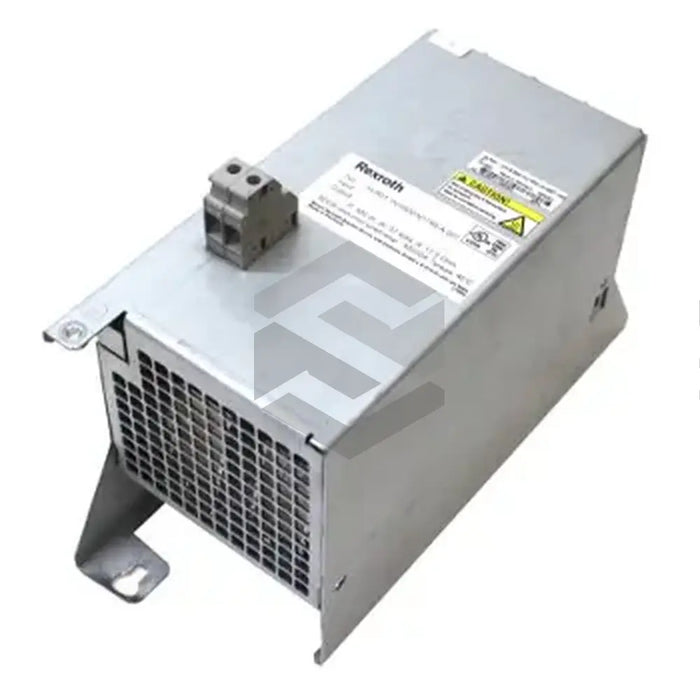

manufacturer image of HLR01.1N-03K8-N40R3-A-007-NNNN

HLR01.1N-03K8-N40R3-A-007-NNNN

by Bosch Rexroth Indramat
Request a quote
The HLR01.1N-03K8-N40R3-A-007-NNNN brake resistor is a highly efficient and portable solution for heavy-duty machinery and motors from Bosch Rexroth Indramat. Designed to handle high inertia loads and instantly stop or decelerate motors running at high speeds, this sturdy unit features an energy consumption of 300 kW and a maximum braking power of 18 kW. Despite its power, it is relatively lightweight at 9.5 kg, and its compact dimensions (490mm width, 270mm height, 300mm depth) make for easy installation. The brake resistor uses the converter's extracted airflow for cooling during operation and offers a braking power duration of 3.8 kW, 40.3 Ω resistance, and a 120-second cycle time. It also safeguards against overvoltage in the HSC03 converter by managing the intermediate circuit voltage. Overall, the HLR01.1N-03K8-N40R3-A-007-NNNN is customized to optimize motion control applications.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: HLR01.1N-03K8-N40R3-A-007-NNNN
  • Type: Brake Resistor
  • Energy Consumption: 300 kWs
  • Maximum Braking Power: 18 kW
  • Dimensions: 490mm(width) x 270mm(height) x 300mm(depth)
  • Weight: 9.5 kg
  • Installation: Possible above an HSC03 converter
  • Cooling Mechanism: Uses the converters extracted airflow
  • Braking Power Duration: 3.8 kW
  • Resistance: 40.3 Ω
  • Time Cycle: 120 s
  • ON Time: 16.67 seconds
  • Function: Prevents overvoltage fault in the HSC03 converter
