HLR01.IN-17K0-N05R1-A-007-NNNN

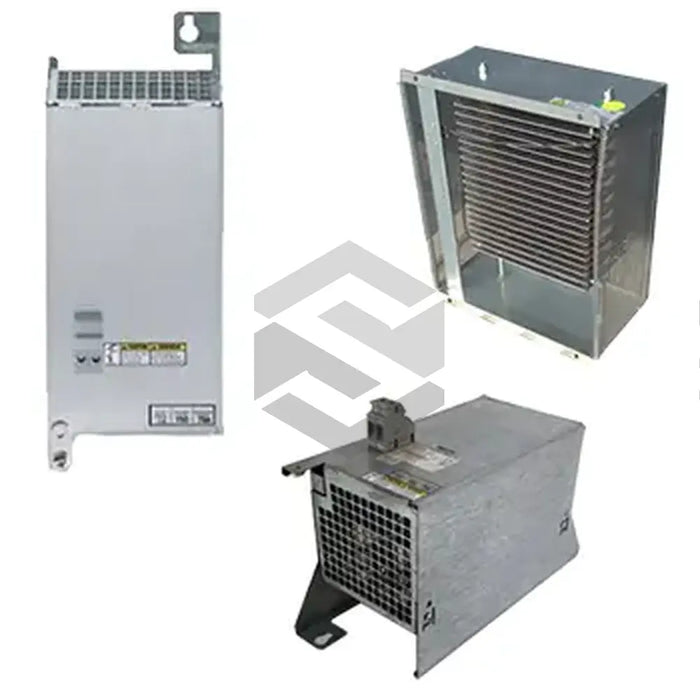

The Bosch Rexroth Indramat HLR01.IN-17K0-N05R1-A-007-NNNN is a robust module in the HLR Brake Resistors series designed to deliver precise energy dissipation in industrial automation systems. Featuring an input voltage range of 100-240 VAC and 2 CAN interfaces, this brake resistor is engineered for seamless integration into modern drive assemblies. Its primary function is to safely absorb and dissipate braking energy generated by servo and vector drives, ensuring stable operation and preventing system overheating during dynamic deceleration cycles.
In its technical composition, the HLR01.IN-17K0-N05R1-A-007-NNNN offers a continuous power rating of 17 kW, capable of handling prolonged energy loads without thermal compromise. Under peak conditions, it achieves a maximum braking power of 117 kW, effectively safeguarding drive components during high-energy stops. The unit operates on a DC bus voltage of 700 V, which aligns with high-voltage industrial environments, and maintains a compact footprint of 1000 mm (W) x 270 mm (H) x 490 mm (D) with a total mass of 30 kg. These specifications underscore its high power density and reliable thermal performance in confined control cabinets.
Beyond raw power handling, this module boasts full electrical isolation and built-in network capability, facilitating safe, interference-free operation in complex control networks. Mounting is simplified through its screw-in module design (order TB712 terminal block separately), while low power consumption of 14.5 W minimizes parasitic losses. The sturdy construction resists vibration and mechanical stress, enhancing longevity in harsh industrial settings. By integrating this brake resistor, engineers benefit from improved system efficiency, reduced maintenance downtime, and enhanced safety, ultimately contributing to optimized throughput and reliability in automated production lines.
