HMD01.1N-W0012-A-07-NNNN

Original price $2,593.25 - Original price $4,775.95
Original price
$2,593.25
$2,593.25 - $4,775.95
Current price $2,593.25

Available, Shipping Varies

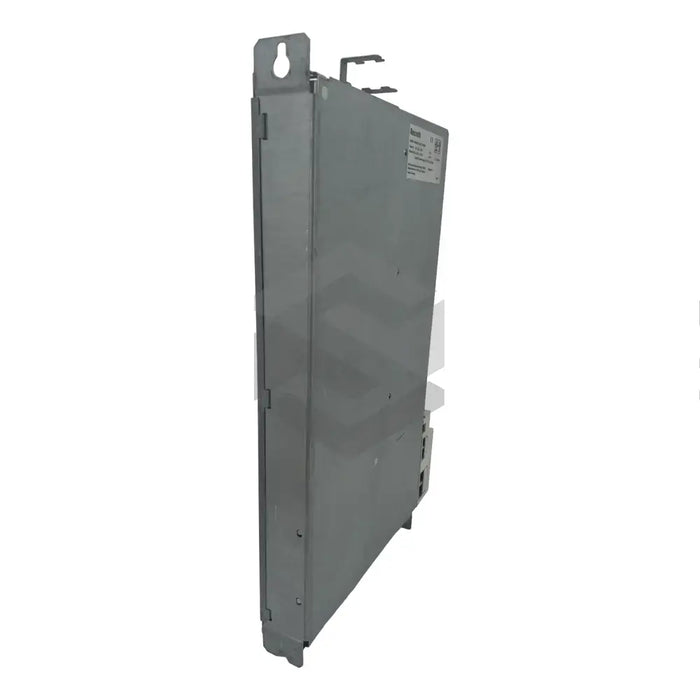

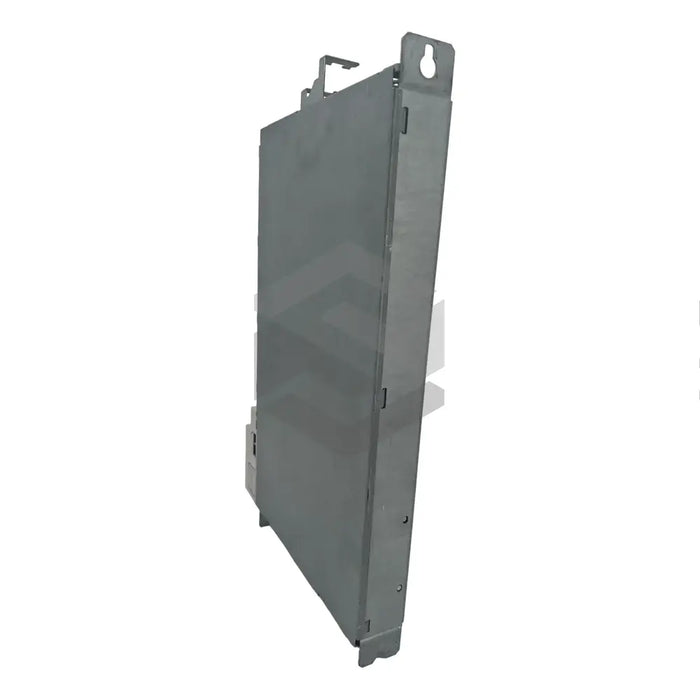

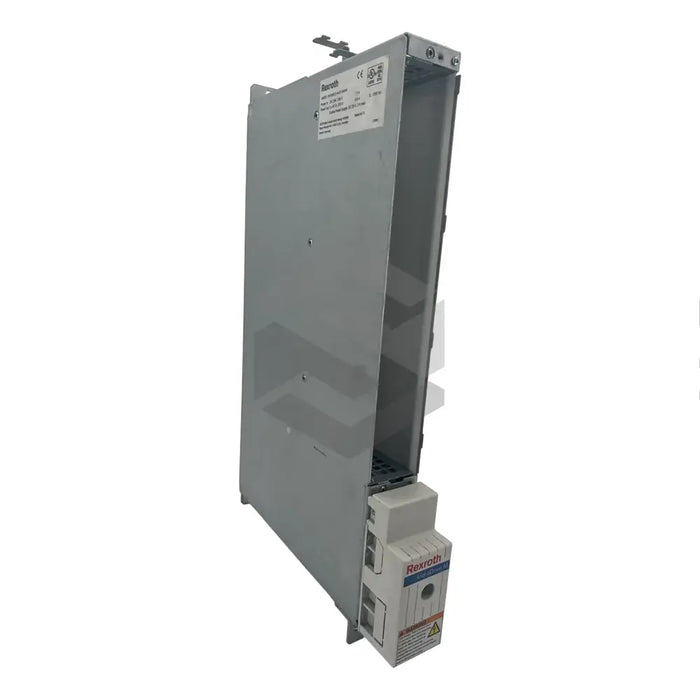

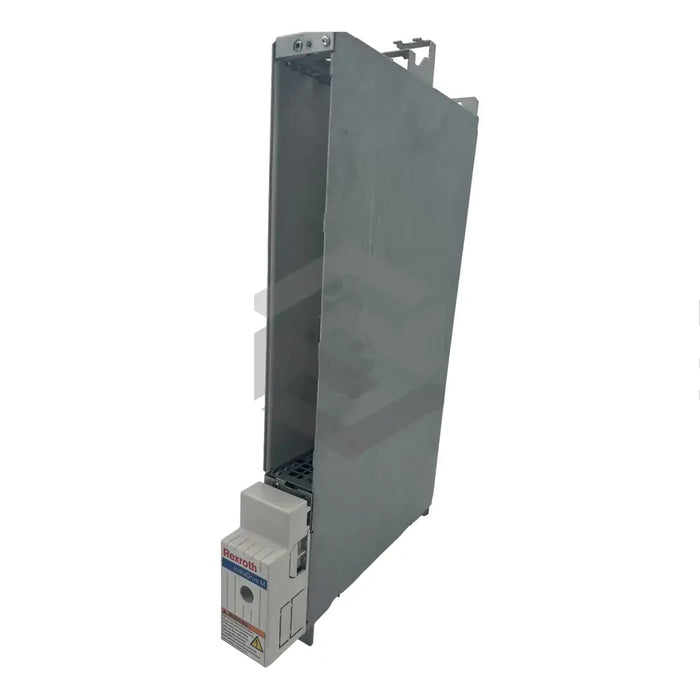

The Bosch Rexroth HMD01.1N-W0012-A-07-NNNN is an accessory power module for the company's drive controllers, specifically from the HMD01 series. The module has a line code of 1 and a design code of 1 and is meant to only be accessed half an hour after power off to allow full discharge of live capacitors. It features a DC bus voltage range of 254V to 750V, cooling through an integrated blower, and a type plate listing detailed device information. The module is UL Listed and CSA Certified, and it measures 440 x 262 x 50 mm. With two coded inverter outputs, the device doesn't determine the motor terminal load. The module, weighing only 5.52 kg, has dual functionality, with a wear-free electronic contact and a 1.5A per axis current-carrying capacity. Its effective current rating is 12A and DC bus nominal voltage rating is 700VDC and is compatible with the IndraDrive M series of drive controllers.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Type


HMD01.1N-W0012-A-07-NNNN

Manufacturer


Bosch Rexroth

Product Series


HMD01

Line Code


1

Design Code


1

DC bus voltage


254V - 750V

Cooling Method


Internal Air Circulation

Size


440 x 262 x 50 mm

Compatible Equipment


HMV DC power supply unit

Number of Inverter Outputs


2

Current-Carrying Capacity


1.5A per axis

Effective Current Rating


12A

DC Bus Nominal Voltage


700VDC

Control Section


Fitted Inside

Compatible Series


IndraDrive M series

Weight


5.52kg

Certifications


UL Listed and CSA Certified.
