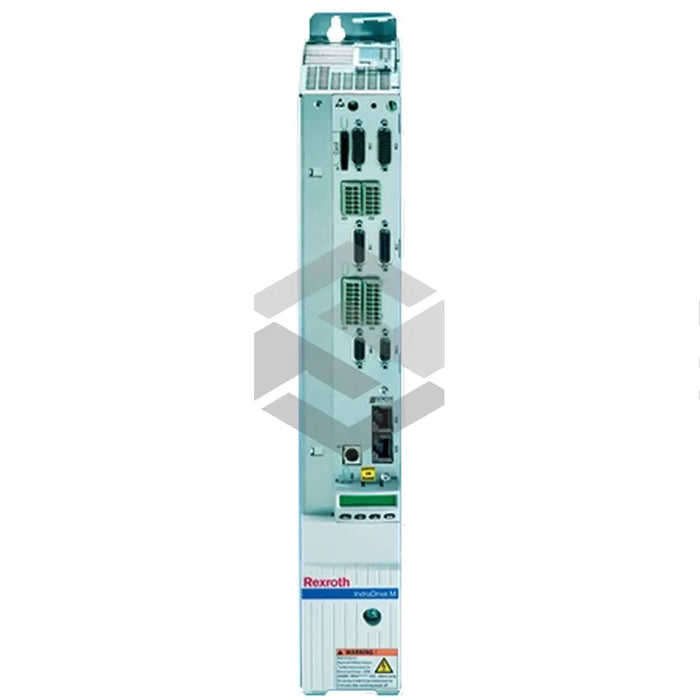

S image of HMD01.1N-W0036

HMD01.1N-W0036

by Bosch Rexroth Indramat
$3,628.25 - $5,125.55
$3,628.25
$3,628.25 - $5,125.55
$3,628.25

Available, Shipping Varies

The Bosch Rexroth HMD01.1N-W0036 is a power section module specifically designed for integration with IndraDrive M drive controllers. Known for its robust performance, it can generate an effective peak current rating of 36A at 4kHz frequency. The unit can operate in environmental temperatures up to 40°C, and its components may reach temperatures beyond 60°C during full operation. Manufactured with copper field wiring material, it exhibits flexibility in connection with multiple synchronous motor models, using manufacturer-specified cables. The product, packaged with mandatory mains choke and mains filter, is designed to process DC bus voltage limit of 900V +/-2.5%, reaching to a maximum output current of 23.9A at 8kHz. It is crucial to have the power module de-energized before working on active parts and users should verify its functionality before initial operation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Brand

Bosch Rexroth

Product Type

Power section

Model Number

HMD01.1N-W0036

Use With

HMV and other such DC power supplies

Suitable Drive Controllers

IndraDrive M range

Peak Current Rating

36A at 4kHz frequency

Surface Temperature During Operation

Over 60°C

Pollution Degree

2

Maximum Ambient Operating Temperature

40°C

Field Wiring Material

Copper

Motor Connection Capability

Several types of synchronous motors

Required Power Supply Feature

Capable of rendering the rated input current

Mandatory Accessories

mains choke and mains filter

Motor Connectors

X5.1 and X5.2

Connector Pin Coding for Inverter Outputs

Pin 2 and Pin 1 for X5.1 and X5.2 connectors respectively

Safety Precaution

De-energize before commencing work on live parts

Upper DC Bus Voltage Limit

900V +/-2.5%

Maximum Output Current Rating

23.9A at 8kHz

DC Bus Connectors

L+ and L- terminals.
