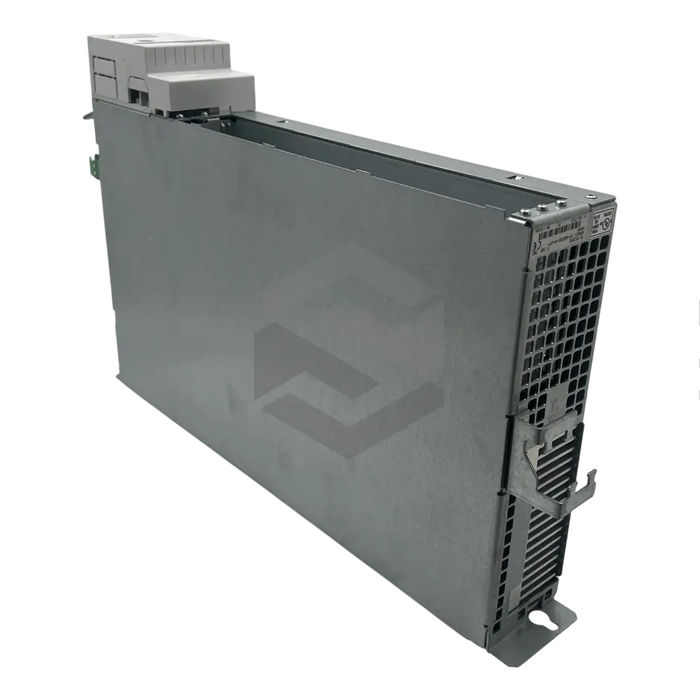

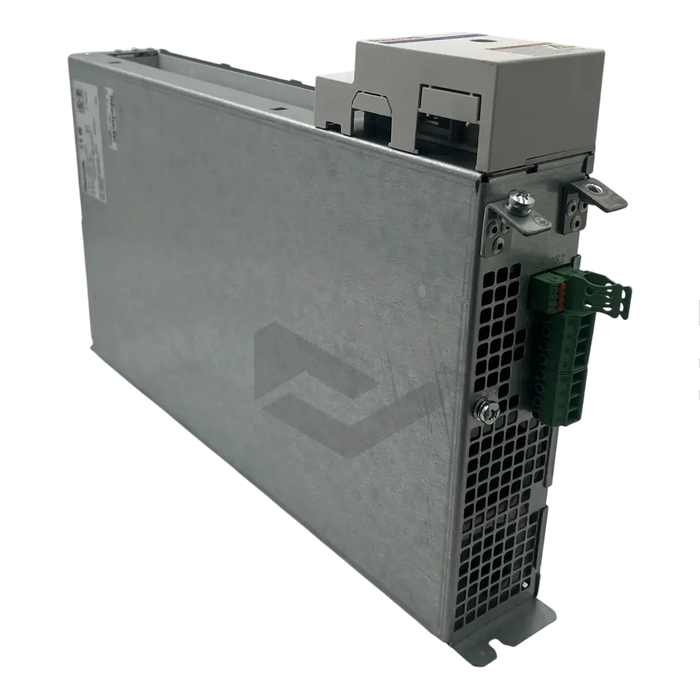

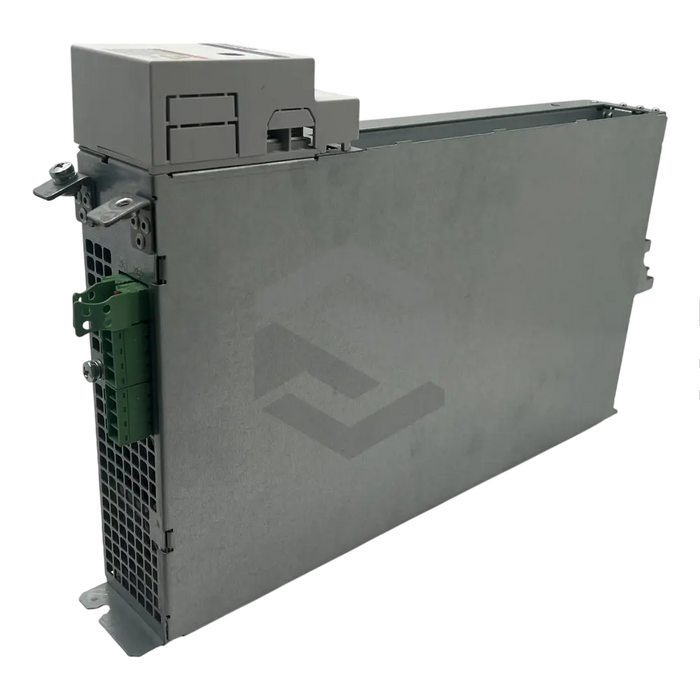

C image of HMD01.1N-W0036-A-07-NNNN | Main (Front Left)

HMD01.1N-W0036-A-07-NNNN

by Bosch Rexroth Indramat
$3,628.25 - $5,125.55
$5,125.55
$3,628.25 - $5,125.55
$5,125.55

Available, Shipping Varies

The HMD01.1N-W0036-A-07-NNNN power section by Bosch Rexroth Indramat is a module found in their HMD product group. This unit, part of the IndraDrive M series, should be in a location protected from foreign objects and liquids, and is air-cooled by a blower during operation. The device operates under a potential for high leakage current, elevated housing voltage, and may experience unpredictable movements due to defective components or improper cabling. Its prominent features include a nominal Y-capacitance of 2 * 68 nF, a continuous output current of 13A at 8kHz and 20A at 4kHz, a maximum ambient temperature of 55°C, and a DC bus voltage range of 254VDC to 750VDC. The section requires a specific clearance, uses shielded motor power cables, and includes a connector for monitoring the motor's temperature. The connection cables' cross-sectional area is between 0.5mm2 and 1.5mm2. Lastly, it has a switching frequency of 0.5Hz and a 50ms load time constant.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Power Section

Product Code

HMD01.1N-W0036-A-07-NNNN

Product Group

HMD

Fitted to

IndraDrive M series Drive Controller

Predicted Experience

High Leakage Current and High Housing Voltage possible

Cooling Method

Air Circulation via Blower

Nominal Y-Capacitance

2 * 68 nF

Continuous output current

13A at 8kHz and 20A at 4kHz

Maximum Ambient Temperature

55°C

Minimum Clearance Required

80mm top, 100mm bottom

Connection Method

Shielded Motor Power Cables

DC Bus Voltage

254VDC to 750VDC

Required Distance From Magnetic Components

At least 400mm

Connector Type

X6

Cable Cross-sectional Area

0.5mm2 min, 1.5mm2 max

Switching Frequency

0.5Hz

Load Time Constant

50ms
