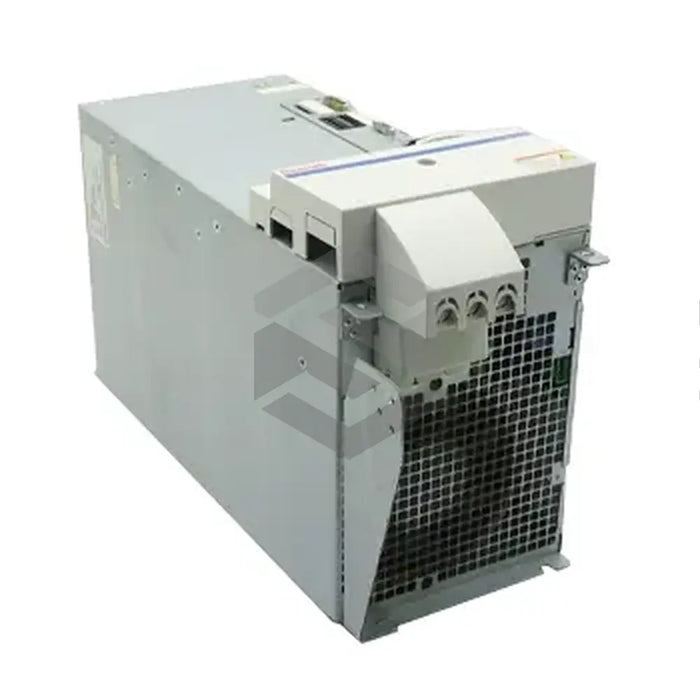

HMS01.1N-W0020
The HMS01.1N-W0020 is a power section module engineered by Bosch Rexroth Indramat, part of the HMS product series. Compatible and versatile, it’s a crucial component for the manufacturer's drive controllers. With a DC bus voltage of 254V to 750V, it can be synced with a power supply unit, bus module, and motor. The device boasts safety features such as thermal protection, with output current lowering according to the electric rotational frequency. It employs air cooling for temperature regulation, adheres to EN 61800-3 standards for EMC protection, and includes a touch guard. Rated at 12.1A for continuous current and a maximum of 20A, this single-axis inverter measures 440 x 50 x 262 mm and weighs 5.27kg. It operates at an ambient temperature range of 0°C to 55°C and is suitable for three-phase motors. The device's modular design works smoothly with the MSK series of motors and can produce a mechanical motor output of 1.1kW or 1.5HP for continuous operation over 10 minutes.
