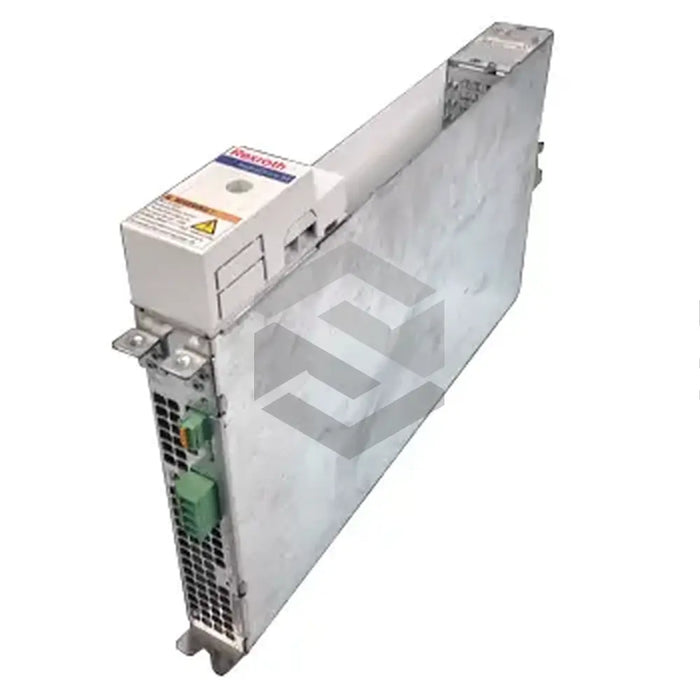

P image of HMS01.1N-W0036

HMS01.1N-W0036

by Bosch Rexroth Indramat
$1,217.07 - $8,816.00
$1,217.07
$1,217.07 - $8,816.00
$1,217.07

In Stock, Ships 1 - 3 Days

The HMS01.1N-W0036 is a power section module from the HMS series developed by Bosch Rexroth Indramat. This modular-designed model is line code 1 and design code 1. It operates in conjunction with MKS series motors using appropriate power cables, and it can be installed with a HAS05 adapter for DC bus connection. It is compliant with a contamination Degree of 2, per EN50178 standards. It comes with an in-built blower for internal air circulation and features a maximum current rating of 36A. An additional control section weighing 0.4kg can also be added, if needed. The product is a vital component of IndraDyn M drive controllers and boasts of specifications like a continuous output current rating of 13A at an 8kHz frequency, a DC bus voltage limit of 900V +/-2.5%, and nominal Y-capacitance power dissipation of 2 x 205W. The device requires a minimum clearance of 80mm at the top and 100mm at the bottom for installation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

HMS Series

Product Code

HMS01.1N-W0036

Line Code

1

Design Code

1

Power Supply

Not Included

Compatible Motor Series

MKS Motors

Adapter for DC bus connection

HAS05

Shield Connection

HAS02

Degree of Contamination

2 per EN50178

Max Current Rating

36A

Compatibility

Part of Drive Controller, supports 0.4kg control section

Max DC Bus Voltage

900V +/-2.5%

Continuous Output Current

13A at 8kHz frequency

Bus Connection

Can be connected externally

Dimensions

440 x 50 x 262 mm (H x W x D)

Nominal Y-Capacitance

2 * 68nF

Power Dissipation

2 x 205W

Mounting Clearance

Minimum 80mm at top and 100mm at bottom

Motor Connection

From Bottom.
