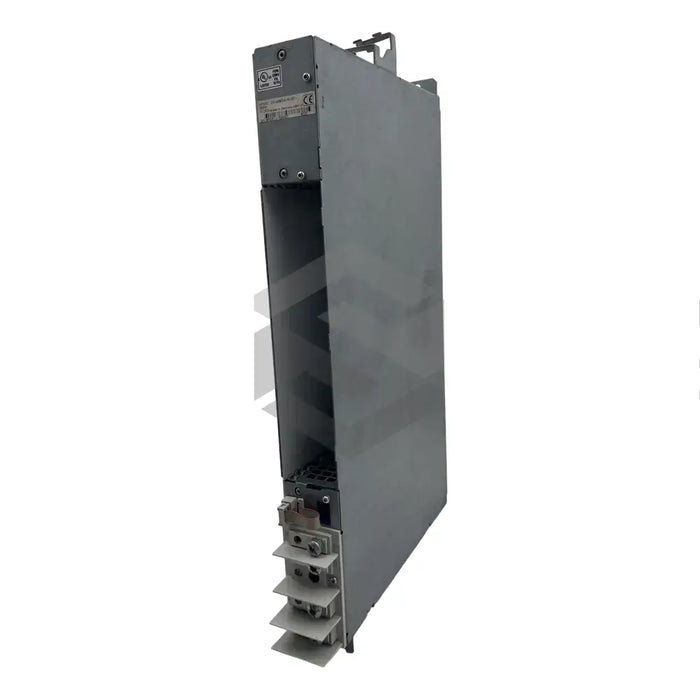

C image of HMS01.1N-W0036-A-07-NNNN | Main (Front Left)

HMS01.1N-W0036-A-07-NNNN

by Bosch Rexroth Indramat
$1,942.35 - $3,152.15
$3,152.15
$1,942.35 - $3,152.15
$3,152.15

Available, Shipping Varies

The Bosch Rexroth Indramat HMS01.1N-W0036-A-07-NNNN is a power section meant for use with drive controllers by the same manufacturer. Unlike some alternatives, it lacks an inbuilt power supply and instead connects to an external 24V source. The product features a control unit with a max current rating of 36A and a motor holding brake control and temperature monitor connection. While protecting against short circuits with a rating of 42,000Arms, it also boasts a power dissipation of 210W at continuous power and current rating. Notably, the control voltage input consumes only 15W. Sized at 440 x 262 x 50mm and weighing 5.27kg, the device is also safeguarded with an IP 20 degree of protection according to DIN EN 60529 standards. However, during operation, its surface can surpass 60°C. For safety, maintain a minimum clearance of 80mm top and 100mm bottom spacing.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

HMS01.1N-W0036-A-07-NNNN

Usage

Used with drive controllers

Power Supply

None, connects to an external 24V supply

Maximum Current Rating

36A

Connector Specifications

X6 connector feature two connections for the motor holding brake control and motor temperature monitoring

Degree of Protection

IP 20 as per DIN EN 60529 standards

Short Circuit Current Rating

42,000Arms

Power Dissipation

210W at continuous DC bus power and current rating

Rated Power Consumption

15W for the control voltage input

Size

440 x 262 x 50mm (H x T x B)

Weight

5.27kg

Operational Temperature

Surface can reach more than 60°C during operation

Clearance Distances

Minimum 80mm and 100mm at the top and bottom respectively

Plate Details

Features barcode, certification, device type, part number, serial number and hardware
