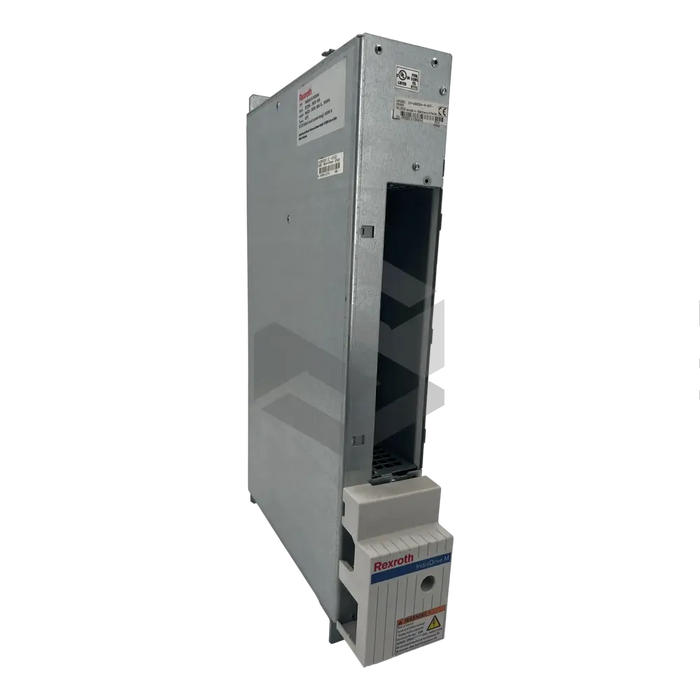

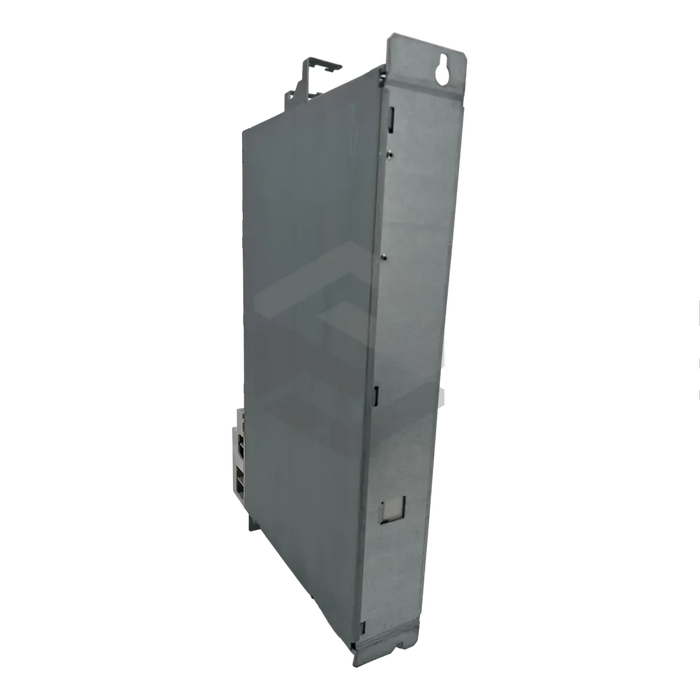

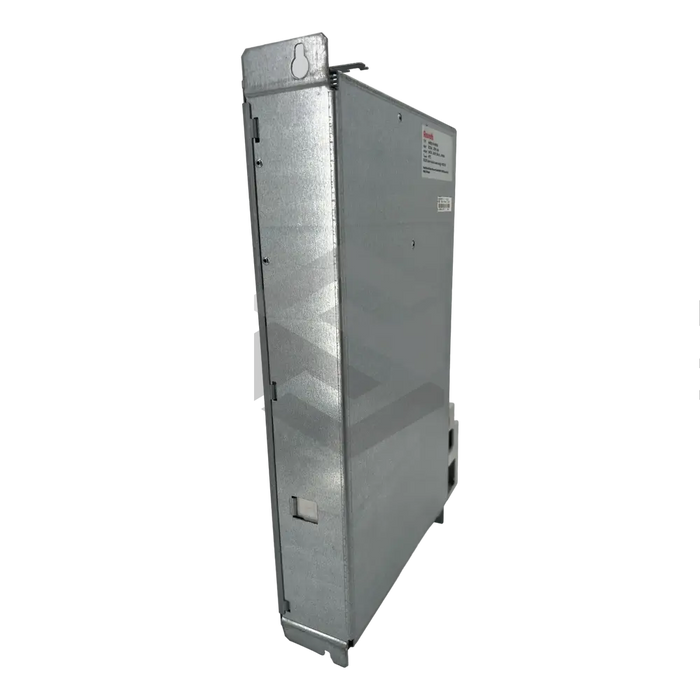

C image of HMS01.1N-W0054-A-07-NNNN | Main (Front Left)

HMS01.1N-W0054-A-07-NNNN

by Bosch Rexroth Indramat
$2,287.35 - $2,287.35
$2,287.35
$2,287.35 - $2,287.35
$2,287.35

Available, Shipping Varies

The Bosch Rexroth Indramat HMS01.1N-W0054-A-07-NNNN is a power section designed for integration within an IndraDyn M drive controller. The module requires connection to an external 24VDC power supply and facilitates the addition of a HAS05 adapter for the DC bus connection, functioning as an RS232/485 converter. To ensure efficient air circulation, the unit should be mounted with greater clearance at the bottom than the top. The device provides external branch circuit protection and utilizes the X1 connector for connection to a bus module. It possesses control voltage ranging between 0 and 24V, with the A1, A2, and A3 terminals protected against short circuits with the ground. An external 24V supply voltage can be switched to the output through an integrated contact element, allowing control over a motor holding brake. The module consumes 10W of power without the motor brake and control unit.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Power Section

Power Supply Requirement

External 24VDC

Required Power Supply Units

HMV or similar

Clearance Requirement

More at bottom than top

Adaptor Compatibility

HAS05 adaptor

Included Connection

HAS02 shield connection

Branch Circuit Protection

Required

X1 Connector Compatibility

Bus module connection using flat ribbon cable

Control Voltage

0 - 24V

Terminal Features

Short circuit protection

Screw Tightening Torque

1.5Nm - 1.8Nm

Cable Cross-Sectional Area

1.5mm2 - 16mm2

Power Connection

A1, A2, and A3 terminals to U1, V1, and W1 terminals at motor

Nominal Bus Voltage Rating

700VDC

External Voltage Switching

Possible via integrated contact element

X6 Connector Function

Control over motor holding brake

Power Consumption

10W without motor brake and control unit.
