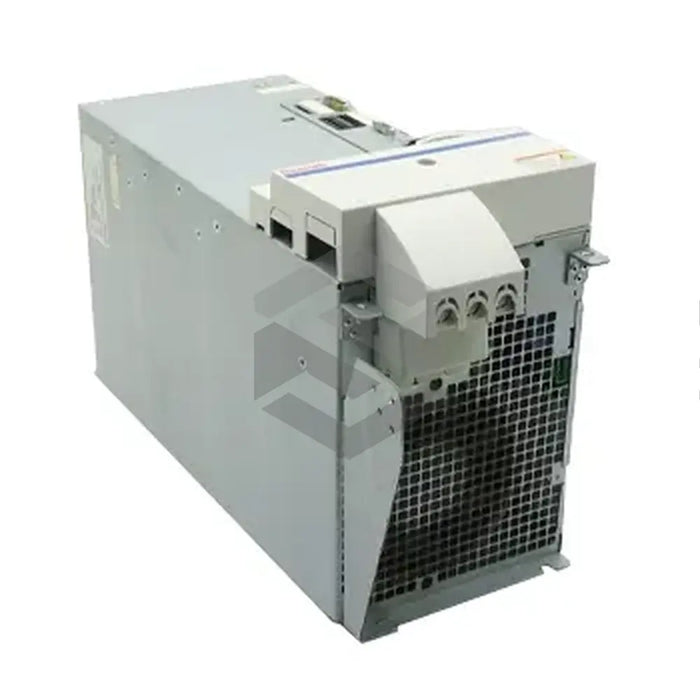

S image of HMS01.1N-W0140-A-07-NNNN

HMS01.1N-W0140-A-07-NNNN

by Bosch Rexroth Indramat
$6,744.64 - $6,744.64
$6,744.64
$6,744.64 - $6,744.64
$6,744.64

In Stock, Ships Fast

The HMS01.1N-W0140-A-07-NNNN is a drive controller produced by Bosch Rexroth Indramat, employing air-cooling for heat dissipation. This IndraDrive 3-phase controller has a maximum current rating of 140 Amps and a DC bus voltage of 0.7 kV. Meeting the IP 20 material protection standards, it offers an output frequency range from 0 to 1000 Hz and a short-circuit current rating (SCCR) of 42,000 Amps (RMS). To ensure optimal operation, the surrounding air temperature must not exceed 40 oC, while the highest permissible temperature, when operating at reduced specifications, is 55 oC. For mounting, it should be placed less than or equal to 1000 m above sea level, with top and bottom clearance of at least 80 mm respectively. With a control voltage range of 19.2 V - 28.8 V, the device adheres to UL 508 C and CSA standards.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

02

Design Type

1

Cooling Mode

Air-cooling

Phase

3-phase

Max Current Rating

140 Amps

Bus Voltage

0.7 kV

Protection Standard

IP 20

Output Frequency Range

0 to 1000 Hz

SCCR

42,000 A

Optimum Surrounding Air Temperature

40 oC

Max Permissible Air Temperature

55 oC

Mounting Altitude

0≤ m ≤ 1000 meters

Transportation and Storage Temperature Range

-30 oC to 80 oC

Minimum Tightening Torque

0.5 Nm

Pollution Degree

2

Control Voltage Range

19.2 volts - 28.8 volts

Dimensions

352 mm x 205 mm x 50 mm

Minimum Permissible Distance-Top

80 mm

Minimum Permissible Distance-Bottom

80 mm

Horizontal Spacing

No

Power Dissipation at Continuous DC Bus Power

Up to 965 Watts

Standards

UL 508 C Standards and CSA Standards
