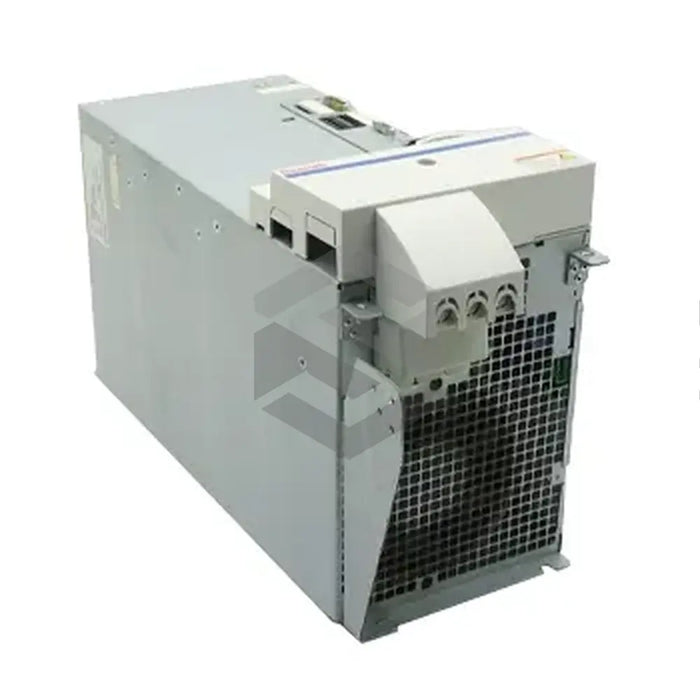

series image of HMS01.1N-W0300-A-07-NNNN

HMS01.1N-W0300-A-07-NNNN

by Bosch Rexroth Indramat
Request a quote
Bosch Rexroth Indramat's HMS01.1N-W0300-A-07-NNNN power section, a component of the esteemed IndraDrive system, regulates both synchronous and asynchronous AC motors primarily utilized in factory machinery such as machine tools and textile machines. This high-quality device sports a modular structure, offering significant utility in single-axis applications. The power section operates optimally in temperatures between 0 and 40 degrees with nominal data, stretching up to 55 degrees for reduced data, in an upright orientation ensuring optimal air inflow and outflow for forced ventilation (at a volumetric capacity of 357.00 m3/h) and effective cooling. Moreover, this unit showcases a maximum inrush of 4.2 A at 24V, a pulse width of 6 ms, and an input capacitance of 1 mF, housed within dimensions of 440 x 262 x 200 mm. Despite its robust framework of features, it retains a light weight of just 16.4 kg. Connected components include a power supply unit, motor, 24V power supply, and the Bus module.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Power Section
  • Series: HMS01.1N-W0300-A-07-NNNN
  • Design: Modular
  • Usage: Single-axis devices
  • Operation: Operates asynchronous and synchronous AC motors
  • Part of: IndraDrive system
  • Insulation Resistance: >50Mohm at DC 500 V
  • Operating Temperature Range: 0 to 40 degrees (nominal data), 0 to 55 degrees (reduced nominal data)
  • Mounting Orientation: Vertical
  • Cooling System: Forced air ventilation
  • Ventilation Volume: 357.00 m3/h
  • Switching Frequencies: Between 4 and 16 kHz
  • Minimum Distance Requirement: 80 mm (top), 1000 mm (bottom)
  • Maximum Inrush: 4.20 A at 24 V
  • Pulse Width: 6 ms
  • Input Capacitance: 1.00 mF
  • Weight: 16.44 kg
  • Dimension: 440 x 262 x 200 mm
  • Connected Components: Power supply unit, motor, 24 V power supply, Bus module.
