HMS02.1N-W0028

Original price $7,971.98 - Original price $7,971.98
Original price
$7,971.98
$7,971.98 - $7,971.98
Current price $7,971.98
In Stock, Ships 1 - 2 Days
Request a quote

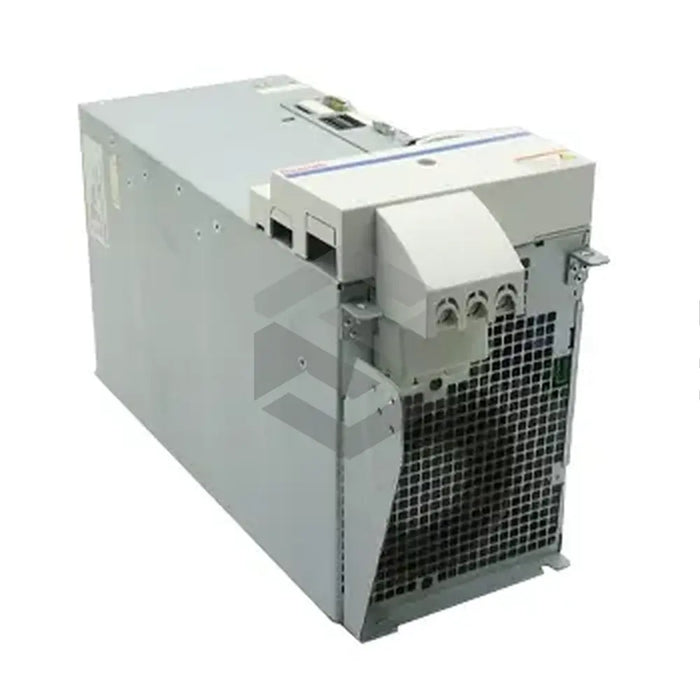

The Bosch Rexroth Indramat HMS02.1N-W0028 is a power unit designed for single-axis devices and is compatible with three-phase synchronous and asynchronous AC motors. It provides a continuous current up to 25 A and has a modular design, boasting a maximum current of 28 A. The unit uses air cooling methods, has IP 20 protection, and operates at a DC bus nominal voltage of 700 V. Additionally, it provides an output current of 15.0 A, an output voltage of 3 x AC 0 … 500 V, and has a rated input current of 18.4 A. It weighs 3.5 kg with dimensions of 352 x 205 x 50 mm. This component is suitably used in various industrial applications when accompanied by a supply unit. Installation requires a distance of 80 mm above and below the unit, allowing for the ambient temperature of the control cabinet to be maintained, preventing icing and condensation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product: HMS02.1N-W0028
  • Use: Power unit for single-axis devices
  • Motor Type: Three-phase synchronous and asynchronous AC motor
  • Design: Modular
  • Continuous Current: 25 A
  • Cooling Method: Air
  • Maximum Current: 28 A
  • Degree Protection: IP 20
  • DC Bus Nominal Voltage: 700 V
  • Output Current: 15.0 A
  • Output Voltage: 3 x AC 0 … 500 V
  • Rated Input Current: 18.4 A
  • Short Circuit Current Rating: 42000 A rms
  • Rated Input Voltage: DC 254 … 750 V
  • Weight: 3.5 kg
  • Dimensions: 352 x 205 x 50 mm
  • Insulation Resistance: >8 Mohm at DC 500 V
  • Ambient Operation Temperature: 0 to 40 degrees
  • Allowed Switching Frequency: 4 to 8 kHz
  • Forced Air Ventilation: 17 to 20 m3/h
  • Installation: Minimum distance of 80 mm above and below
  • Permissible Humidity: 5 to 95%
  • Mounting: Vertically
